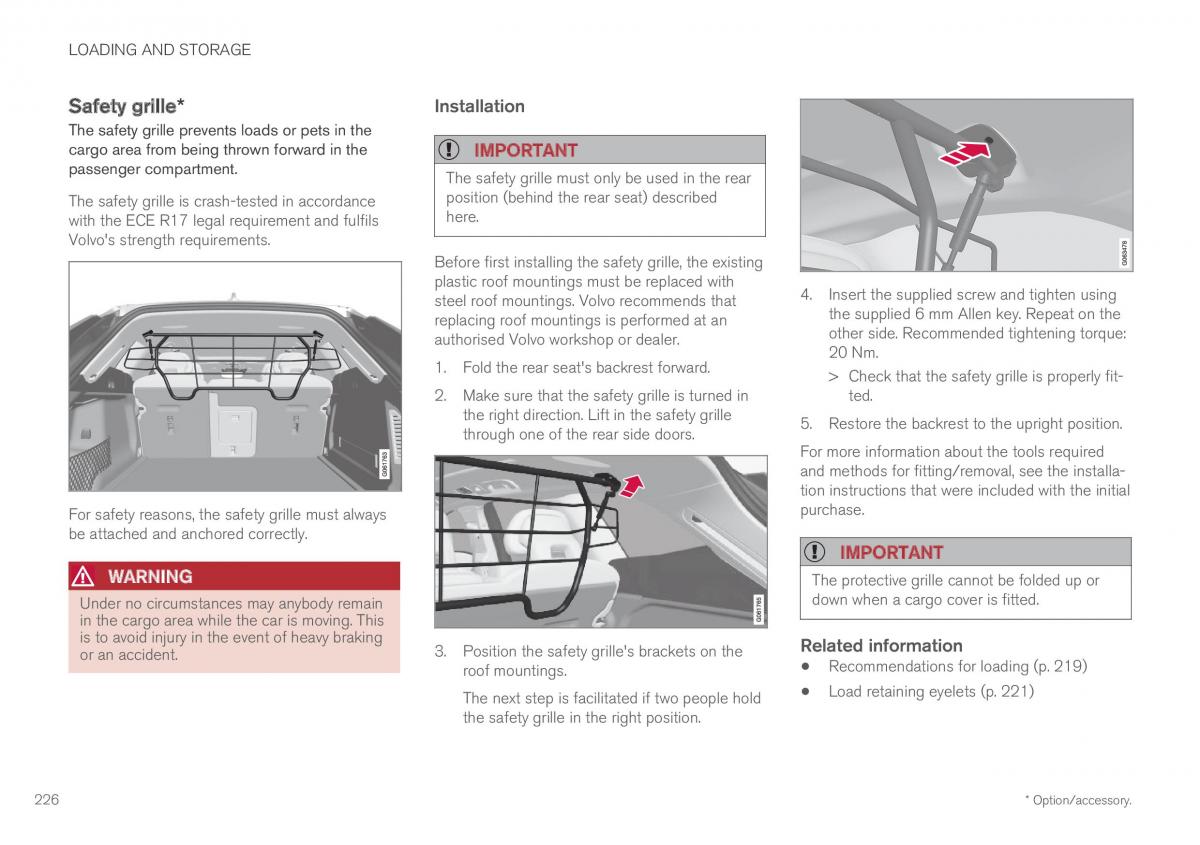

LOADING AND STORAGE
Safety grille* Installation
The safety grille prevents loads or pets in the
cargo area from being thrown forward in theIMPORTANT
passenger compartment. The safety grille must only be used in the rear
The safety grille is crash-tested in accordanceposition (behind the rear seat) described
with the ECE R17 legal requirement and fulfilshere.
Volvos strength requirements.
Before first installing the safety grille, the existing
plastic roof mountings must be replaced with4.Insert the supplied screw and tighten using
steel roof mountings. Volvo recommends thatthe supplied 6 mm Allen key. Repeat on the
replacing roof mountings is performed at another side. Recommended tightening torque:
authorised Volvo workshop or dealer. 20 Nm.
1.Fold the rear seats backrest forward.> Check that the safety grille is properly fit-
2.Make sure that the safety grille is turned inted.
the right direction. Lift in the safety grille5.Restore the backrest to the upright position.
through one of the rear side doors.
For more information about the tools required
and methods for fitting/removal, see the installa-
tion instructions that were included with the initial
For safety reasons, the safety grille must always purchase.
be attached and anchored correctly.
IMPORTANT
WARNING The protective grille cannot be folded up or
Under no circumstances may anybody remain down when a cargo cover is fitted.
in the cargo area while the car is moving. This
is to avoid injury in the event of heavy braking3.Position the safety grilles brackets on theRelated information
or an accident. Recommendations for loading (p. 219)
roof mountings. •
Load retaining eyelets (p. 221)
The next step is facilitated if two people hold•
the safety grille in the right position.
226 * Option/accessory.
