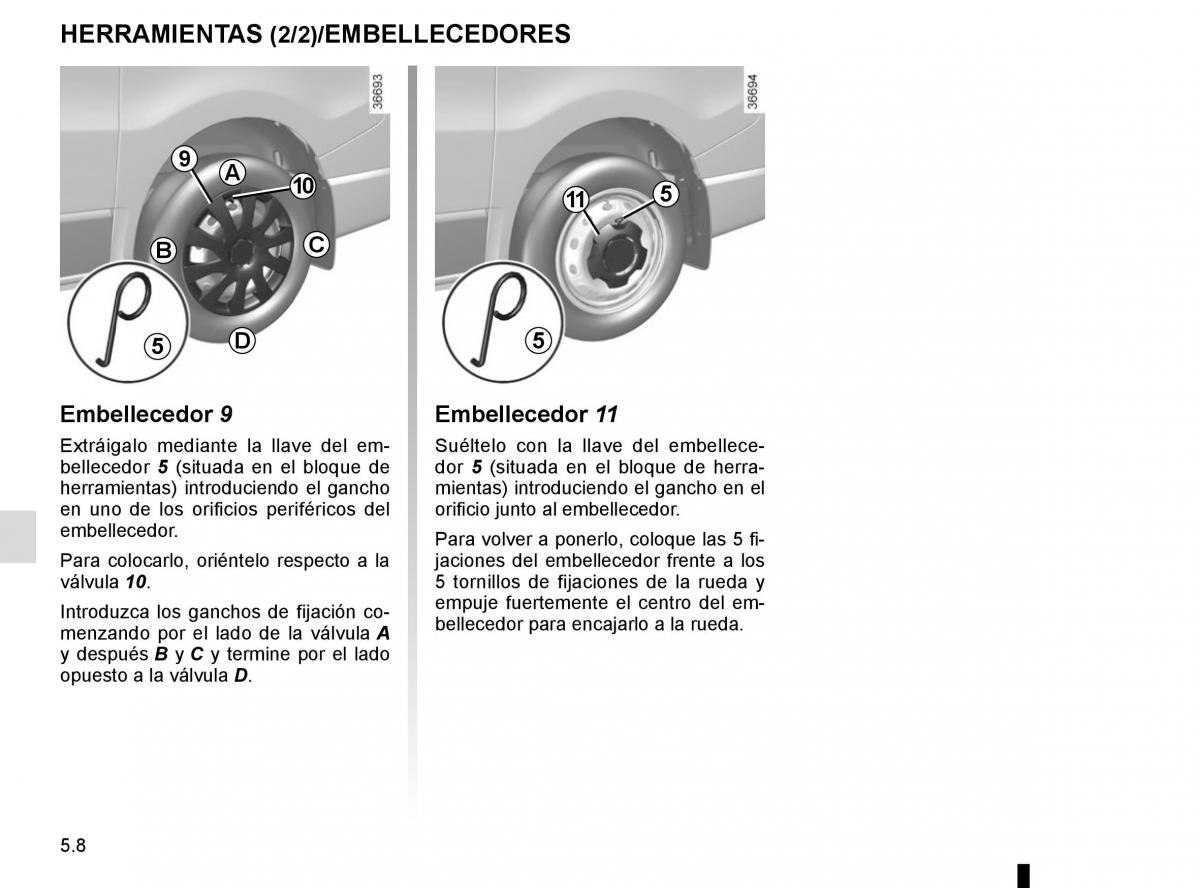

HERRAMIENTAS (2/2)/EMBELLECEDORES
9 A
10 11 5
B C
5 D 5
Embellecedor 9 Embellecedor 11
Extráigalo mediante la llave del em-Suéltelo con la llave del embellece-
bellecedor 5 (situada en el bloque dedor 5 (situada en el bloque de herra-
herramientas) introduciendo el gancho mientas) introduciendo el gancho en el
en uno de los orificios periféricos delorificio junto al embellecedor.
embellecedor. Para volver a ponerlo, coloque las 5 fi-
Para colocarlo, oriéntelo respecto a la jaciones del embellecedor frente a los
válvula 10. 5 tornillos de fijaciones de la rueda y
empuje fuertemente el centro del em-
Introduzca los ganchos de fijación co-
bellecedor para encajarlo a la rueda.
menzando por el lado de la válvula A
y después B y C y termine por el lado
opuesto a la válvula D.
5.8
