text version of content this owner's manual page from owners manual to the vehicle Skoda Octavia, year of production 2004 - 2013:

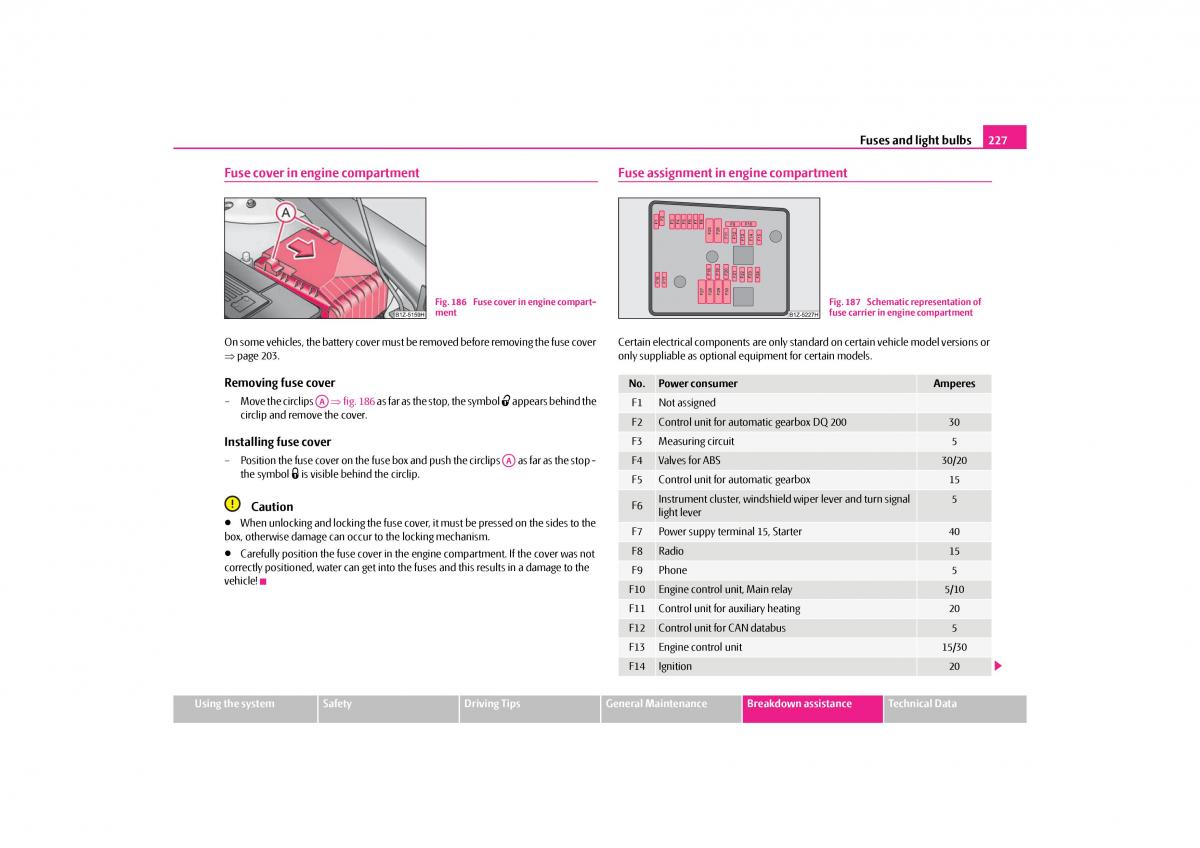

s43s.1.book Page 227 Thursday, May 13, 2010 1:21 PM Fuses and light bulbs227 Fuse cover in engine compartment Fuse assignment in engine compartment Fig. 186 Fuse cover in engine compart- Fig. 187 Schematic representation of ment fuse carrier in engine compartment On some vehicles, the battery cover must be removed before removing the fuse cover Certain electrical components are only stan dard on certain vehicle model versions or page203. only suppliable as optional equipment for certain models. Removing fuse cover No. Power consumer Amperes – Move the circlips A fig. 186 as far as the stop, the symbol  appears behind the A F1 Not assigned circlip and remove the cover. F2 Control unit for automatic gearbox DQ 200 30 Installing fuse cover F3 Measuring circuit 5 A – Position the fuse cover on the fuse box and push the circlips A as far as the stop - F4Valves for ABS 30/20 the symbol  is visible behind the circlip. F5 Control unit for automatic gearbox 15 Caution F6 Instrument cluster, windshield wiper lever and turn signal 5  When unlocking and locking the fuse cover, it must be pressed on the sides to the light lever box, otherwise damage can occur to the locking mechanism. F7 Power suppy terminal 15, Starter 40  Carefully position the fuse cover in the engine compartment. If the cover was not F8Radio 15 correctly positioned, water can get into the fuses and this results in a damage to the F9Phone 5 vehicle! F10 Engine control unit, Main relay 5/10 F11 Control unit for auxiliary heating 20 F12 Control unit for CAN databus 5 F13 Engine control unit 15/30 F14 Ignition 20 Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
