owners manual Peugeot 4008

owners manual Peugeot 4008 - year of production: 2012 - Peugeot 4008 owners manual EN

Document: pdf (16.52 MB) 389 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Peugeot 4008, year of production 2012:

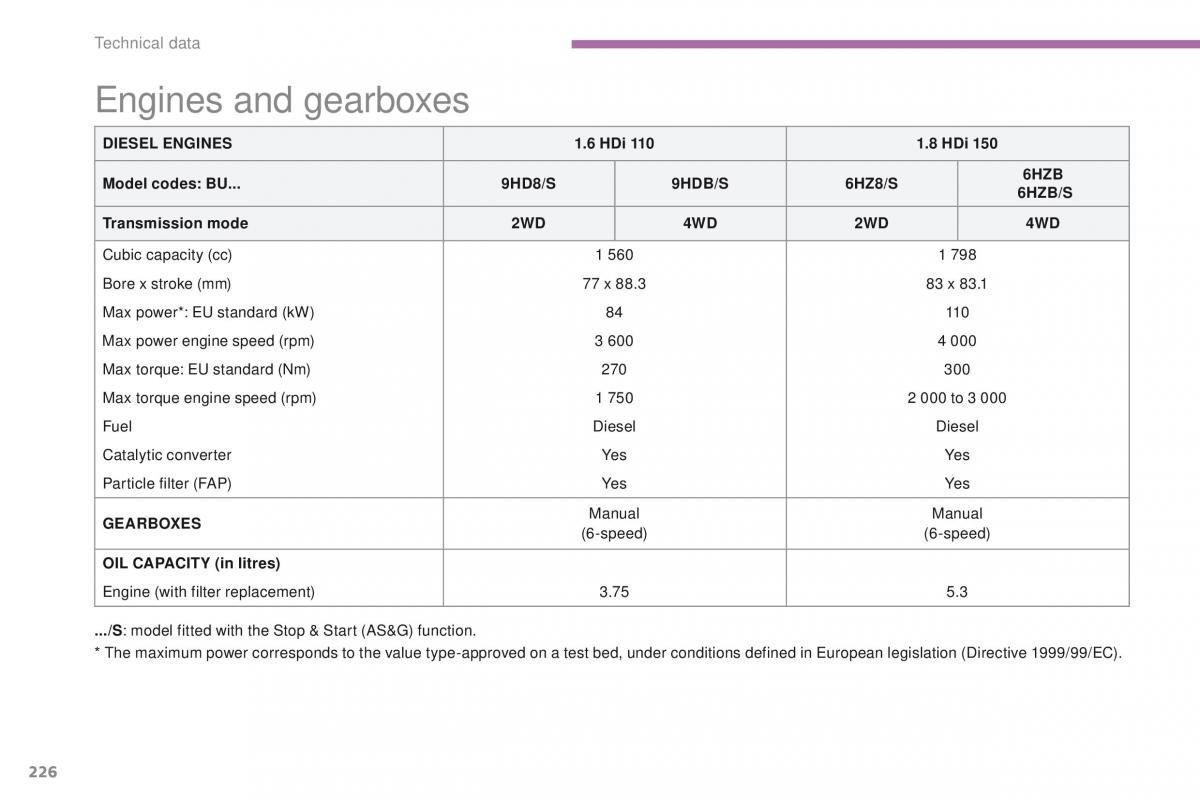

Technical data engines and gearboxes DIESEL ENGINES 1.6 HDi 110 1.8 HDi 150 Model codes: BU. 9HD8/S 9HDB/S 6HZ8/S 6HZB 6HZB/S Transmission mode 2WD 4WD 2WD 4WD Cubic capacity (cc) 1 560 1 798 Bore x stroke (mm) 77 x 88.3 83 x 83.1 Max power*: eu standard (kW) 84 110 Max power engine speed (rpm) 3 600 4 000 Max torque: eu standard (Nm) 270 300 Max torque engine speed (rpm) 1 750 2 000 to 3 000 Fuel Diesel Diesel Catalytic converter Yes Yes Particle filter (FAP) Yes Yes GEARBOXES Manual Manual (6-speed) (6-speed) OIL CAPACITY (in litres) engine (with filter replacement) 3.75 5.3 ./S: model fitted with the Stop & Start (AS&g) function. * the maximum power corresponds to the value type-approved on a test bed, under conditions defined in european legislation (Directive 1999/99/eC). 226

Download PDF

Click here to download a pdf file with an instruction manual for Peugeot 4008
year of production from: 2012

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Peugeot 4008 owners manual
pages 225 - 231

Peugeot 4008 owners manual
page 228 / 389
