text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

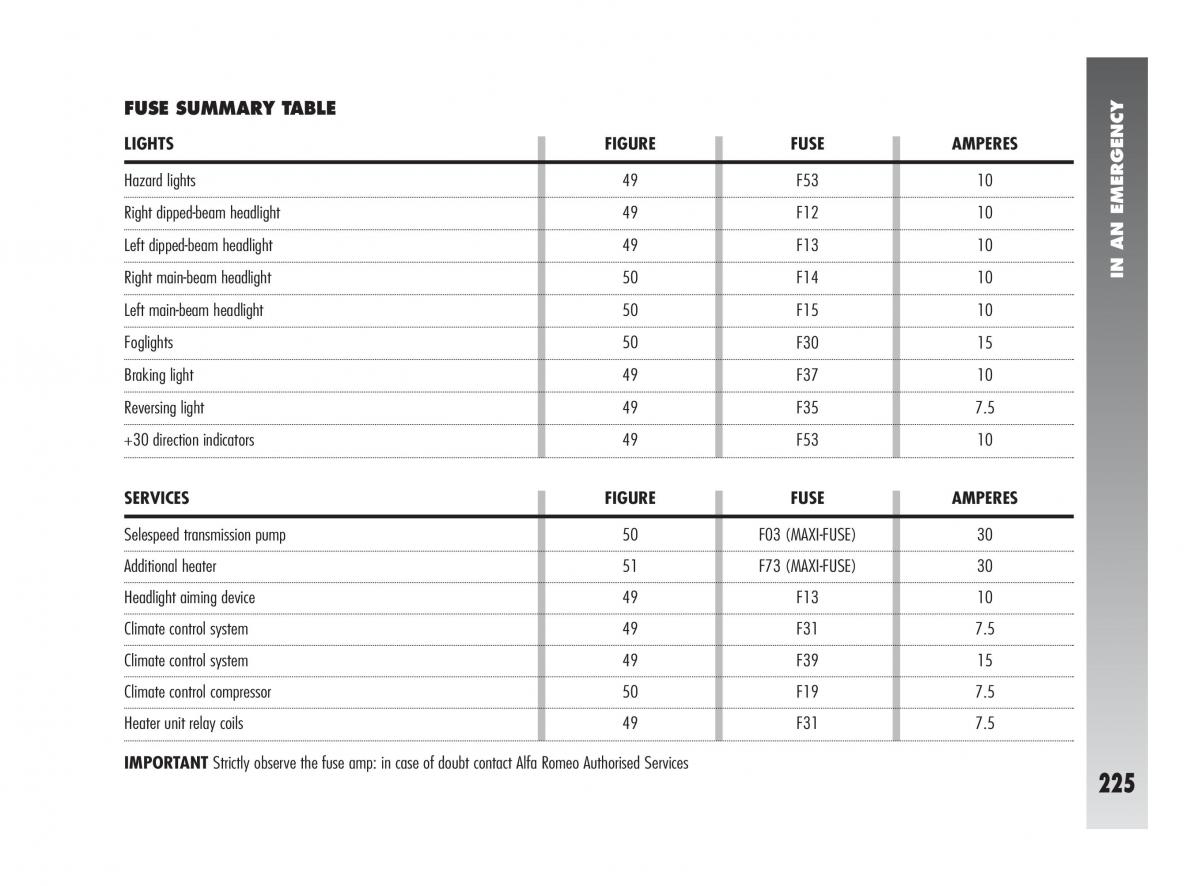

197-233_Alfa147 Q2 GB 4-07-2008 12:04 Pagina 225 FUSE SUMMARY TABLE LIGHTS FIGURE FUSE AMPERES Hazard lights 49 F53 10 Right dipped-beam headlight 49 F12 10 Left dipped-beam headlight 49 F13 10 Right main-beam headlight 50 F14 10 IN AN EMERGENCY Left main-beam headlight 50 F15 10 Foglights 50 F30 15 Braking light 49 F37 10 Reversing light 49 F35 7.5 +30 direction indicators 49 F53 10 SERVICES FIGURE FUSE AMPERES Selespeed transmission pump 50 F03 (MAXI-FUSE) 30 Additional heater 51 F73 (MAXI-FUSE) 30 Headlight aiming device 49 F13 10 Climate control system 49 F31 7.5 Climate control system 49 F39 15 Climate control compressor 50 F19 7.5 Heater unit relay coils 49 F31 7.5 IMPORTANTStrictly observe the fuse amp: in case of doubt contact Alfa Romeo Authorised Services225
