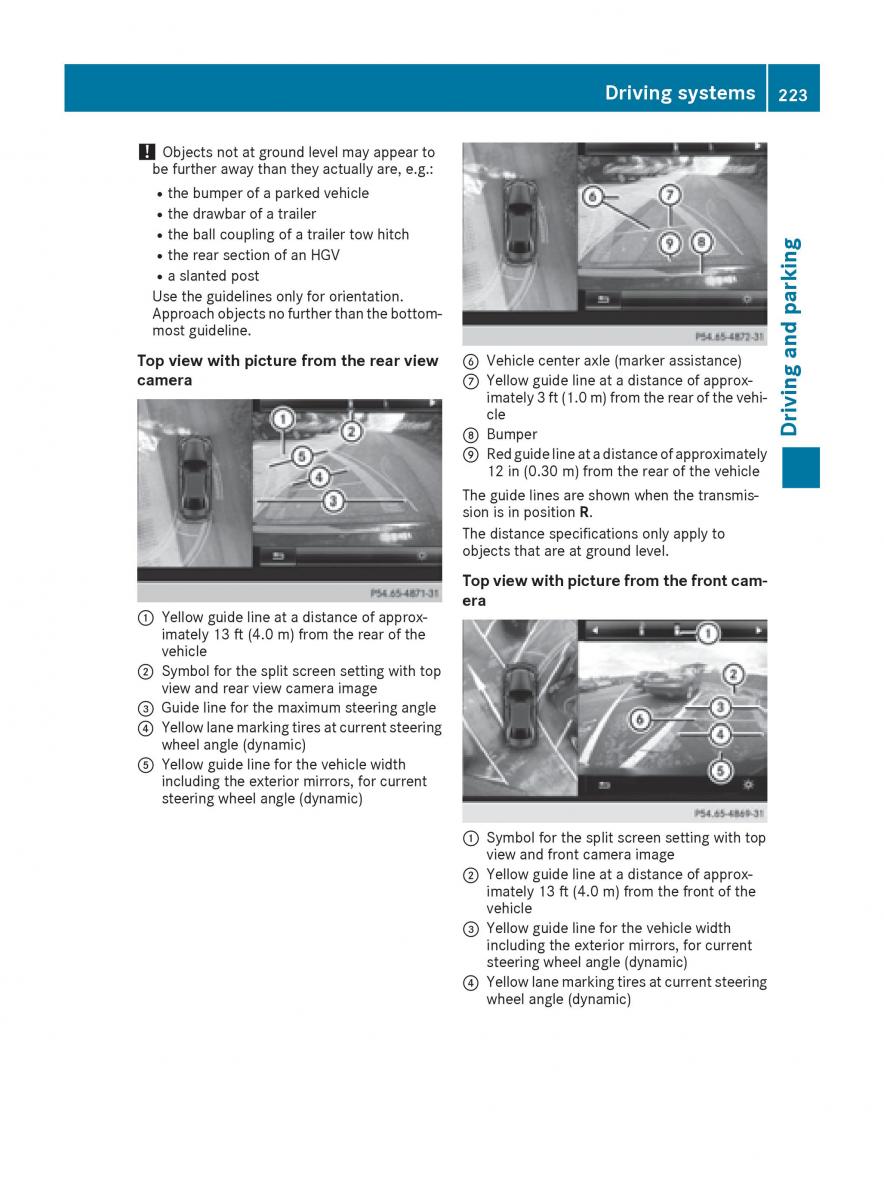

Driving systems 223 Objects not at ground level may appear to ! be further away than they actually are, e.g.: Rthebumperofaparkedvehicle Rthedrawbarofatrailer Rtheball coupling of a trailer tow hitch Rtherearsection of an HGV Raslantedpost Usetheguidelines only for orientation. parking Approachobjectsnofurtherthanthebottom- mostguideline. and TopviewwithpicturefromtherearviewBVehiclecenteraxle(markerassistance) camera CYellowguidelineatadistanceofapprox- imately3ft(1.0m)fromtherearofthevehi- cle riving DBumper D ERedguidelineatadistanceofapproximately 12in(0.30 m) from the rear of the vehicle The guide lines are shown when the transmis- sion is in position R. The distance specifications only apply to objects that are at ground level. Topviewwithpicturefromthefrontcam- era :Yellowguidelineatadistanceofapprox- imately 13 ft (4.0 m) from the rear of the vehicle ;Symbolforthesplitscreensetting with top view and rear view camera image =Guidelineforthemaximumsteeringangle ?Yellowlanemarkingtiresatcurrentsteering wheel angle (dynamic) AYellowguidelineforthevehicle width including the exterior mirrors, for current steering wheel angle (dynamic) :Symbolforthesplitscreensetting with top view and front camera image ;Yellowguidelineatadistanceofapprox- imately 13 ft (4.0 m) from the front of the vehicle =Yellowguidelineforthevehicle width including the exterior mirrors, for current steering wheel angle (dynamic) ?Yellowlanemarkingtiresatcurrentsteering wheel angle (dynamic) Z
