text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

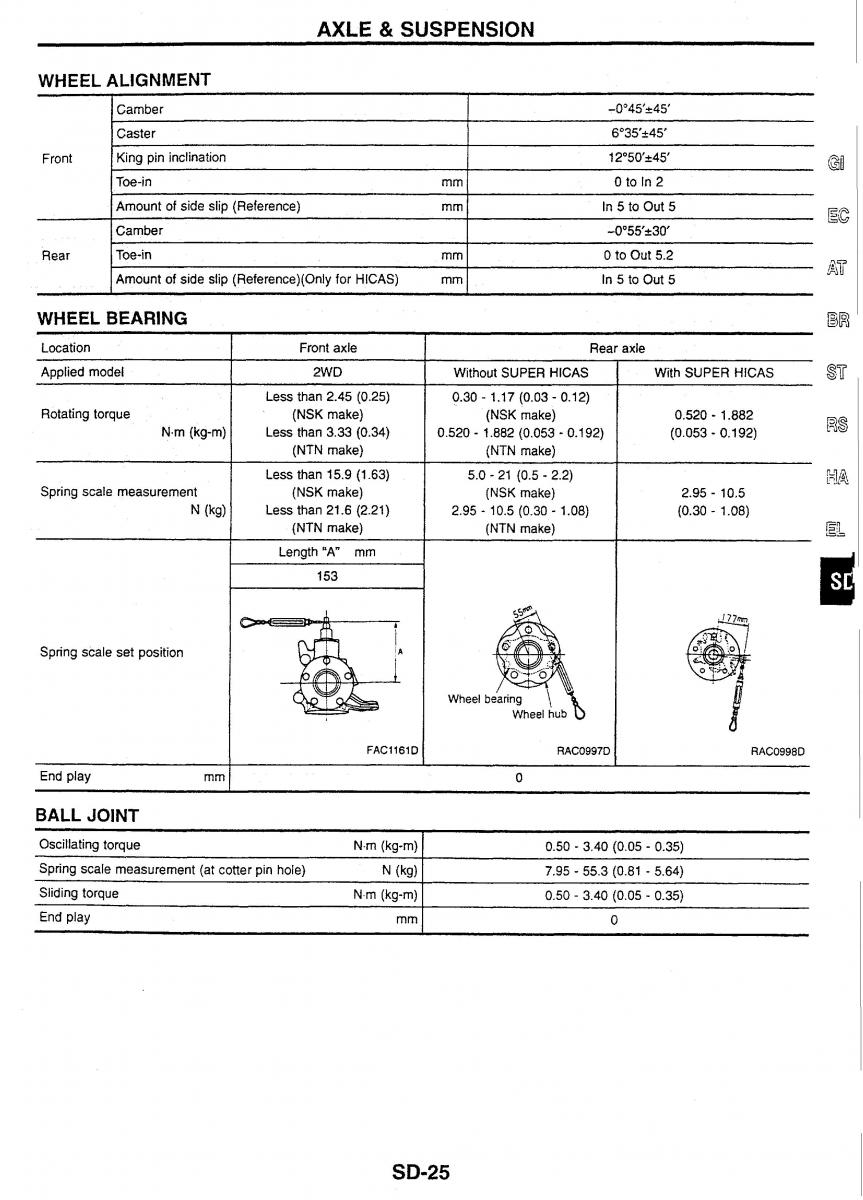

AXLE & SUSPENSION WHEEL ALIGNMENT - 1 Camber I -0°45'-t45' [caster 1 6"35'+45' r- - - Front King pin inclination 12"50'-t45' GI Toe-in mm 0 to In 2 Amount of side slip (Reference) mm In 5 to Out 5 EG Camber -0°55'&30' Rear Toe-in rnm 0 to Out 5.2 I Amount of side slip (Reference)(Only for HICAS) mm I In 5 to Out 5 WHEEL BEARING - - Location T Front axle Rear axle Applied model I 2WD Without SUPER HICAS With SUPER HICAS Less than 2.45 (0.25) 0.30 - 1 .I7 (0.03 - 0.12) Rotating torque (NSK make) (NSK make) N.m (kg-m) Less than 3.33 (0.34) 0.520 - 1.882 (0.053 - 0.192) (NTN make) (NTN make) Less than 15.9 (1.63) 5.0 - 21 (0.5 - 2.2) Spring scale measurement (NSK make) (NSK make) N (kg) Less than 21.6 (2.21) 2.95 - 10.5 (0.30 - 1 .O8) (NTN make) (NTN make) Spring scale set position End play mm l 0 BALL JOINT Oscillating torque N-m (kg-m) 0.50 - 3.40 (0.05 - 0.35) Spring scale measurement (at cotter pin hole) N (kg) 7.95 - 55.3 (0.81 - 5.64) Sliding torque N.m (kg-m) 0.50 - 3.40 (0.05 - 0.35) End play mm 0
