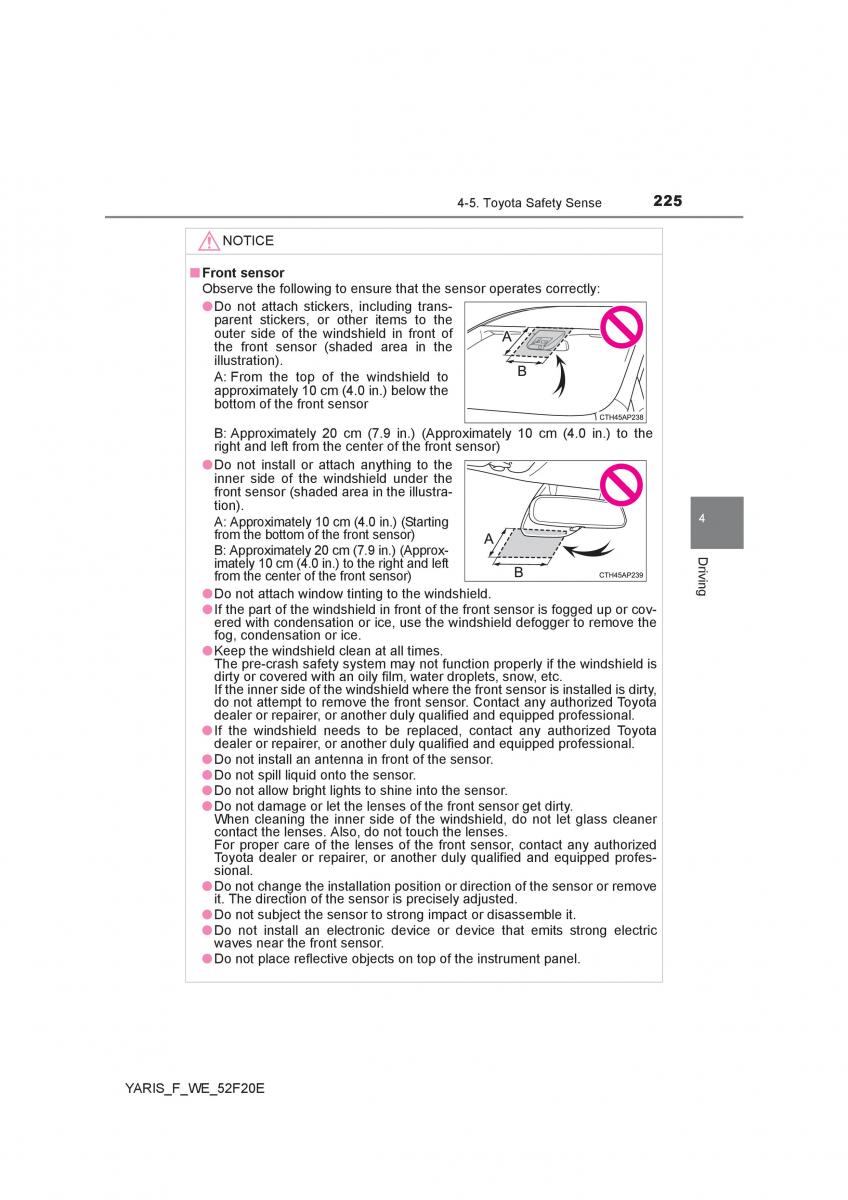

4-5. Toyota Safety Sense225 NOTICE ■Front sensor Observe the following to ensure that the sensor operates correctly: ●Do not attach stickers, including trans- parent stickers, or other items to the outer side of the windshield in front of the front sensor (shaded area in the illustration). A: From the top of the windshield to approximately 10 cm (4.0 in.) below the bottom of the front sensor B: Approximately 20 cm (7.9 in.) (Approximately 10 cm (4.0 in.) to the right and left from the center of the front sensor) ●Do not install or attach anything to the inner side of the windshield under the front sensor (shaded area in the illustra- tion). A: Approximately 10 cm (4.0 in.) (Starting 4 from the bottom of the front sensor) B: Approximately 20 cm (7.9 in.) (Approx- D imately 10 cm (4.0 in.) to the right and left r iv from the center of the front sensor) in ●Do not attach window tinting to the windshield. g ●If the part of the windshield in front of the front sensor is fogged up or cov- ered with condensation or ice, use the windshield defogger to remove the fog, condensation or ice. ●Keep the windshield clean at all times. The pre-crash safety system may not function properly if the windshield is dirty or covered with an oily film, water droplets, snow, etc. If the inner side of the windshield where the front sensor is installed is dirty, do not attempt to remove the front sensor. Contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. ●If the windshield needs to be replaced, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. ●Do not install an antenna in front of the sensor. ●Do not spill liquid onto the sensor. ●Do not allow bright lights to shine into the sensor. ●Do not damage or let the lenses of the front sensor get dirty. When cleaning the inner side of the windshield, do not let glass cleaner contact the lenses. Also, do not touch the lenses. For proper care of the lenses of the front sensor, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped profes- sional. ●Do not change the installation position or direction of the sensor or remove it. The direction of the sensor is precisely adjusted. ●Do not subject the sensor to strong impact or disassemble it. ●Do not install an electronic device or device that emits strong electric waves near the front sensor. ●Do not place reflective objects on top of the instrument panel. YARIS_F_WE_52F20E
