219-260 DOBLO LUM FR 2e 27-05-2010 14:53 Pagina 223

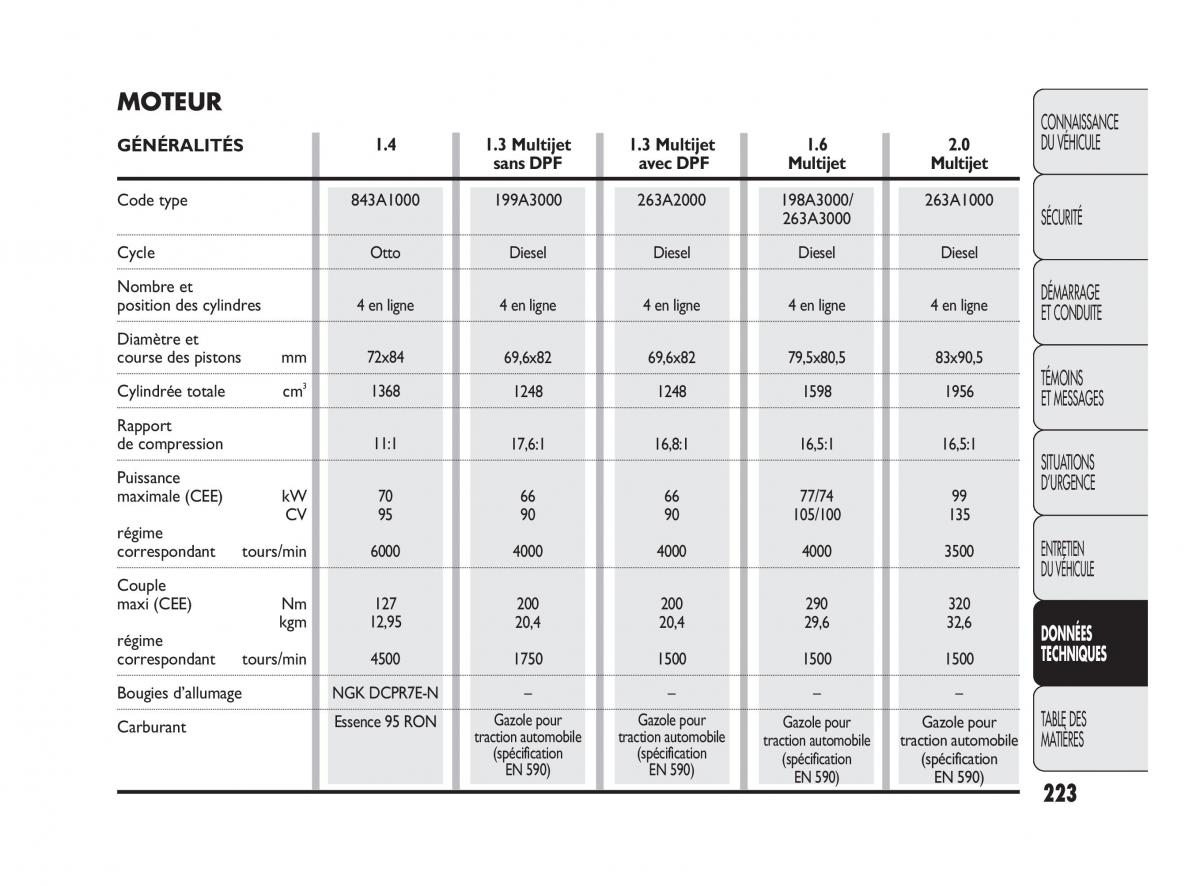

MOTEUR
CONNAISSANCE
GÉNÉRALITÉS 1.4 1.3 Multijet 1.3 Multijet 1.6 2.0 DU VÉHICULE
sans DPF avec DPF Multijet Multijet
Code type 843A1000 199A3000 263A2000 198A3000/ 263A1000
263A3000 SÉCURITÉ
Cycle Otto Diesel Diesel Diesel Diesel
Nombre et DÉMARRAGE
position des cylindres4 en ligne 4 en ligne 4 en ligne 4 en ligne 4 en ligneET CONDUITE
Diamètre et
course des pistonsmm 72x84 69,6x82 69,6x82 79,5x80,5 83x90,5
Cylindrée totale cm 3 1368 1248 1248 1598 1956 TÉMOINS
ET MESSAGES
Rapport
de compression 11:1 17,6:1 16,8:1 16,5:1 16,5:1
Puissance SITUATIONS
maximale (CEE) kW 70 66 66 77/74 99 DURGENCE
CV 95 90 90 105/100 135
régime ENTRETIEN
correspondanttours/min6000 4000 4000 4000 3500
Couple DU VÉHICULE
maxi (CEE) Nm 127 200 200 290 320
kgm 12,95 20,4 20,4 29,6 32,6 DONNÉES
régime TECHNIQUES
correspondant tours/min4500 1750 1500 1500 1500
Bougies d’allumageNGK DCPR7E-N – – – –
Carburant Essence 95 RONGazole pour Gazole pour Gazole pour Gazole pourTABLE DES
traction automobiletraction automobiletraction automobiletraction automobileMATIÈRES
(spécification (spécification (spécification (spécification
EN 590) EN 590) EN 590) EN 590)
223
