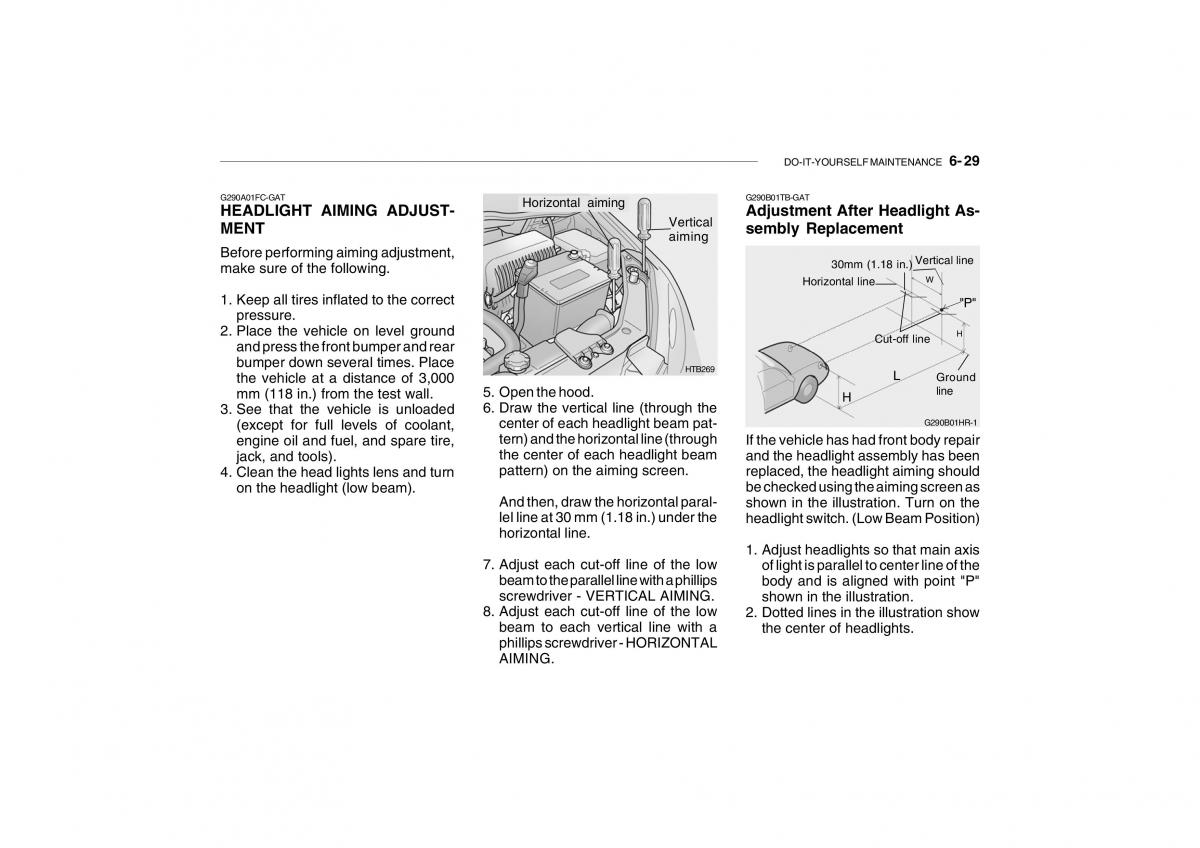

DO-IT-YOURSELF MAINTENANCE 6- 29 G290A01FC-GAT Horizontal aiming G290B01TB-GAT HEADLIGHT AIMING ADJUST- Adjustment After Headlight As- MENT Vertical sembly Replacement aiming Before performing aiming adjustment, Vertical line make sure of the following. 30mm (1.18 in.) Horizontal line W 1. Keep all tires inflated to the correct "P" pressure. 2. Place the vehicle on level ground Cut-off line H and press the front bumper and rear bumper down several times. Place HTB269 the vehicle at a distance of 3,000 L Ground mm (118 in.) from the test wall. 5. Open the hood. H line 6. Draw the vertical line (through the 3. See that the vehicle is unloaded center of each headlight beam pat- G290B01HR-1 (except for full levels of coolant, tern) and the horizontal line (throughIf the vehicle has had front body repair engine oil and fuel, and spare tire, the center of each headlight beam jack, and tools). and the headlight assembly has been 4. Clean the head lights lens and turn pattern) on the aiming screen. replaced, the headlight aiming should on the headlight (low beam). be checked using the aiming screen as And then, draw the horizontal paral- shown in the illustration. Turn on the lel line at 30 mm (1.18 in.) under theheadlight switch. (Low Beam Position) horizontal line. 1. Adjust headlights so that main axis 7. Adjust each cut-off line of the low of light is parallel to center line of the beam to the parallel line with a phillipsbody and is aligned with point "P" screwdriver - VERTICAL AIMING. shown in the illustration. 8. Adjust each cut-off line of the low 2. Dotted lines in the illustration show beam to each vertical line with a the center of headlights. phillips screwdriver - HORIZONTAL AIMING.
