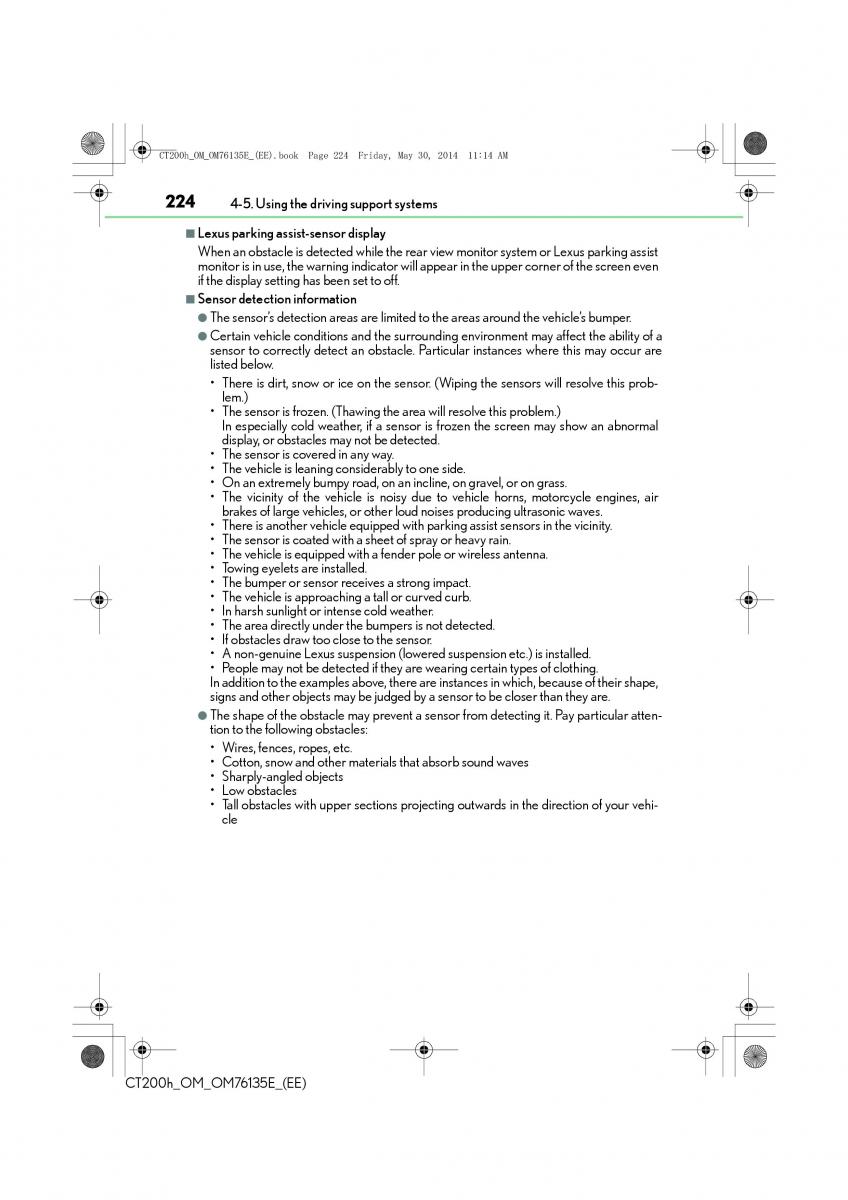

CT200h_OM_OM76135E_(EE).book Page 224 Friday, May 30, 2014 11:14 AM 224 4-5. Using the driving support systems ■Lexus parking assist-sensor display When an obstacle is detected while the rear view monitor system or Lexus parking assist monitor is in use, the warning indicator will appear in the upper corner of the screen even if the display setting has been set to off. ■Sensor detection information ●The sensor’s detection areas are limited to the areas around the vehicle’s bumper. ●Certain vehicle conditions and the surrounding environment may affect the ability of a sensor to correctly detect an obstacle. Particular instances where this may occur are listed below. • There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this prob- lem.) • The sensor is frozen. (Thawing the area will resolve this problem.) In especially cold weather, if a sensor is frozen the screen may show an abnormal display, or obstacles may not be detected. • The sensor is covered in any way. • The vehicle is leaning considerably to one side. • On an extremely bumpy road, on an incline, on gravel, or on grass. • The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves. • There is another vehicle equipped with parking assist sensors in the vicinity. • The sensor is coated with a sheet of spray or heavy rain. • The vehicle is equipped with a fender pole or wireless antenna. • Towing eyelets are installed. • The bumper or sensor receives a strong impact. • The vehicle is approaching a tall or curved curb. • In harsh sunlight or intense cold weather. • The area directly under the bumpers is not detected. • If obstacles draw too close to the sensor. • A non-genuine Lexus suspension (lowered suspension etc.) is installed. • People may not be detected if they are wearing certain types of clothing. In addition to the examples above, there are instances in which, because of their shape, signs and other objects may be judged bya s ensor to be closer than they are. ●The shape of the obstacle may prevent a sensor from detecting it. Pay particular atten- tion to the following obstacles: • Wires, fences, ropes, etc. • Cotton, snow and other materials that absorb sound waves • Sharply-angled objects • Low obstacles • Tall obstacles with upper sections projecting outwards in the direction of your vehi- cle CT200h_OM_OM76135E_(EE)
