text version of content this owner's manual page from owners manual to the vehicle Renault Trafic, year of production 2014:

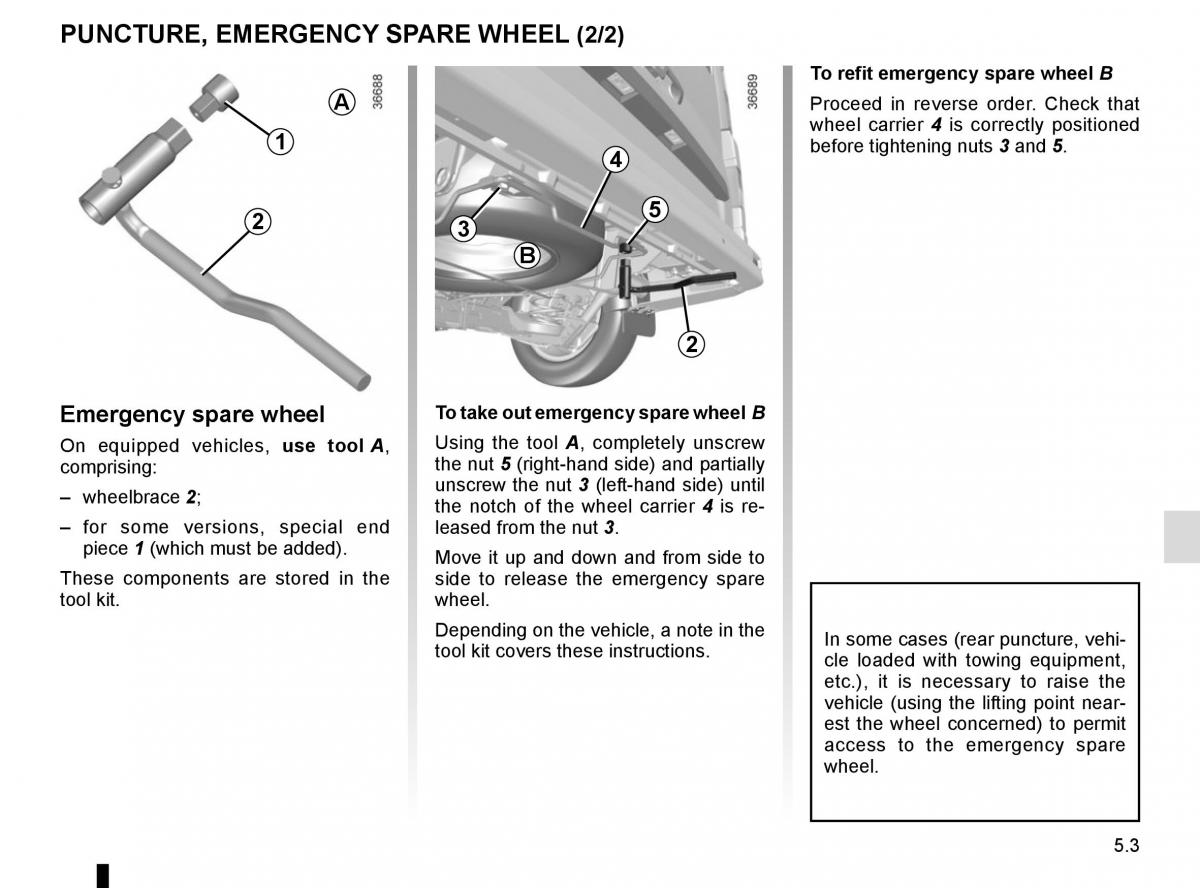

PUNCTURE, EMERGENCY SPARE WHEEL (2/2) To refit emergency spare wheel B A Proceed in reverse order. Check that 1 wheel carrier 4 is correctly positioned 4 before tightening nuts 3 and 5. 2 3 5 B 2 Emergency spare wheel To take out emergency spare wheel B Using the tool , completely unscrewA On equipped vehicles, use toolA, comprising: the nut 5 (right-hand side) and partially – wheelbrace 2; unscrew the nut 3 (left-hand side) until the notch of the wheel carrier is re-4 – for some versions, special end leased from the nut 3. piece 1 (which must be added).Move it up and down and from side to These components are stored in the side to release the emergency spare tool kit. wheel. Depending on the vehicle, a note in the In some cases (rear puncture, vehi- tool kit covers these instructions.cle loaded with towing equipment, etc.), it is necessary to raise the vehicle (using the lifting point near- est the wheel concerned) to permit access to the emergency spare wheel. 5.3
