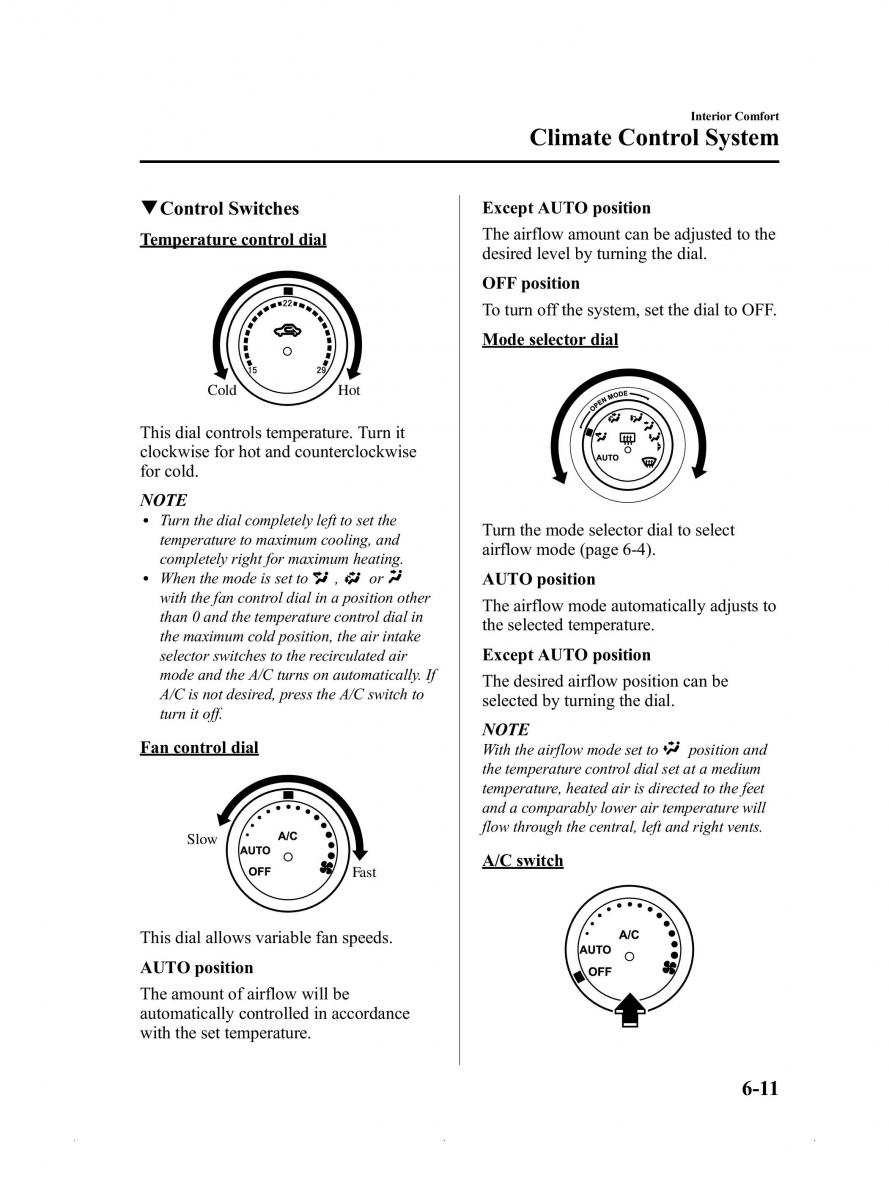

MX-5_8EN7-EA-14E_Edition1 Page223
Friday, March 28 2014 3:40 PM
Black plate (223,1)
Interior Comfort
Climate Control System
qControlSwitches Except AUTOposition
Temperaturecontrol dial Theairflow amount can be adjusted to the
desired level by turning the dial.
OFFposition
Toturn off the system, set the dial to OFF.
Modeselector dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
NOTE
l Turn the dial completely left to set the Turn the mode selector dial to select
temperature to maximum cooling, and airflow mode (page 6-4).
completely right for maximum heating.
l Whenthemodeissetto , or AUTOposition
with the fan control dial in a position other Theairflow mode automatically adjusts to
than 0 and the temperature control dial in the selected temperature.
the maximum cold position, the air intake
selector switches to the recirculated air Except AUTOposition
modeandtheA/Cturnsonautomatically. If Thedesired airflow position can be
A/Cis not desired, press the A/C switch to selected by turning the dial.
turn it off.
NOTE
Fancontrol dial With the airflow mode set to position and
the temperature control dial set at a medium
temperature, heated air is directed to the feet
and a comparably lower air temperature will
Slow flow through the central, left and right vents.
Fast A/Cswitch
This dial allows variable fan speeds.
AUTOposition
Theamountofairflow will be
automatically controlled in accordance
with the set temperature.
6-11
Form No.8EN7-EA-14E
