owners manual Nissan Rogue

all ratings: 0 average rating: 5

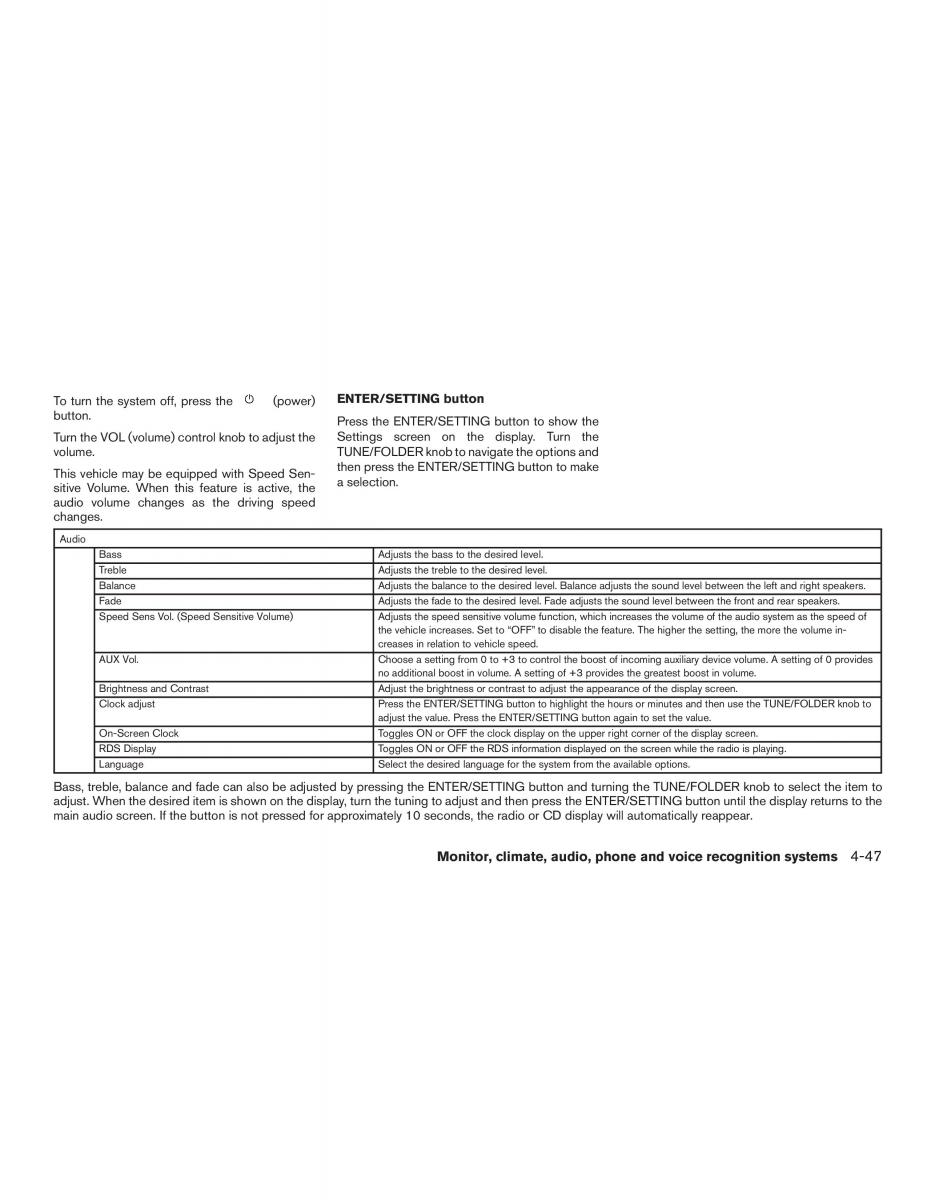

To turn the system off, press the(power)ENTER/SETTINGbutton button. Press the ENTER/SETTING button to show the Turn the VOL (volume) control knob to adjust theSettings screen on the display. Turn the volume. TUNE/FOLDERknobtonavigatetheoptionsand This vehicle may be equipped with Speed Sen-then press the ENTER/SETTINGbuttontomake sitive Volume. When this feature is active, thea selection. audio volume changes as the driving speed changes. Audio Bass Adjusts the bass to the desired level. Treble Adjusts the treble to the desired level. Balance Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers. Fade Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers. SpeedSensVol.(SpeedSensitive Volume)Adjusts the speed sensitive volume function, which increases the volume of the audio system as the speed of the vehicle increases. Set to “OFF”to disable the feature. The higher the setting, the more the volume in- creases in relation to vehicle speed. AUXVol. Chooseasetting from 0 to +3 to control the boost of incoming auxiliary device volume. A setting of 0 provides no additional boost in volume. A setting of +3 provides the greatest boost in volume. Brightness and Contrast Adjust the brightness or contrast to adjust the appearance of the display screen. Clock adjust Press the ENTER/SETTING button to highlight the hours or minutes and then use the TUNE/FOLDER knob to adjust the value. Press the ENTER/SETTING button again to set the value. On-Screen Clock Toggles ON or OFF the clock display on the upper right corner of the display screen. RDSDisplay Toggles ON or OFF the RDS information displayed on the screen while the radio is playing. Language Select the desired language for the system from the available options. Bass, treble, balance and fade can also be adjusted by pressing the ENTER/SETTING button and turning the TUNE/FOLDER knob to select the item to adjust. When the desired item is shown on the display, turn the tuning to adjust and then press the ENTER/SETTING button until the display returns to the main audio screen. If the button is not pressed for approximately 10 seconds, the radio or CD display will automatically reappear. Monitor, climate, audio, phone and voice recognition systems 4-47
