text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

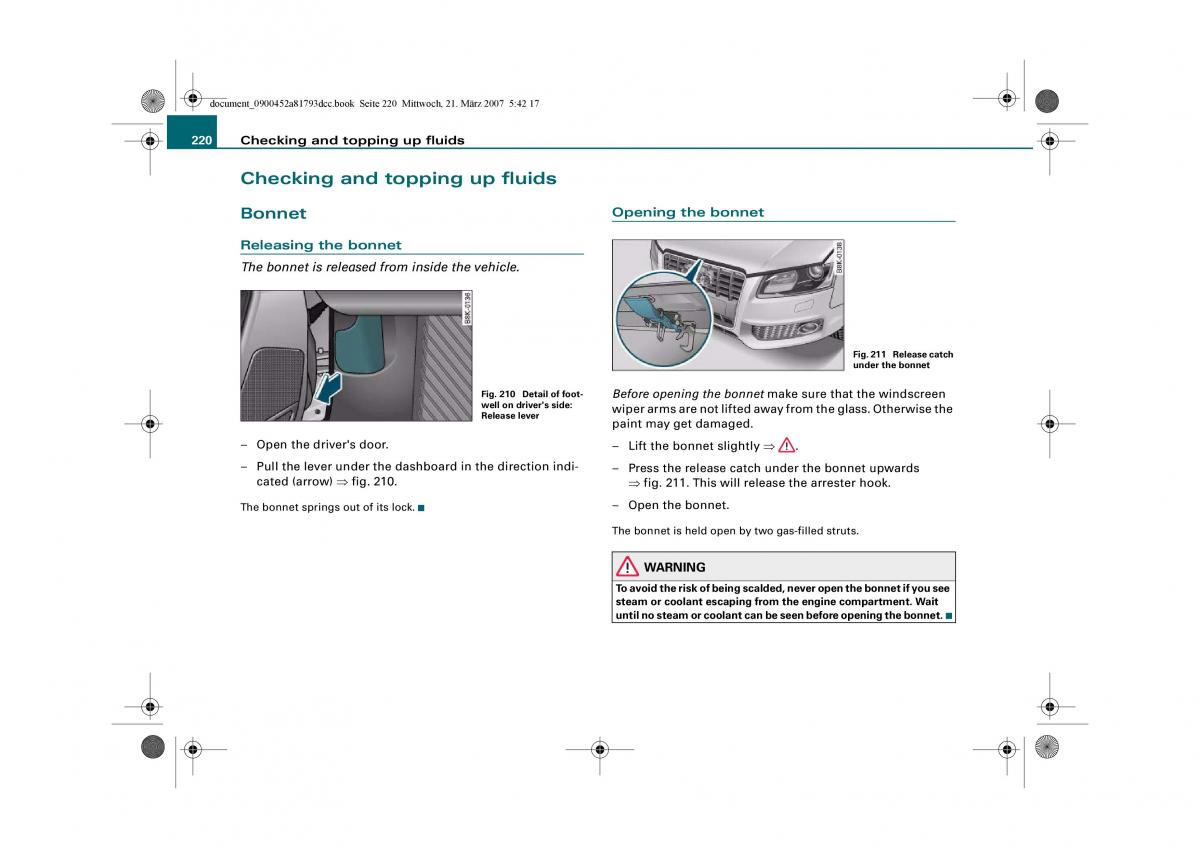

document_0900452a81793dcc.book Seite 220 Mittwoch, 21. März 2007 5:42 17 220 Checking and topping up fluids Checking and topping up fluids Bonnet Opening the bonnet Releasing the bonnet The bonnet is released from inside the vehicle. Fig. 211 Release catch under the bonnet Fig. 210 Detail of foot-Before opening the bonnet make sure that the windscreen well on driver's side: wiper arms are not lifted away from the glass. Otherwise the Release lever paint may get damaged. – Open the driver's door. – Lift the bonnet slightly ⇒. – Pull the lever under the dashboard in the direction indi-– Press the release catch under the bonnet upwards cated (arrow) ⇒ fig. 210. ⇒fig. 211. This will release the arrester hook. The bonnet springs out of its lock. – Open the bonnet. The bonnet is held open by two gas-filled struts. WARNING To avoid the risk of being scalded, never open the bonnet if you see steam or coolant escaping from the engine compartment. Wait until no steam or coolant can be seen before opening the bonnet.
