text version of content this owner's manual page from owners manual to the vehicle Mercedes GLE, year of production 2015:

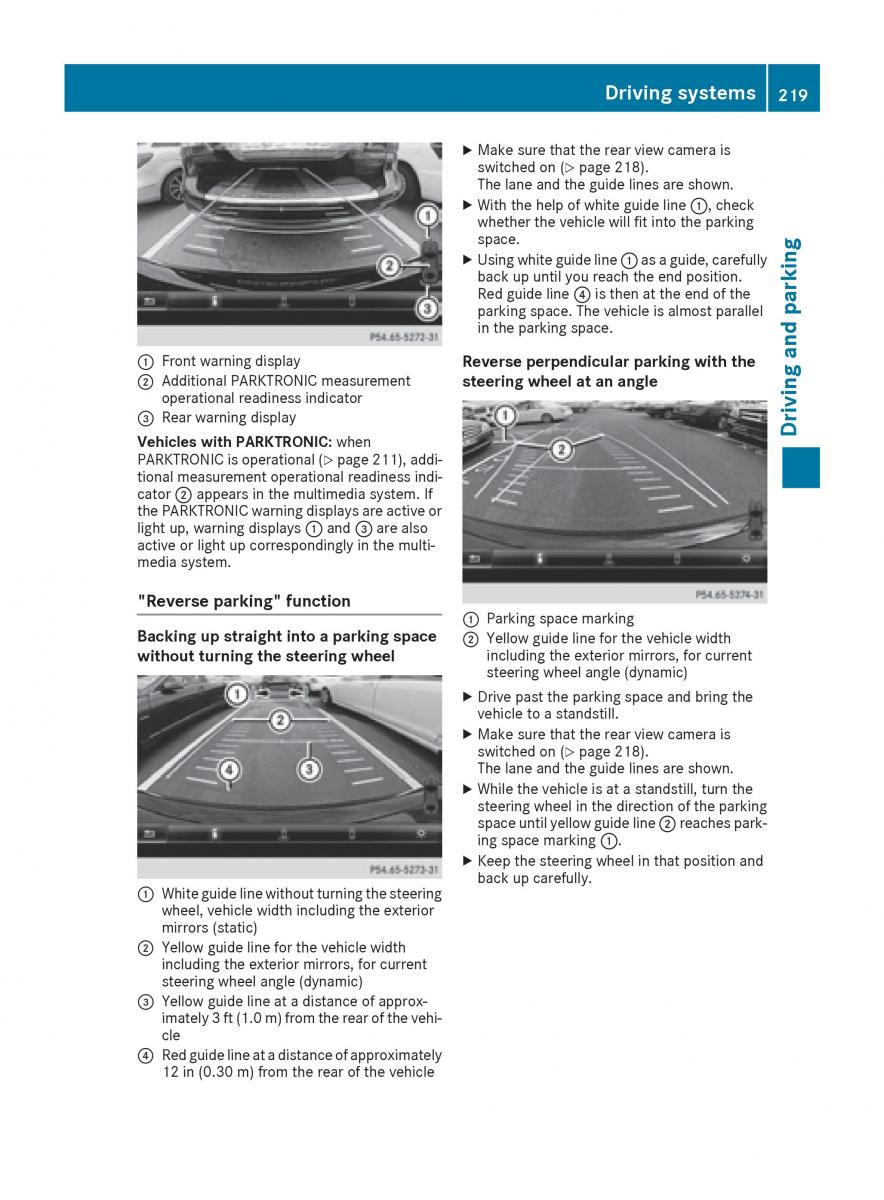

Driving systems 219 XMakesurethattherearviewcamerais Ypage218). switched on ( The lane and the guide lines are shown. XWiththehelpofwhiteguideline :, check whether the vehicle will fit into the parking space. g XUsingwhiteguideline:asaguide,carefully back up until you reach the end position. Redguideline ?is then at the end of theparkin parking space. The vehicle is almost parallel in the parking space. d an :Frontwarningdisplay Reverse perpendicular parking with theg ;AdditionalPARKTRONICmeasurement steering wheel at an angle n operational readiness indicator ivi =Rearwarningdisplay r Vehicles with PARKTRONIC: when D PARKTRONICisoperational(Ypage211), addi- tional measurement operational readiness indi- cator ; appears in the multimedia system. If thePARKTRONICwarningdisplaysareactiveor light up, warning displays : and = are also active or light up correspondingly in the multi- media system. "Reverse parking" function Backing up straight into a parking space:Parkingspacemarking ;Yellowguidelineforthevehicle width without turning the steering wheel including the exterior mirrors, for current steering wheel angle (dynamic) XDrivepast the parking space and bring the vehicle to a standstill. XMakesurethattherearviewcamerais switched on (Y page 218). The lane and the guide lines are shown. XWhilethevehicle is at a standstill, turn the steering wheel in the direction of the parking spaceuntilyellowguideline;reachespark- ing space marking :. XKeepthesteeringwheelinthat position and back up carefully. :Whiteguidelinewithoutturningthesteering wheel, vehicle width including the exterior mirrors (static) ;Yellowguidelineforthevehicle width including the exterior mirrors, for current steering wheel angle (dynamic) =Yellowguidelineatadistanceofapprox- imately3ft(1.0m)fromtherearofthevehi- cle ?Redguidelineatadistanceofapproximately 12in(0.30 m) from the rear of the vehicle Z
