text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

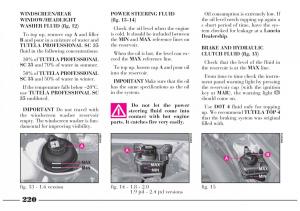

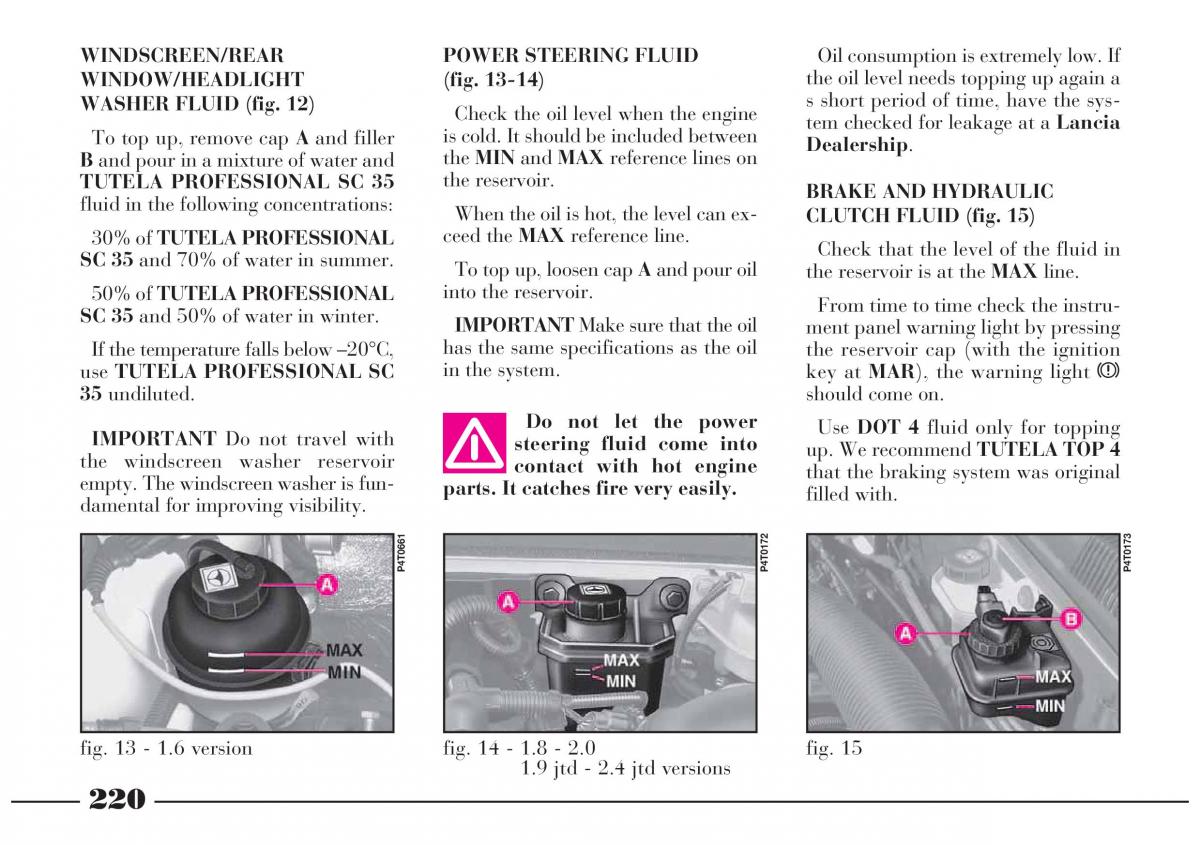

WINDSCREEN/REAR POWER STEERING FLUID Oil consumption is extremely low. If WINDOW/HEADLIGHT (fig. 13-14) the oil level needs topping up again a WASHER FLUID (fig. 12) Check the oil level when the engine s short period of time, have the sys- To top up, remove cap A and filler is cold. It should be included between tem checked for leakage at a Lancia Band pour in a mixture of water and the MIN and MAX reference lines on Dealership . the reservoir. TUTELA PROFESSIONAL SC 35 BRAKE AND HYDRAULIC fluid in the following concentrations: When the oil is hot, the level can ex- CLUTCH FLUID (fig. 15) 30% of TUTELA PROFESSIONAL ceed the MAX reference line. Check that the level of the fluid in SC 35 and 70% of water in summer. To top up, loosen cap Aand pour oil the reservoir is at the MAXline. 50% of TUTELA PROFESSIONAL into the reservoir. From time to time check the instru- SC 35 and 50% of water in winter. IMPORTANT Make sure that the oil ment panel warning light by pressing If the temperature falls below –20°C, has the same specifications as the oil the reservoir cap (with the ignition use TUTELA PROFESSIONAL SCin the system. key at MAR), the warning light x 35 undiluted. should come on. Do not let the power IMPORTANTDo not travel with Use DOT 4fluid only for topping steering fluid come into up. We recommend TUTELA TOP 4 the windscreen washer reservoir contact with hot engine empty. The windscreen washer is fun- parts. It catches fire very easily. that the braking system was original damental for improving visibility. filled with. P4T0661 P4T0172 P4T0173 fig. 13 - 1.6 version fig. 14 - 1.8 - 2.0 fig. 15 1.9 jtd - 2.4 jtd versions 220
