text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

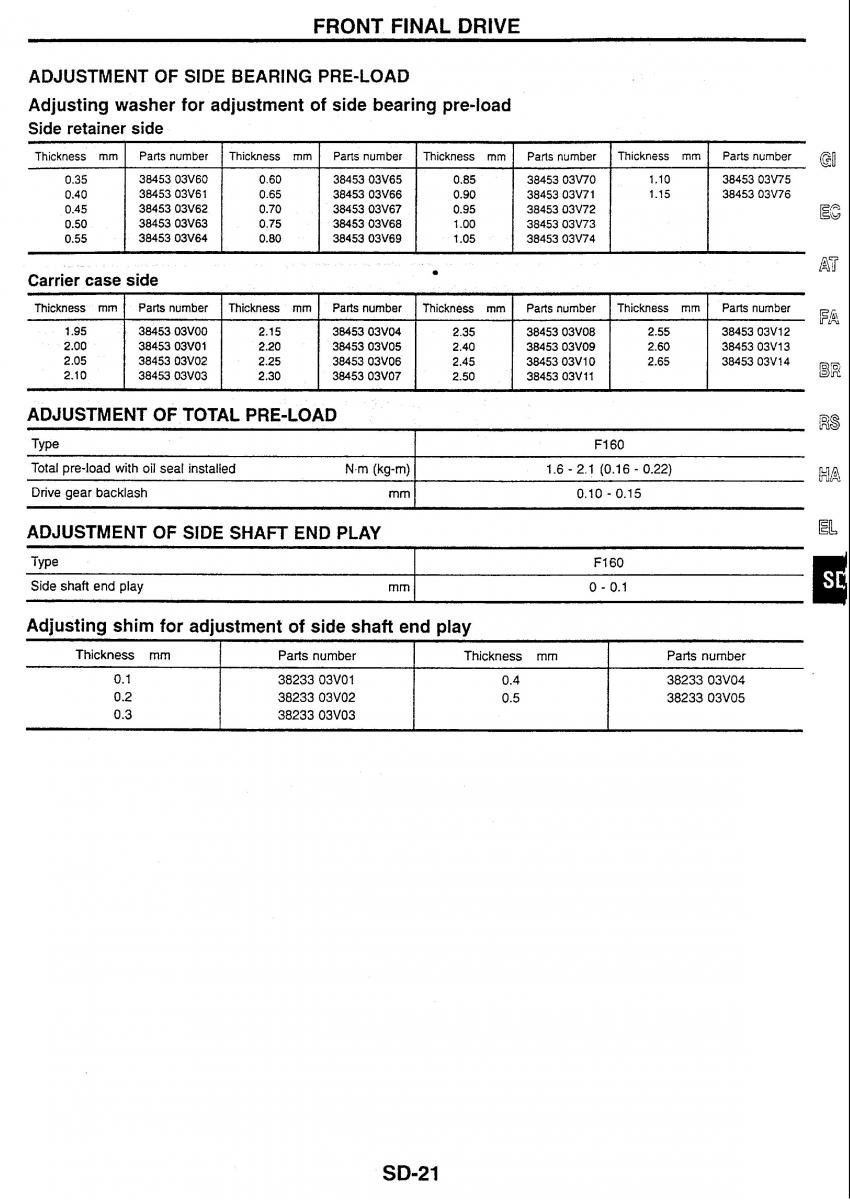

FRONT FINAL DRIVE ADJUSTMENT OF SIDE BEARING PRE-LOAD Adjusting washer for adjustment of side bearing pre-load Side retainer side Thickness mm 1 Pans number I Thickness mm 1 Pans number I Thickness mm 1 Parts number I Thickness mm 1 Parts number Carrier case side Thickness mm Parts number Thickness mm Parts number Thickness mm Parts number Thickness mm Parts number 1.95 38453 03VOO 2.15 38453 03V04 2.35 3845303V08 2.55 38453 03V12 2.00 38453 03V01 2.20 38453 03V05 2.40 3845303V09 2.60 38453 03V13 2.05 38453 03V02 2.25 38453 03V06 2.45 3845303V10 2.65 3845303V14 ADJUSTMENT OF TOTAL PRE-LOAD Type F160 Total pre-load with oil seal installed N.m (kg-m) 1.6 - 2.1 (0.16 - 0.22) Drive gear backlash mm 0.10 - 0.15 ADJUSTMENT OF SIDE SHAFT END PLAY I Type F160 Side shaft end play mm 0 - 0.1 Adjusting shim for adjustment of side shaft end play Thickness mm I Parts number I Thickness mm I Parts number
