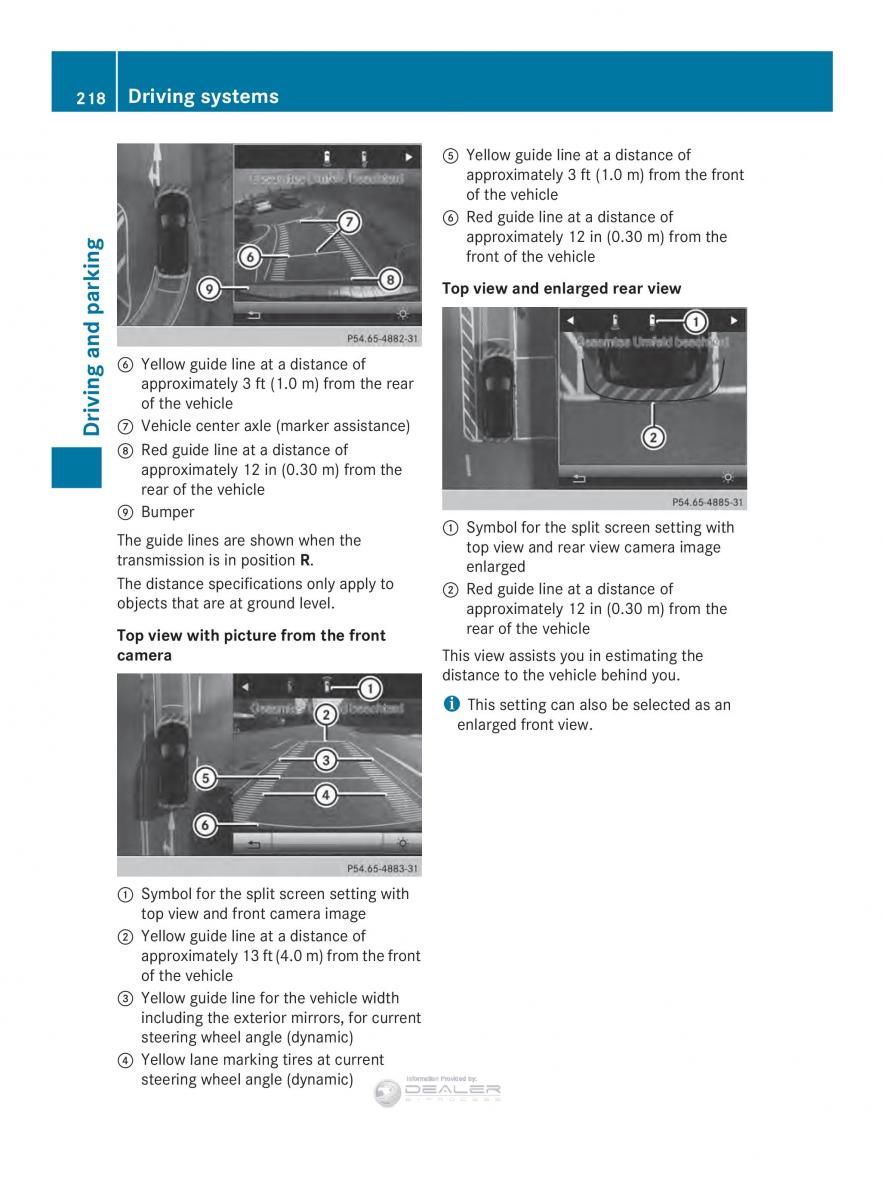

Driving systems
218
A Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the front
of the vehicle
B Red guide line at a distanc eof
approximately 12 in (0.30 m) from the
front of the vehicle
Top view and enlarged rea rv iew
B Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the rear
of the vehicle
parking
and C Vehicle center axle (marker assistance)
Driving
D Red guide line at a distanc eof
approximately 12 in (0.30 m) from the
rear of the vehicle
E Bumper
: Symbol for the split screen setting with
The guide lines are shown when the
top view and rear view camera image
transmission is in position R.
enlarged
The distance specifications only apply to
; Red guide line at a distance of
objects that are at ground level.
approximately 12 in (0.30 m) from the
rear of the vehicle
Top view with picture from the front
camera This view assists you in estimating the
distance to the vehicle behind you.
i
This setting can also be selected as an
enlarged frontv iew.
: Symbol for the split scree ns etting with
top view and front camera image
; Yellow guide line at a distance of
approximately 13 ft (4.0 m) from the front
of the vehicle
= Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
? Yellow lane marking tires at current
steering wheel angle (dynamic)
