text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

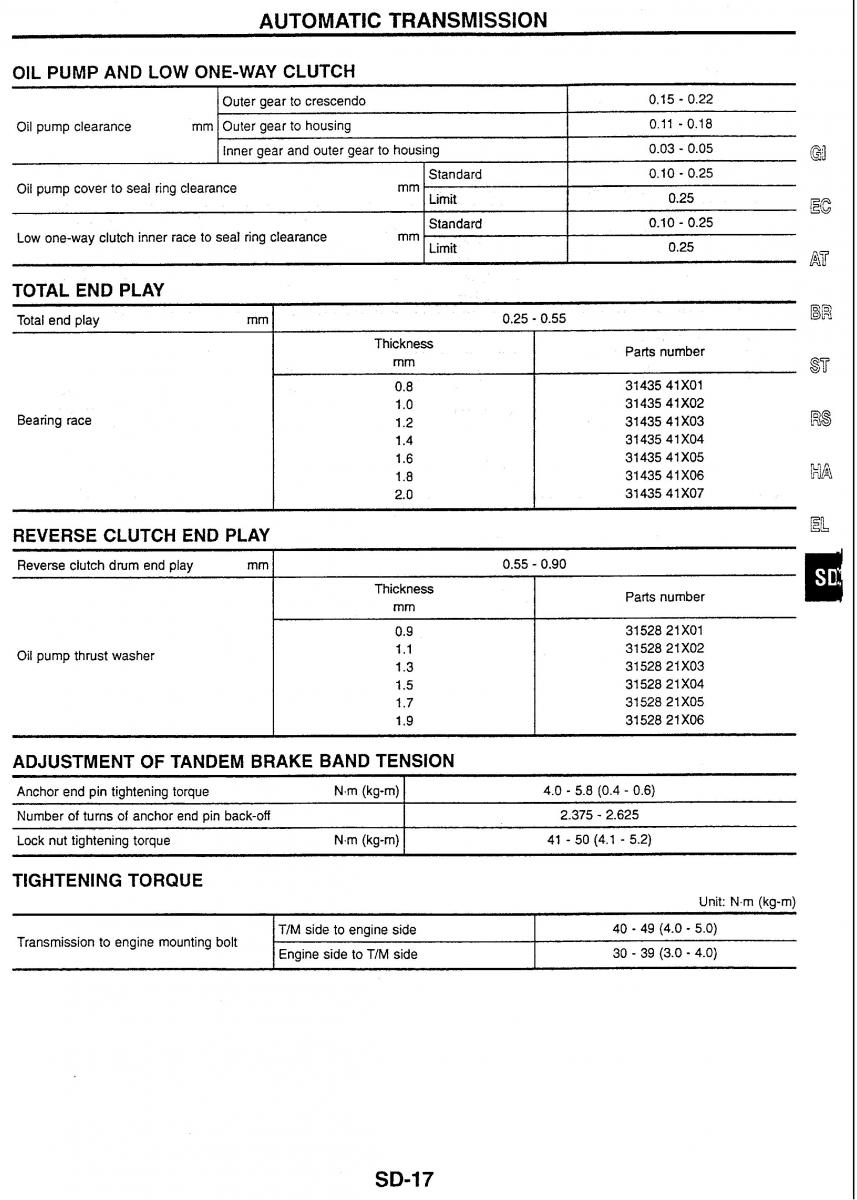

AUTOMATIC TRANSMISSIO OIL PUMP AND LOW ONE-WAY CLUTCH Outer gear to crescendo 0.1 5 - 0.22 Oil pump clearance mm Outer gear to housing 0.11 - 0.18 Inner gear and outer gear to housing 0.03 - 0.05 Oil pump cover to seal ring clearance mm , Standard 0.1 0 - 0.25 Limit 0.25 Low one-way clutch inner race to seal ring clearance mm Standard 0.10 - 0.25 Limit 0.25 - TOTAL END PLAY Total end play -- mm 0.25 - 0.55 Thickness I mm I Parts number Bearing race REVERSECLUTCHENDPLAY Reverse clutch drum end play mm 0.55 - 0.90 I Oil pump thrust washer ADJUSTMENT OF TANDEM BRAKE BAND TENSION Anchor end pin tightening torque N.m (kg-m) 4.0 - 5.8 (0.4 - 0.6) Number of turns of anchor end pin back-off I 2.375 - 2.625 Lock nut tightening torque N-m (kg-m) 41 - 50 (4.1 - 5.2) TIGHTENING TORQUE Unit: N.m (kg-m) I TIM side to engine side I 40 - 49 (4.0 - 5.0) Transmission to engine mounting bolt - - - - - - -- - - - - - - 30 - 39 (3.0 - 4.0) I Engine side to TIM side I
