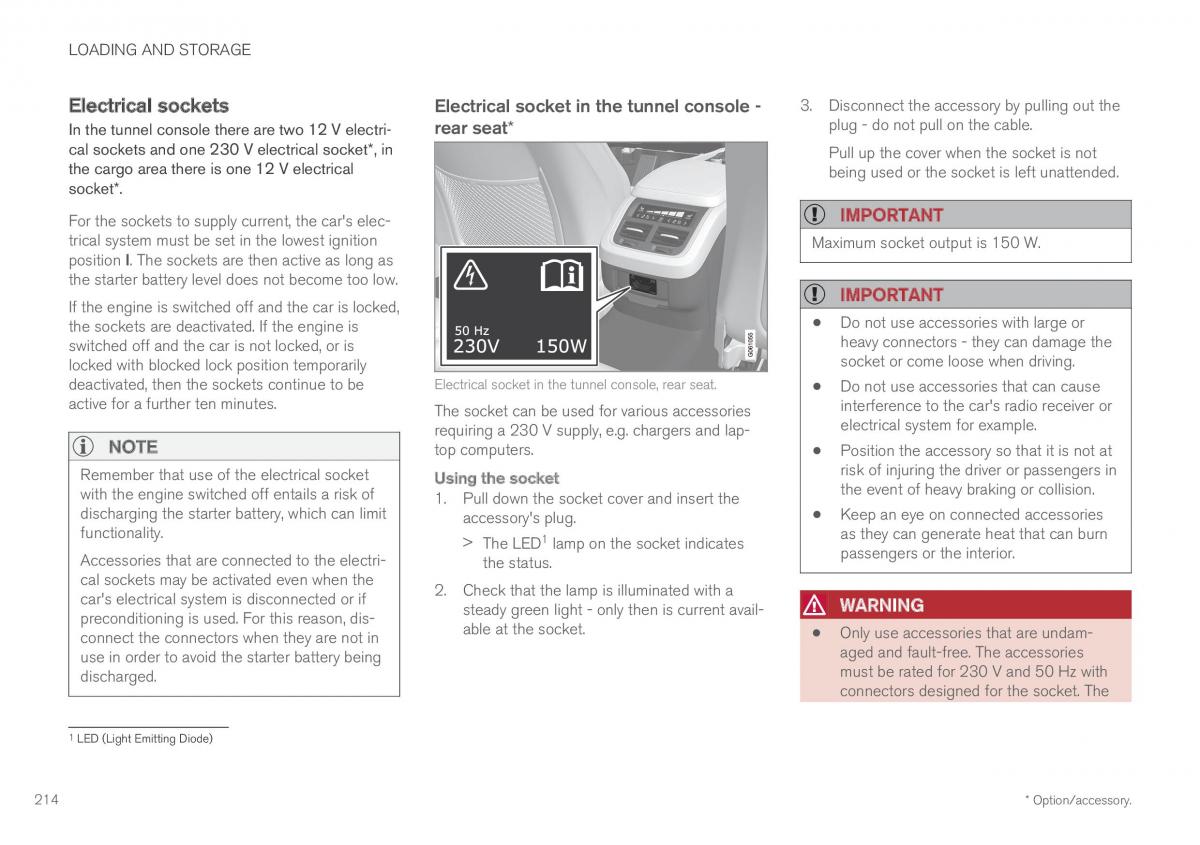

LOADING AND STORAGE
Electrical sockets Electrical socket in the tunnel console - 3. Disconnect the accessory by pulling out the
In the tunnel console there are two 12 V electri- rear seat* plug - do not pull on the cable.
cal sockets and one 230 V electrical socket*, in Pull up the cover when the socket is not
the cargo area there is one 12 V electrical being used or the socket is left unattended.
socket*.
For the sockets to supply current, the cars elec- IMPORTANT
trical system must be set in the lowest ignition Maximum socket output is 150 W.
position I. The sockets are then active as long as
the starter battery level does not become too low.
If the engine is switched off and the car is locked, IMPORTANT
Do not use accessories with large or
the sockets are deactivated. If the engine is •
switched off and the car is not locked, or is heavy connectors - they can damage the
locked with blocked lock position temporarily socket or come loose when driving.
deactivated, then the sockets continue to be Electrical socket in the tunnel console, rear seat. Do not use accessories that can cause
•
active for a further ten minutes. The socket can be used for various accessories interference to the cars radio receiver or
requiring a 230 V supply, e.g. chargers and lap- electrical system for example.
NOTE top computers. Position the accessory so that it is not at
•
Remember that use of the electrical socket Using the socket risk of injuring the driver or passengers in
with the engine switched off entails a risk of 1. Pull down the socket cover and insert the the event of heavy braking or collision.
discharging the starter battery, which can limit Keep an eye on connected accessories
accessorys plug. •
functionality. > 1 as they can generate heat that can burn
The LED lamp on the socket indicates passengers or the interior.
Accessories that are connected to the electri- the status.
cal sockets may be activated even when the 2. Check that the lamp is illuminated with a
cars electrical system is disconnected or if steady green light - only then is current avail- WARNING
preconditioning is used. For this reason, dis- able at the socket.
Only use accessories that are undam-
connect the connectors when they are not in •
use in order to avoid the starter battery being aged and fault-free. The accessories
discharged. must be rated for 230 V and 50 Hz with
connectors designed for the socket. The
1 LED (Light Emitting Diode)
214 * Option/accessory.
