text version of content this owner's manual page from owners manual to the vehicle Hyundai Getz, year of production 2002 - 2011:

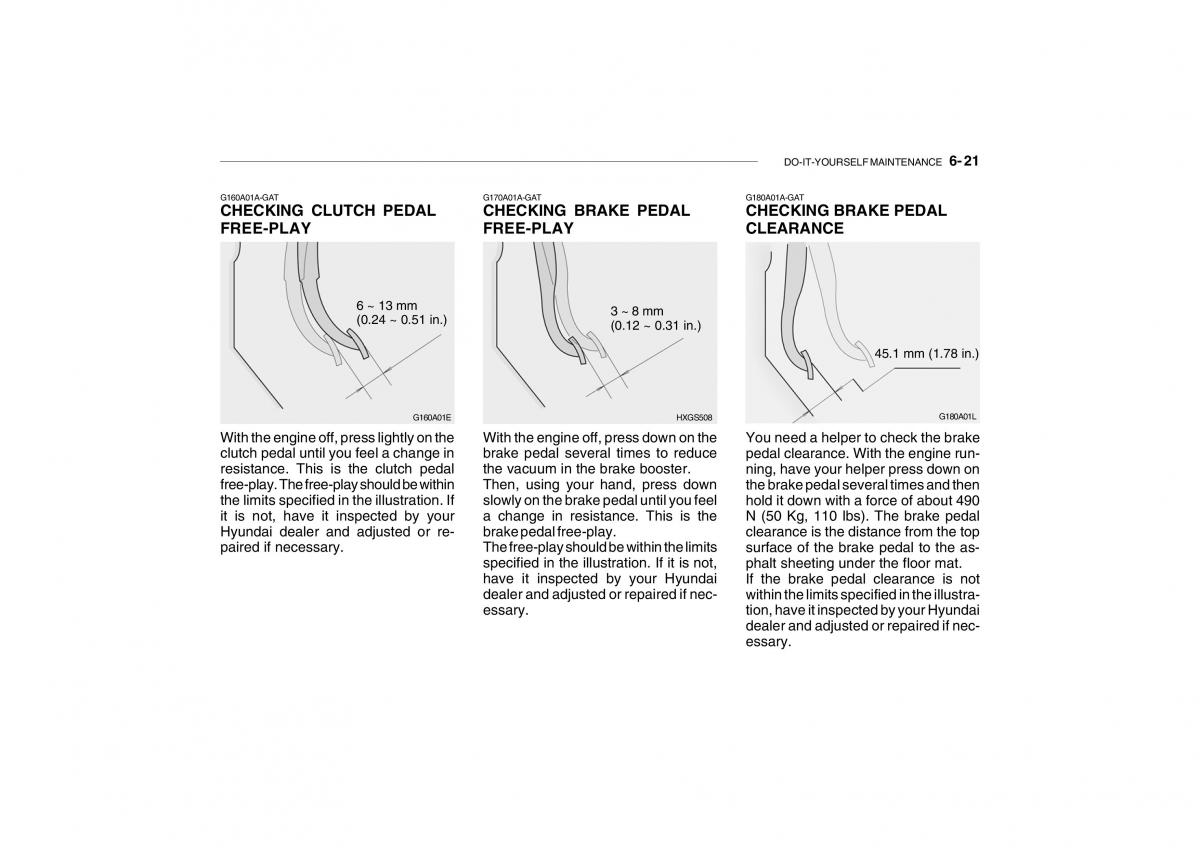

DO-IT-YOURSELF MAINTENANCE 6- 21 G160A01A-GAT G170A01A-GAT G180A01A-GAT CHECKING CLUTCH PEDALCHECKING BRAKE PEDAL CHECKING BRAKE PEDAL FREE-PLAY FREE-PLAY CLEARANCE 6 ~ 13 mm 3 ~ 8 mm (0.24 ~ 0.51 in.) (0.12 ~ 0.31 in.) 45.1 mm (1.78 in.) G160A01E HXGS508 G180A01L With the engine off, press lightly on theWith the engine off, press down on the You need a helper to check the brake clutch pedal until you feel a change in brake pedal several times to reduce pedal clearance. With the engine run- resistance. This is the clutch pedalthe vacuum in the brake booster. ning, have your helper press down on free-play. The free-play should be withinThen, using your hand, press down the brake pedal several times and then the limits specified in the illustration. Ifslowly on the brake pedal until you feelhold it down with a force of about 490 it is not, have it inspected by youra change in resistance. This is the N (50 Kg, 110 lbs). The brake pedal Hyundai dealer and adjusted or re-brake pedal free-play. clearance is the distance from the top paired if necessary. The free-play should be within the limitssurface of the brake pedal to the as- specified in the illustration. If it is not, phalt sheeting under the floor mat. have it inspected by your Hyundai If the brake pedal clearance is not dealer and adjusted or repaired if nec- within the limits specified in the illustra- essary. tion, have it inspected by your Hyundai dealer and adjusted or repaired if nec- essary.
