owners manual VW Beetle Convertible

owners manual VW Beetle Convertible - year of production: 2013 - VW Beetle Convertible owners manual EN

Document: pdf (5.52 MB) 281 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Beetle Convertible, year of production 2013:

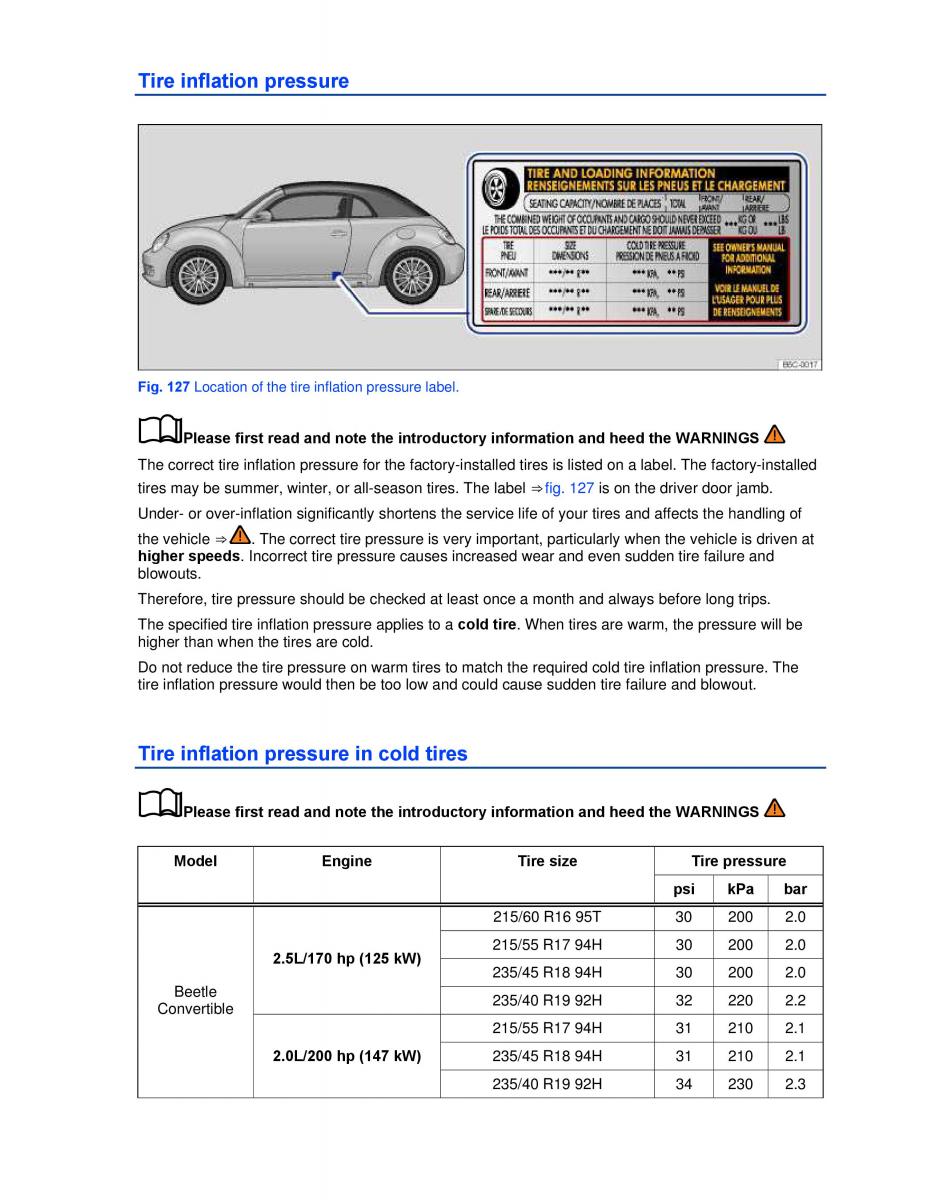

Tire inflation pressure Fig. 127 Location of the tire inflation pressure label. ¤Please first read and note the introductory information and heed the WARNINGS The correct tire inflation pressure for the factory-installed tires is listed on a label. The factory-installed tires may be summer, winter, or all-season tires. The label ⇒ fig. 127 is on the driver door jamb. Under- or over-inflation significantly shortens the service life of your tires and affects the handling of the vehicle ⇒ . The correct tire pressure is very important, particularly when the vehicle is driven at higher speeds. Incorrect tire pressure causes increased wear and even sudden tire failure and blowouts. Therefore, tire pressure should be checked at least once a month and always before long trips. The specified tire inflation pressure applies to a cold tire. When tires are warm, the pressure will be higher than when the tires are cold. Do not reduce the tire pressure on warm tires to match the required cold tire inflation pressure. The tire inflation pressure would then be too low and could cause sudden tire failure and blowout. Tire inflation pressure in cold tires ¤Please first read and note the introductory information and heed the WARNINGS Model Engine Tire size Tire pressure psi kPa bar 215/60 R16 95T 30 200 2.0 2.5L/170 hp (125 kW) 215/55 R17 94H 30 200 2.0 235/45 R18 94H 30 200 2.0 Beetle 235/40 R19 92H 32 220 2.2 Convertible 215/55 R17 94H 31 210 2.1 2.0L/200 hp (147 kW) 235/45 R18 94H 31 210 2.1 235/40 R19 92H 34 230 2.3
