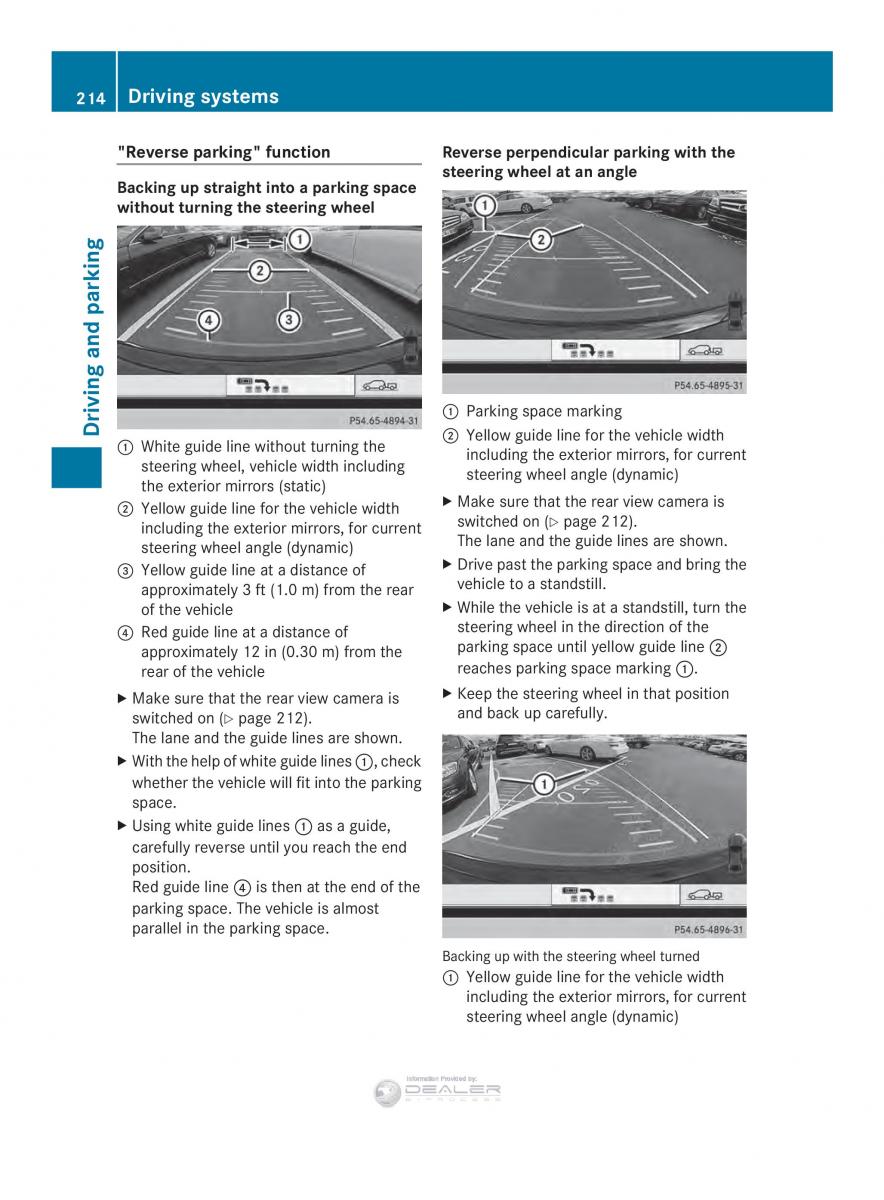

Driving systems
214
"Reverse parking" function Reverse perpendicular parking with the
steering wheel at an angle
Backing up straight into a parking space
without turning the steering wheel
: Parking space marking
parking
and
Driving
; Yellow guide line for the vehicle width
: White guide line without turning the
including the exterior mirrors, for current
steering wheel, vehicle width including
steering wheel angle (dynamic)
the exterior mirrors (static)
X
Make sure that the rear view camera is
; Yellow guide line for the vehicle width
switched on (Y page 212).
including the exterior mirrors, for current
The lane and the guide lines are shown.
steering wheel angle (dynamic)
X
Drive past the parking space and bring the
= Yellow guide line at a distance of
vehicle to a standstill.
approximately 3 ft (1.0 m) from the rear
X
While the vehicle is at a standstill, turn the
of the vehicle
steering wheel in the direction of the
? Red guide line at a distance of
parking space until yellow guide line ;
approximately 12 in (0.30 m) from the
reaches parking space marking :.
rear of the vehicle
X
Keep the steering wheel in that position
X
Make sure that the rear view camera is
and back up carefully.
switched on (Y page 212).
The lane and the guide lines are shown.
X
With the help of white guide lines :, check
whether the vehicle will fit into the parking
space.
X
Using white guide lines : as a guide,
carefully reverse until you reach the end
position.
Red guide line ? is then at the end of the
parking space. The vehicle is almost
parallel in the parking space.
Backing up with the steering wheel turned
: Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
