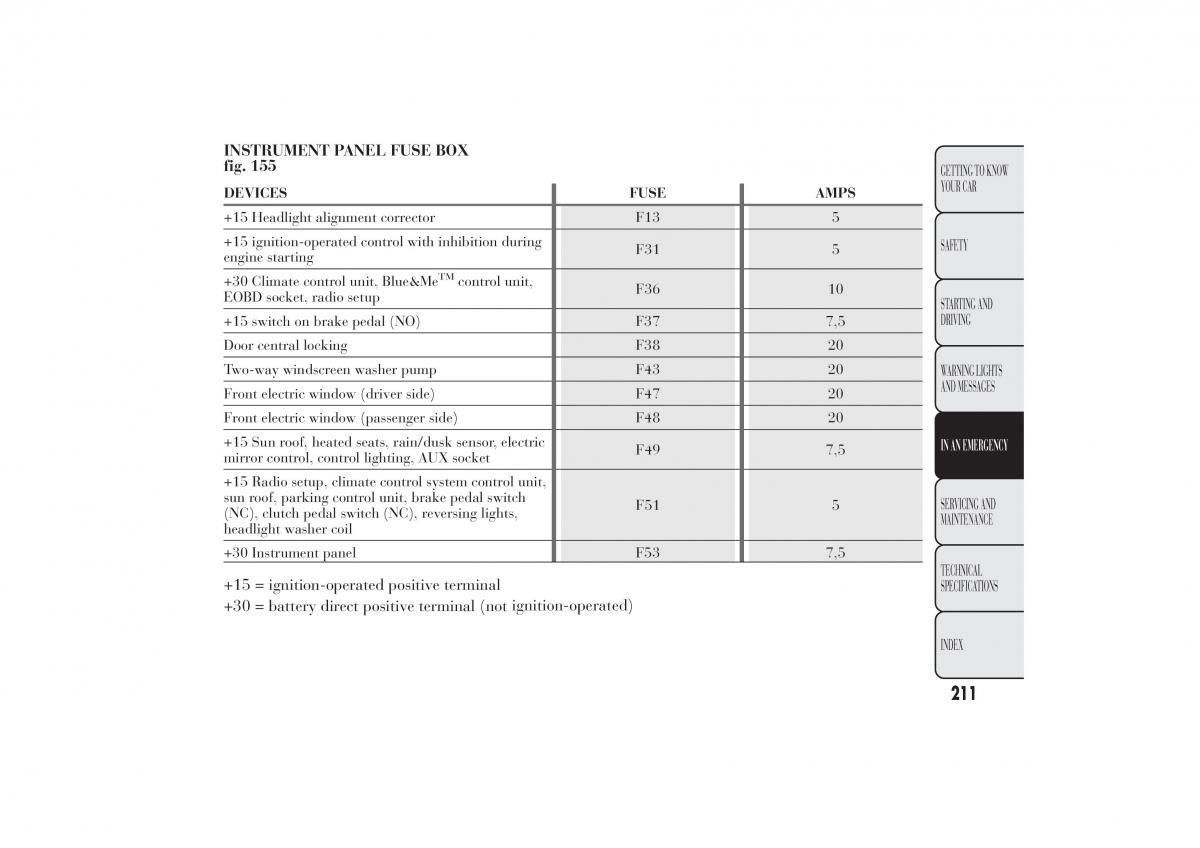

INSTRUMENTPANELFUSEBOX
fig. 155 GETTINGTOKNOW
DEVICES FUSE AMPS YOURCAR
+15Headlight alignment corrector F13 5
+15ignition-operated control with inhibition during F31 5 SAFETY
engine starting
TM
+30Climate control unit, Blue&Me control unit, F36 10
EOBDsocket, radio setup STARTINGAND
+15switch on brake pedal (NO) F37 7,5 DRIVING
Door central locking F38 20
Two-waywindscreen washer pump F43 20 WARNINGLIGHTS
Front electric window (driver side) F47 20 ANDMESSAGES
Front electric window (passenger side) F48 20
+15Sunroof, heated seats, rain/dusk sensor, electric F49 7,5 INANEMERGENCY
mirror control, control lighting, AUX socket
+15Radiosetup, climate control system control unit,
sun roof, parking control unit, brake pedal switch F51 5 SERVICINGAND
(NC), clutch pedal switch (NC), reversing lights, MAINTENANCE
headlight washer coil
+30Instrument panel F53 7,5
+15=ignition-operated positive terminal TECHNICAL
SPECIFICATIONS
+30=battery direct positive terminal (not ignition-operated)
INDEX
211
