text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

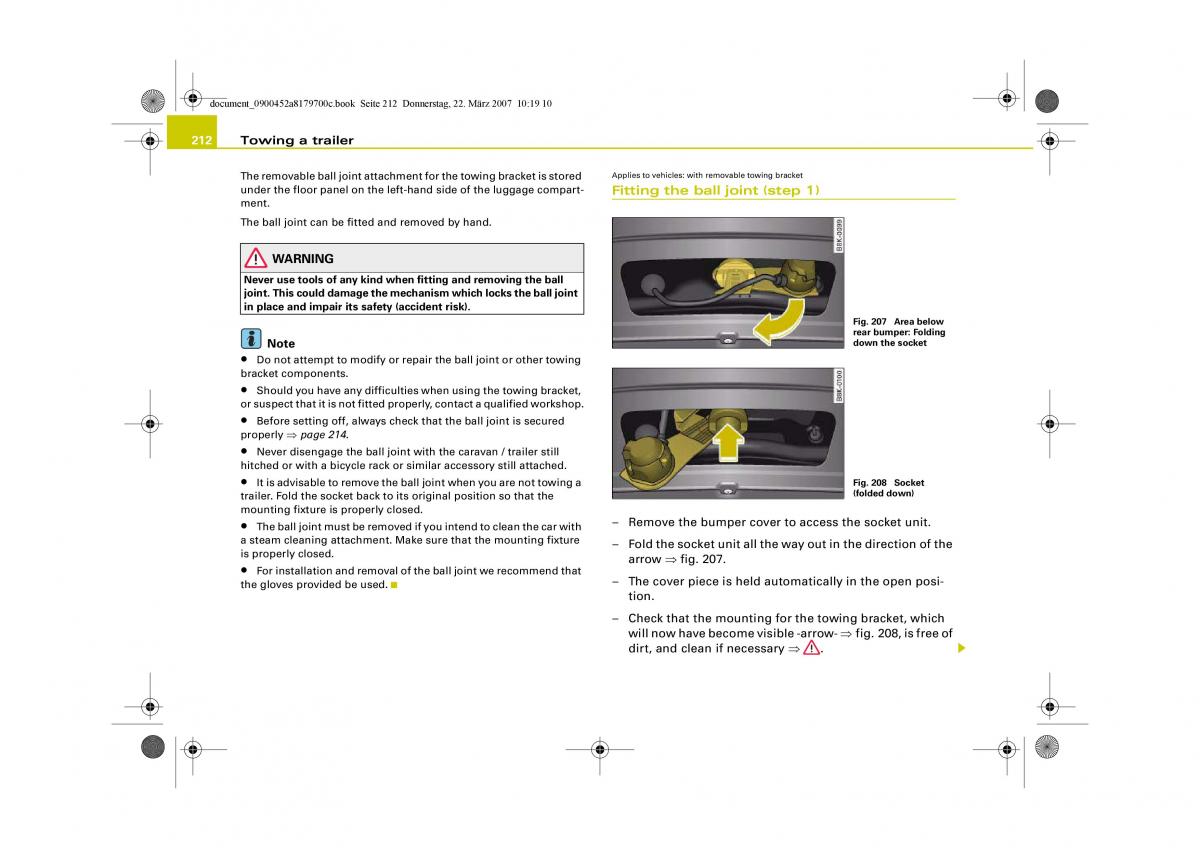

document_0900452a8179700c.book Seite 212 Donnerstag, 22. März 2007 10:19 10 212 Towing a trailer The removable ball joint attachment for the towing bracket is stored Applies to vehicles: with removable towing bracket under the floor panel on the left-hand side of the luggage compart-Fitting the ball joint (step 1) ment. The ball joint can be fitted and removed by hand. WARNING Never use tools of any kind when fitting and removing the ball joint. This coul d damage the mechanism wh ich locks the ball joint in place and impair its safety (accident risk). Fig. 207 Area below rear bumper: Folding Note down the socket • Do not attempt to modify or repair the ball joint or other towing bracket components. • Should you have any difficulties when using the towing bracket, or suspect that it is not fitted properly, contact a qualified workshop. • Before setting off, always check that the ball joint is secured properly ⇒ page 214. • Never disengage the ball joint with the caravan / trailer still hitched or with a bicycle rack or similar accessory still attached. • It is advisable to remove the ball joint when you are not towing a Fig. 208 Socket trailer. Fold the socket back to its original position so that the (folded down) mounting fixture is properly closed. • The ball joint must be removed if you intend to clean the car with – Remove the bumper cover to access the socket unit. a steam cleaning attachment. Make sure that the mounting fixture – Fold the socket unit all the way out in the direction of the is properly closed. arrow ⇒fig. 207. • For installation and removal of the ball joint we recommend that – The cover piece is held automatically in the open posi- the gloves provided be used. tion. – Check that the mounting for the towing bracket, which will now have become visible -arrow- ⇒fig. 208, is free of dirt, and clean if necessary ⇒ .
