text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

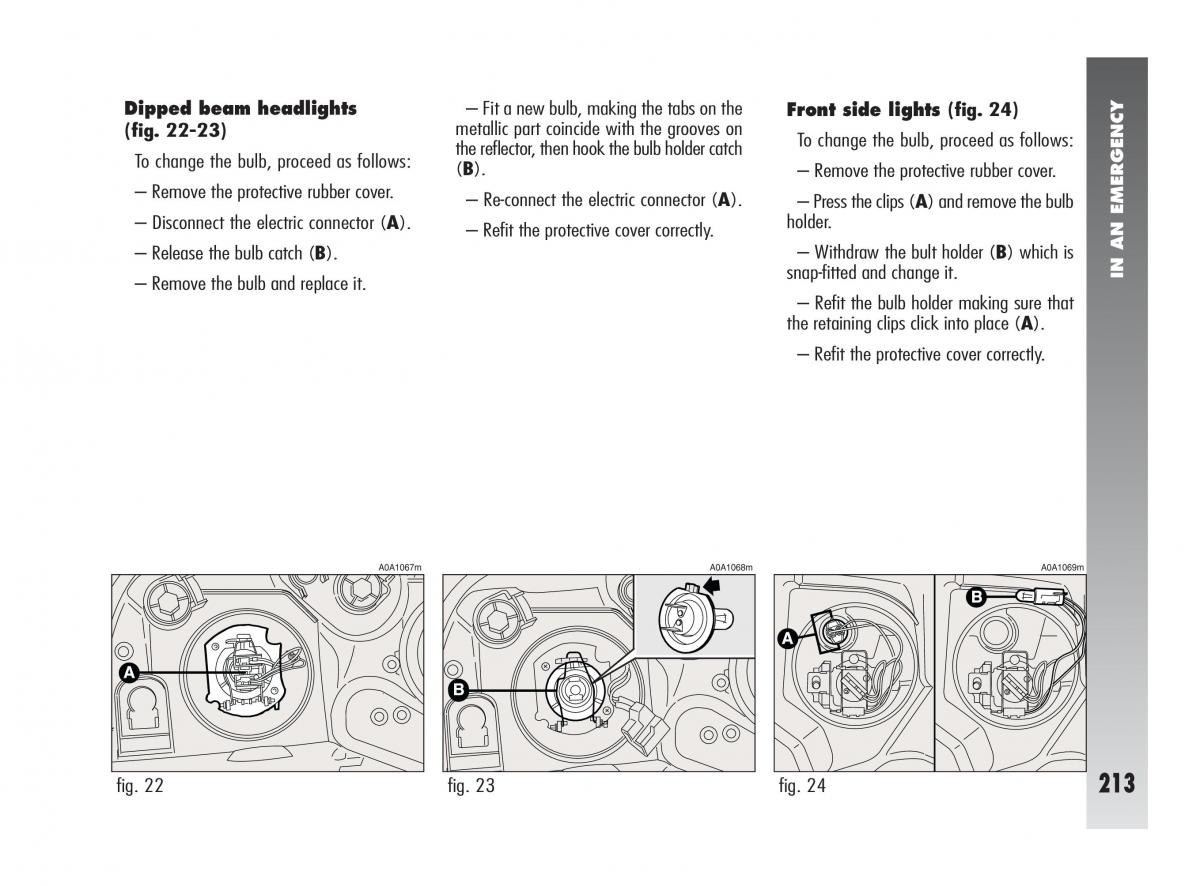

197-233_Alfa147 Q2 GB 4-07-2008 12:04 Pagina 213 Dipped beam headlights – Fit a new bulb, making the tabs on the Front side lights (fig. 24) (fig. 22-23) metallic part coincide with the grooves on To change the bulb, proceed as follows: the reflector, then hook the bulb holder catch To change the bulb, proceed as follows: (B). – Remove the protective rubber cover. – Remove the protective rubber cover. – Re-connect the electric connector (A). – Press the clips (A) and remove the bulb – Disconnect the electric connector (A). – Refit the protective cover correctly. holder. – Release the bulb catch (B). – Withdraw the bult holder ( B) which is – Remove the bulb and replace it. snap-fitted and change it. IN AN EMERGENCY – Refit the bulb holder making sure that the retaining clips click into place (A). – Refit the protective cover correctly. A0A1067m A0A1068m A0A1069m fig. 22 fig. 23 fig. 24 213
