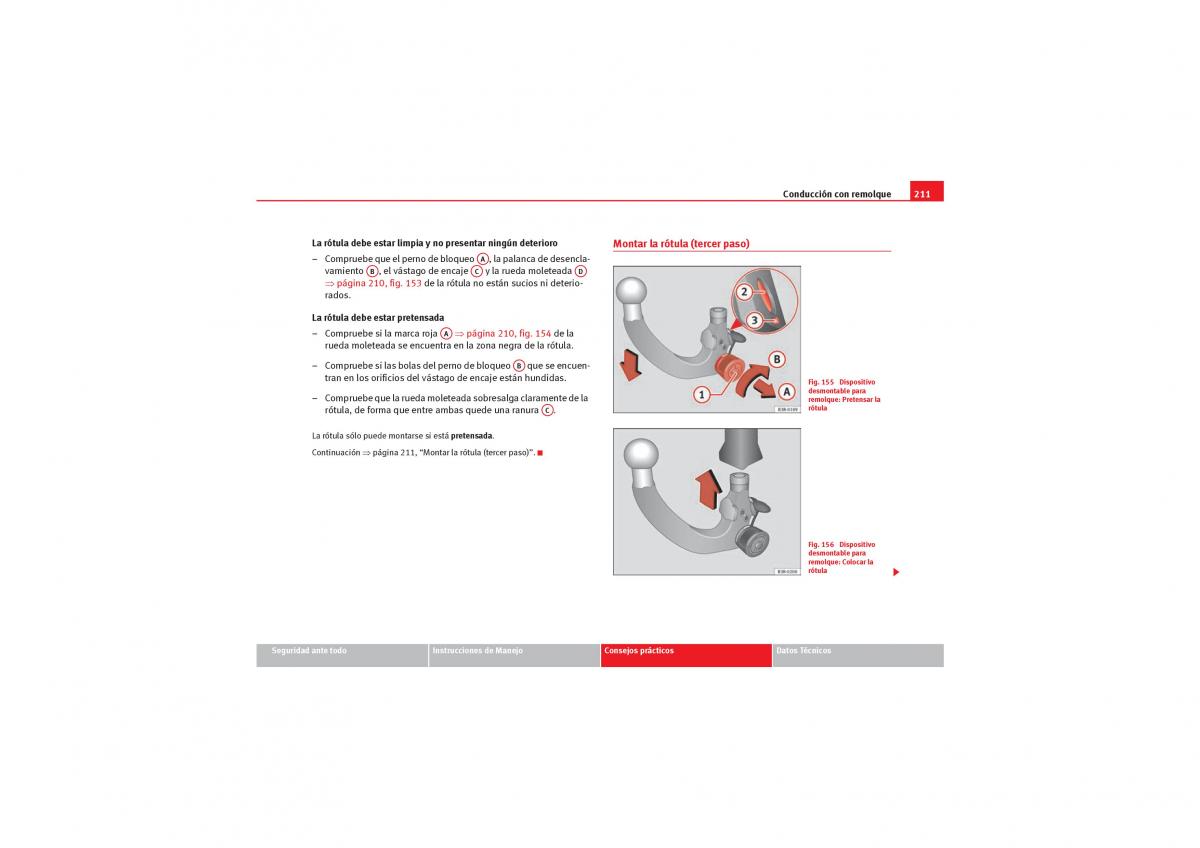

Exeo_ES.book Seite 211 Donnerstag, 22. Juli 2010 9:37 09
Conducción con remolque 211
La rótula debe estar limpia y no presentar ningún deterioroMontar la rótula (tercer paso)
A
– Compruebe que el perno de bloqueo A, la palanca de desencla-
vamiento B , el vástago de encaje C y la rueda moleteada D
A A A
⇒página210, fig.153 de la rótula no están sucios ni deterio-
rados.
La rótula debe estar pretensada
A
–Compruebe si la marca roja ⇒ página210, fig.154 de la
A
rueda moleteada se encuentra en la zona negra de la rótula.
– Compruebe si las bolas del perno de bloqueo B que se encuen-
A
tran en los orificios del vástago de encaje están hundidas. Fig. 155 Dispositivo
– Compruebe que la rueda moleteada sobresalga claramente de la desmontable para
remolque: Pretensar la
rótula, de forma que entre ambas quede una ranura C . rótula
A
La rótula sólo puede montarse si está pretensada.
Continuación ⇒página211, “Montar la rótula (tercer paso)”.
Fig. 156 Dispositivo
desmontable para
remolque: Colocar la
rótula
Seguridad ante todo Instrucciones de Manejo Consejos prácticos Datos Técnicos
