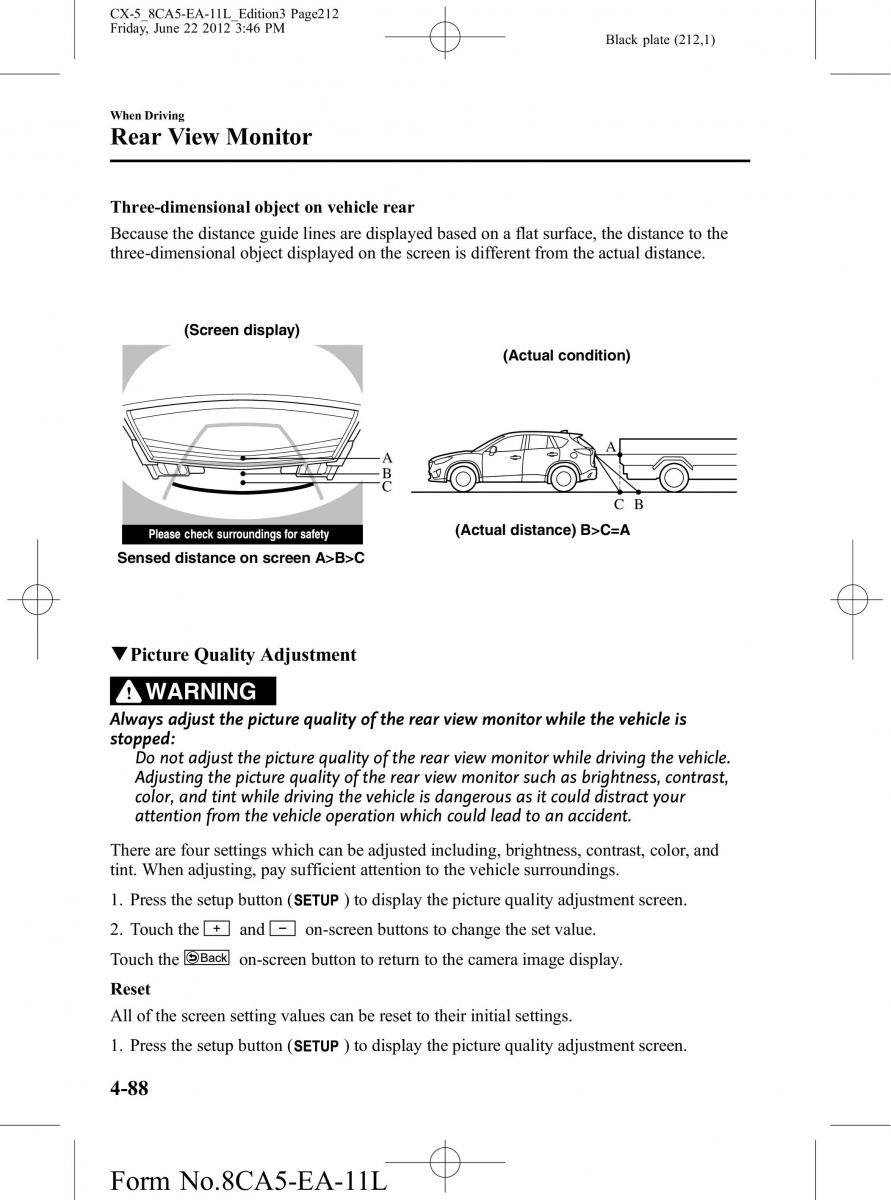

CX-5_8CA5-EA-11L_Edition3 Page212
Friday, June 22 2012 3:46 PM
Black plate (212,1)
WhenDriving
RearViewMonitor
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
(Screen display)
(Actual condition)
A A
B
C
CB
(Actual distance) B>C=A
Sensed distance on screen A>B>C
qPictureQualityAdjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is
stopped:
Donotadjust the picture quality of the rear view monitor while driving the vehicle.
Adjusting the picture quality of the rear view monitor such as brightness, contrast,
color, and tint while driving the vehicle is dangerous as it could distract your
attention from the vehicle operation which could lead to an accident.
There are four settings which can be adjusted including, brightness, contrast, color, and
tint. When adjusting, pay sufficient attention to the vehicle surroundings.
1. Press the setup button () to display the picture quality adjustment screen.
2. Touch the and on-screen buttons to change the set value.
Touch the on-screen button to return to the camera image display.
Reset
All of the screen setting values can be reset to their initial settings.
1. Press the setup button () to display the picture quality adjustment screen.
4-88
Form No.8CA5-EA-11L
