owners manual VW Golf VI GTI

owners manual VW Golf VI GTI - year of production: 2008, 2009, 2010, 2011, 2012, 2013 - VW Golf VI 6 GTI owners manual EN

Document: pdf (5.43 MB) 319 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VI GTI, year of production 2008 - 2013:

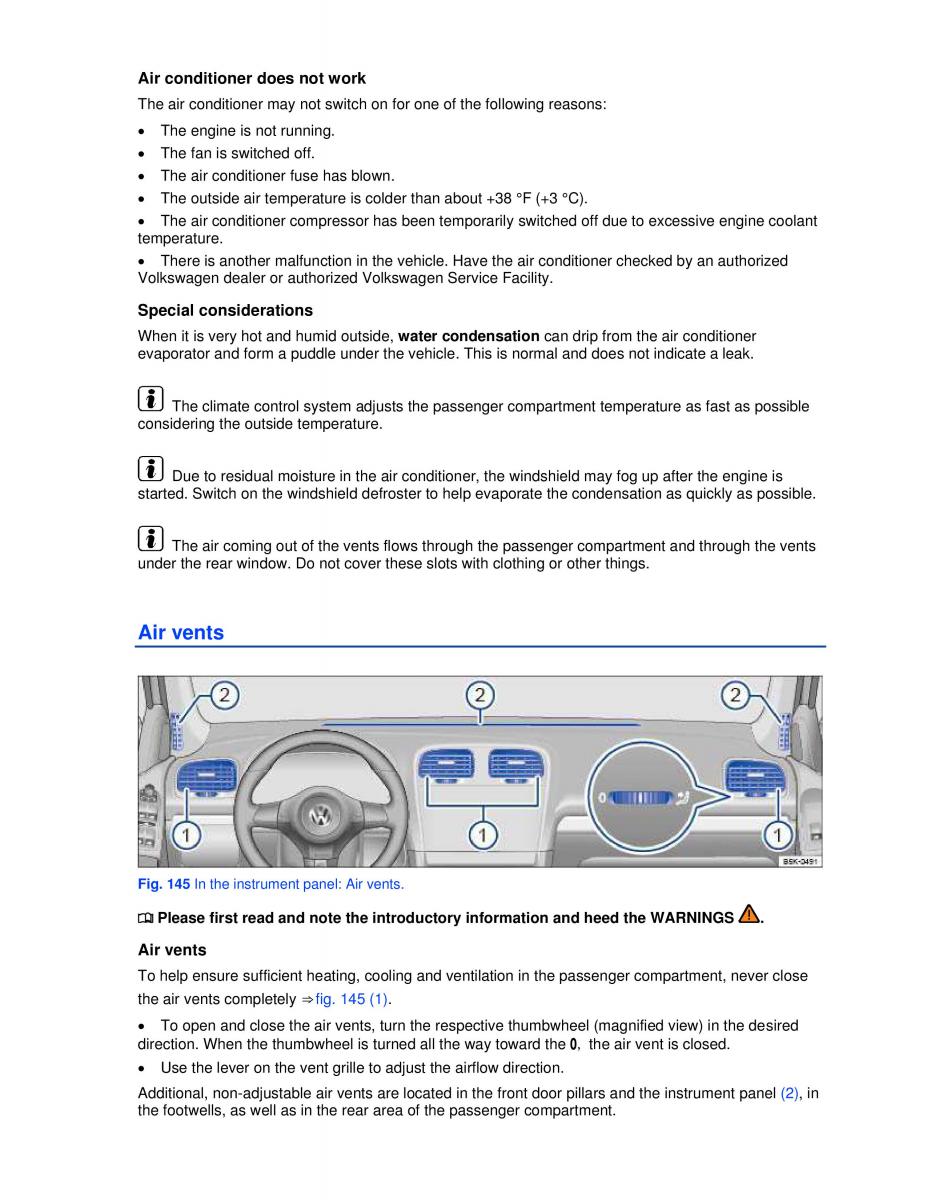

Air conditioner does not work The air conditioner may not switch on for one of the following reasons: x The engine is not running. x The fan is switched off. x The air conditioner fuse has blown. x The outside air temperature is colder than about +38 °F (+3 °C). x The air conditioner compressor has been temporarily switched off due to excessive engine colaont temperature. x There is another malfunction in the vehicle. Have the air conditioner checked by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Special considerations When it is very hot and humid outside, water condensation can drip from the air conditioner evaporator and form a puddle under the vehicle. This is normal and does not indicate a leak. The climate control system adjusts the passenger compartment temperature as fast as possible considering the outside temperature. Due to residual moisture in the air conditioner, the windshield may fog up after the engine is started. Switch on the windshield defroster to help evaporate the condensation as quickly as possible. The air coming out of the vents flows through the passenger compartment and through the vents under the rear window. Do not cover these slots with clothing or other things. Air vents Fig. 145 In the instrument panel: Air vents. ¤ Please first read and note the introductory information and heed the WARNINGS . Air vents To help ensure sufficient heating, cooling and ventilation in the passenger compartment, never close fig. 145 (1). the air vents completely ⇒ x To open and close the air vents, turn the respective thumbwheel (magnified view) in the dsireed direction. When the thumbwheel is turned all the way toward the /, the air vent is closed. x Use the lever on the vent grille to adjust the airflow direction. Additional, non-adjustable air vents are located in the front door pillars and the instrument panel (2), in the footwells, as well as in the rear area of the passenger compartment.
