owners manual VW Golf VI

all ratings: 2 average rating: 2

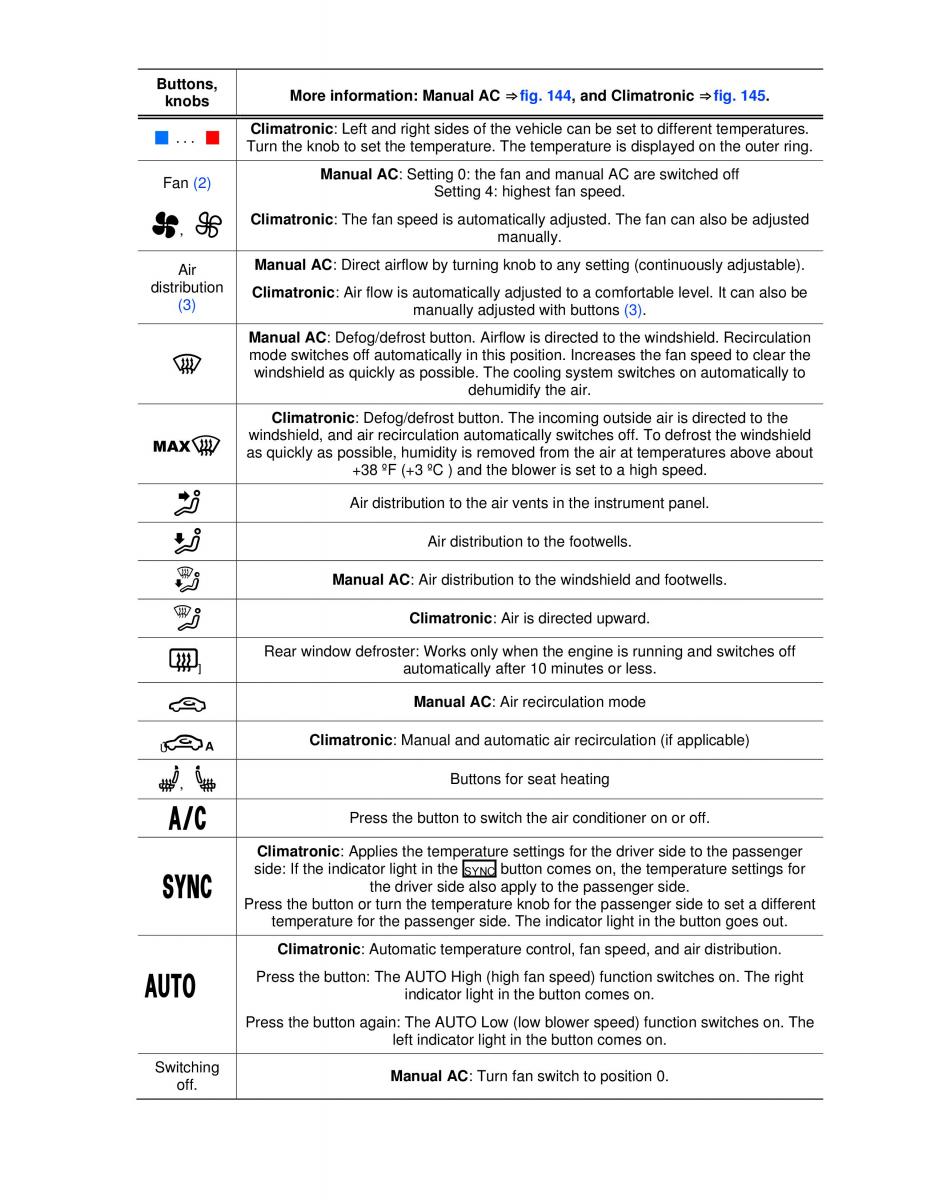

Buttons, More information: Manual AC ⇒ fig. 144, and Climatronic ⇒ fig. 145. knobs  .  Climatronic: Left and right sides of the vehicle can be set to different temperatures. Turn the knob to set the temperature. The temperature is displayed on the outer ring. Fan (2) Manual AC: Setting 0: the fan and manual AC are switched off Setting 4: highest fan speed. e, ® Climatronic: The fan speed is automatically adjusted. The fan can also be adjusted manually. Air Manual AC: Direct airflow by turning knob to any setting (continuously adjustable). distribution Climatronic: Air flow is automatically adjusted to a comfortable level. It can also be (3) manually adjusted with buttons (3). Manual AC: Defog/defrost button. Airflow is directed to the windshield. Recirculation < mode switches off automatically in this position. Increases the fan speed to clear the windshield as quickly as possible. The cooling system switches on automatically to dehumidify the air. Climatronic: Defog/defrost button. The incoming outside air is directed to the  windshield, and air recirculation automatically switches off. To defrost the windshield as quickly as possible, humidity is removed from the air at temperatures above about +38 ºF (+3 ºC ) and the blower is set to a high speed. K Air distribution to the air vents in the instrument panel. L Air distribution to the footwells. u Manual AC: Air distribution to the windshield and footwells. Climatronic: Air is directed upward. = Rear window defroster: Works only when the engine is running and switches off ] automatically after 10 minutes or less. 3 Manual AC: Air recirculation mode ž Climatronic: Manual and automatic air recirculation (if applicable) Û A, [ Buttons for seat heating !‡# Press the button to switch the air conditioner on or off. Climatronic: Applies the temperature settings for the driver side to the passenger side: If the indicator light in the SYNC button comes on, the temperature settings for 39.# the driver side also apply to the passenger side. Press the button or turn the temperature knob for the passenger side to set a different temperature for the passenger side. The indicator light in the button goes out. Climatronic: Automatic temperature control, fan speed, and air distribution. !54/ Press the button: The AUTO High (high fan speed) function switches on. The right indicator light in the button comes on. Press the button again: The AUTO Low (low blower speed) function switches on. The left indicator light in the button comes on. Switching Manual AC: Turn fan switch to position 0. off.
