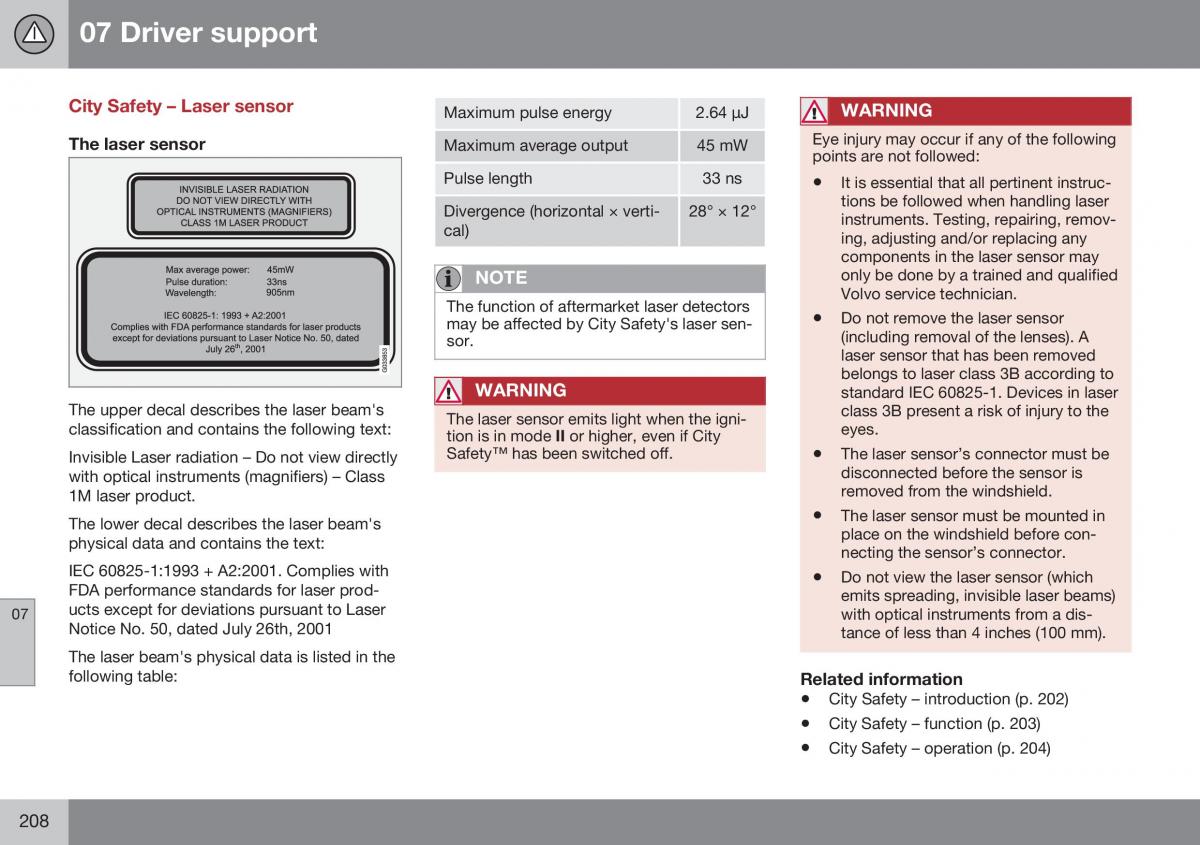

07 Driver support City Safety – Laser sensor Maximum pulse energy2.64 μJ WARNING Eye injury may occur if any of the following The laser sensor Maximum average output45 mW points are not followed: Pulse length 33 ns • It is essential that all pertinent instruc- tions be followed when handling laser Divergence (horizontal × verti-28° × 12° instruments. Testing, repairing, remov- cal) ing, adjusting and/or replacing any components in the laser sensor may only be done by a trained and qualified NOTE Volvo service technician. The function of aftermarket laser detectors • Do not remove the laser sensor may be affected by City Safety's laser sen- (including removal of the lenses). A sor. laser sensor that has been removed belongs to laser class 3B according to WARNING standard IEC 60825-1. Devices in laser The upper decal describes the laser beam's class 3B present a risk of injury to the The laser sensor emits light when the igni- classification and contains the following text: eyes. tion is in mode II or higher, even if City Safety™ has been switched off. The laser sensor’s connector must be • Invisible Laser radiation – Do not view directly disconnected before the sensor is with optical instruments (magnifiers) – Class removed from the windshield. 1M laser product. • The laser sensor must be mounted in The lower decal describes the laser beam's place on the windshield before con- physical data and contains the text: necting the sensor’s connector. IEC 60825-1:1993 + A2:2001. Complies with • Do not view the laser sensor (which FDA performance standards for laser prod- emits spreading, invisible laser beams) ucts except for deviations pursuant to Laser 07 with optical instruments from a dis- Notice No. 50, dated July 26th, 2001 tance of less than 4 inches (100 mm). The laser beam's physical data is listed in the following table: Related information • City Safety – introduction (p. 202) • City Safety – function (p. 203) • City Safety – operation (p. 204) 208
