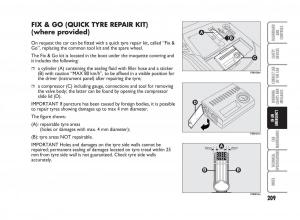

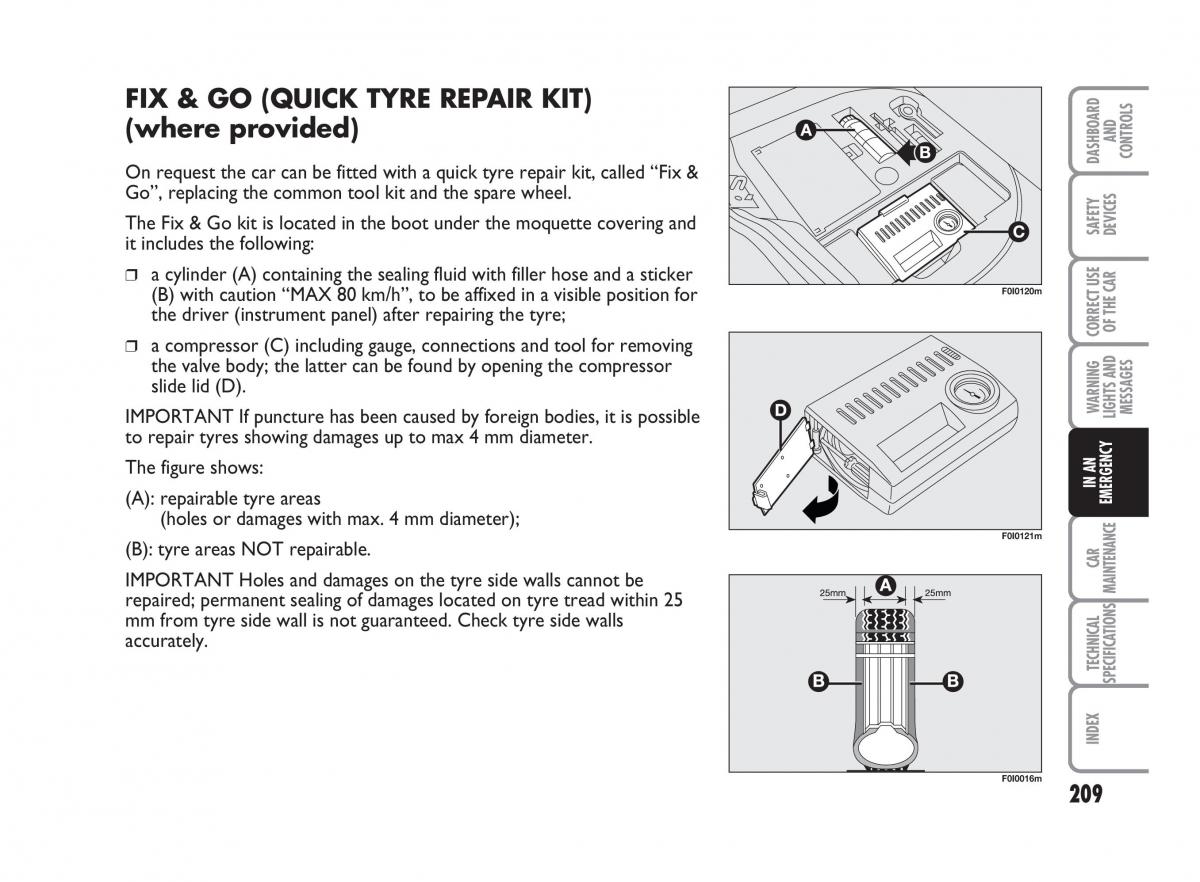

FIX & GO (QUICK TYRE REPAIR KIT)
(where provided) AND
DASHBOARDCONTROLS
On request the car can be fitted with a quick tyre repair kit, called “Fix &
Go”, replacing the common tool kit and the spare wheel.
The Fix & Go kit is located in the boot under the moquette covering and SAFETYDEVICES
it includes the following:
❒ a cylinder (A) containing the sealing fluid with filler hose and a sticker
(B) with caution “MAX 80 km/h”, to be affixed in a visible position for F0I0120m
the driver (instrument panel) after repairing the tyre; CORRECT USE OF THE CAR
❒ a compressor (C) including gauge, connections and tool for removing
the valve body; the latter can be found by opening the compressor
slide lid (D). ARNING
IMPORTANT If puncture has been caused by foreign bodies, it is possible W LIGHTS ANDMESSAGES
to repair tyres showing damages up to max 4 mm diameter.
The figure shows: IN AN
(A): repairable tyre areas EMERGENCY
(holes or damages with max. 4 mm diameter);
(B): tyre areas NOT repairable. F0I0121m
CAR
IMPORTANT Holes and damages on the tyre side walls cannot be MAINTENANCE
repaired; permanent sealing of damages located on tyre tread within 25
mm from tyre side wall is not guaranteed. Check tyre side walls TIONS
accurately.
TECHNICALSPECIFICA
INDEX
F0I0016m
209
