UK AURIS_HV_HB_OM_EE_OM12J68E.book 210 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分

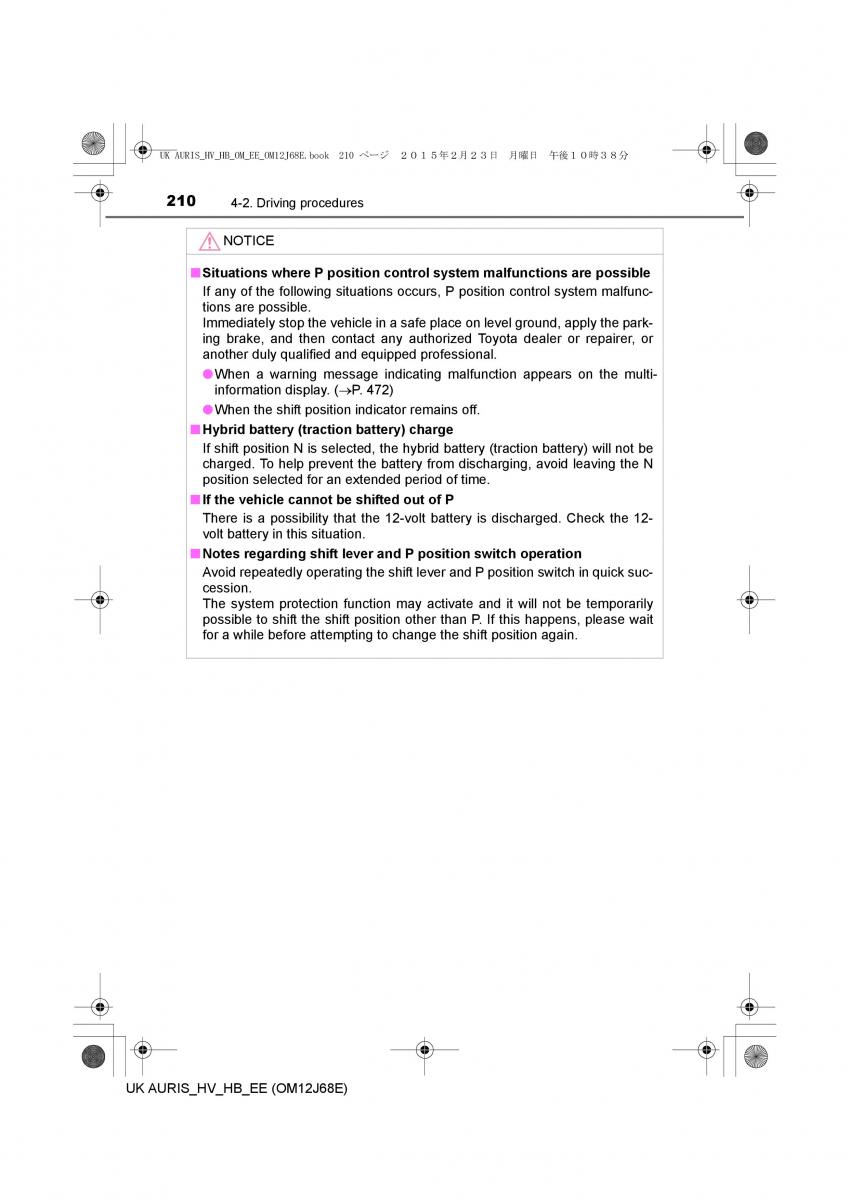

210 4-2. Driving procedures
NOTICE
■Situations where P position control system malfunctions are possible
If any of the following situations occurs, P position control system malfunc-
tions are possible.
Immediately stop the vehicle in a safe place on level ground, apply the park-
ing brake, and then contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
●When a warning message indicating malfunction appears on the multi-
information display. (→P. 472)
●When the shift position indicator remains off.
■Hybrid battery (traction battery) charge
If shift position N is selected, the hybrid battery (traction battery) will not be
charged. To help prevent the battery from discharging, avoid leaving the N
position selected for an extended period of time.
■If the vehicle cannot be shifted out of P
There is a possibility that the 12-volt battery is discharged. Check the 12-
volt battery in this situation.
■Notes regarding shift lever and P position switch operation
Avoid repeatedly operating the shift lever and P position switch in quick suc-
cession.
The system protection function may activate and it will not be temporarily
possible to shift the shift position other than P. If this happens, please wait
for a while before attempting to change the shift position again.
UK AURIS_HV_HB_EE (OM12J68E)
