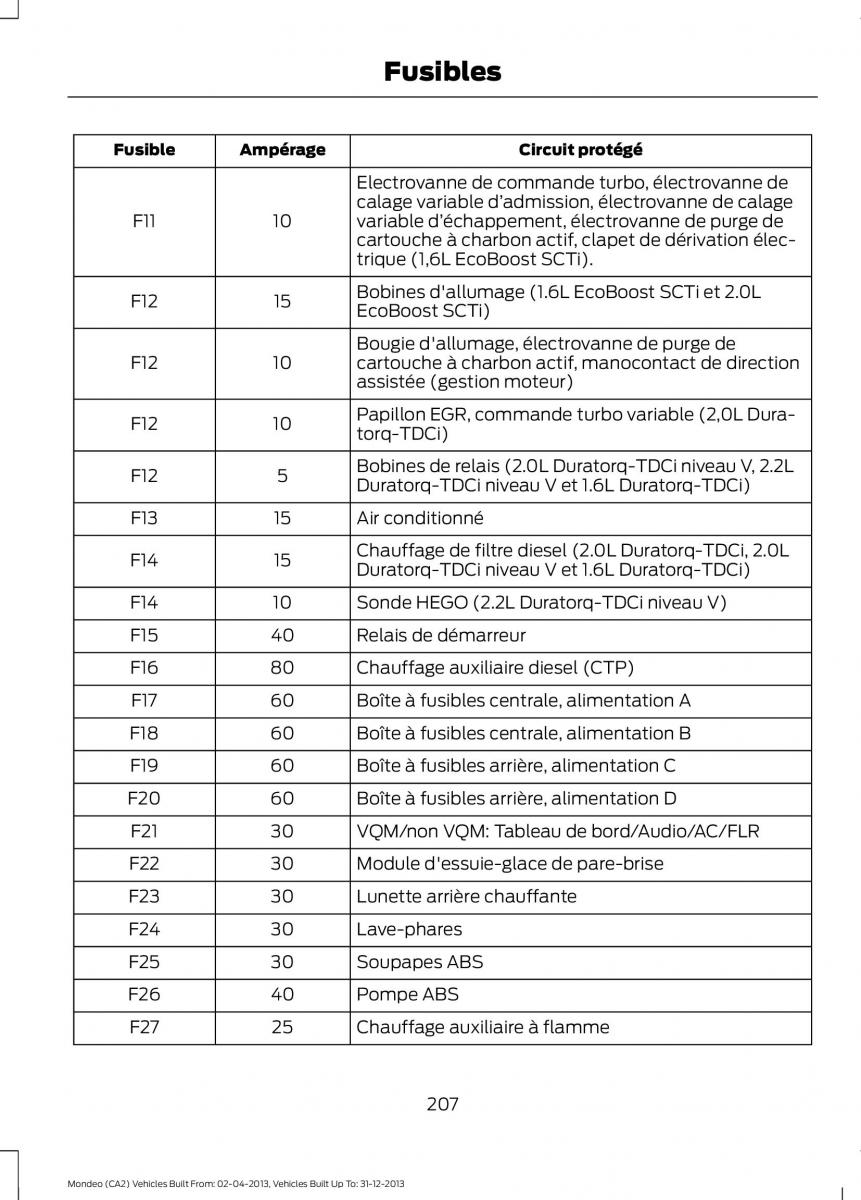

Fusibles
Fusible Ampérage Circuit protégé
Electrovanne de commande turbo, électrovanne de
calage variable d’admission, électrovanne de calage
F11 10 variable d’échappement, électrovanne de purge de
cartouche à charbon actif, clapet de dérivation élec-
trique (1,6L EcoBoost SCTi).
F12 15 Bobines d'allumage (1.6L EcoBoost SCTi et 2.0L
EcoBoost SCTi)
Bougie d'allumage, électrovanne de purge de
F12 10 cartouche à charbon actif, manocontact de direction
assistée (gestion moteur)
F12 10 Papillon EGR, commande turbo variable (2,0L Dura-
torq-TDCi)
F12 5 Bobines de relais (2.0L Duratorq-TDCi niveau V, 2.2L
Duratorq-TDCi niveau V et 1.6L Duratorq-TDCi)
F13 15 Air conditionné
F14 15 Chauffage de filtre diesel (2.0L Duratorq-TDCi, 2.0L
Duratorq-TDCi niveau V et 1.6L Duratorq-TDCi)
F14 10 Sonde HEGO (2.2L Duratorq-TDCi niveau V)
F15 40 Relais de démarreur
F16 80 Chauffage auxiliaire diesel (CTP)
F17 60 Boîte à fusibles centrale, alimentation A
F18 60 Boîte à fusibles centrale, alimentation B
F19 60 Boîte à fusibles arrière, alimentation C
F20 60 Boîte à fusibles arrière, alimentation D
F21 30 VQM/non VQM: Tableau de bord/Audio/AC/FLR
F22 30 Module d'essuie-glace de pare-brise
F23 30 Lunette arrière chauffante
F24 30 Lave-phares
F25 30 Soupapes ABS
F26 40 Pompe ABS
F27 25 Chauffage auxiliaire à flamme
207
Mondeo (CA2) Vehicles Built From: 02-04-2013, Vehicles Built Up To: 31-12-2013
