text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 159, year of production 2005 - 2011:

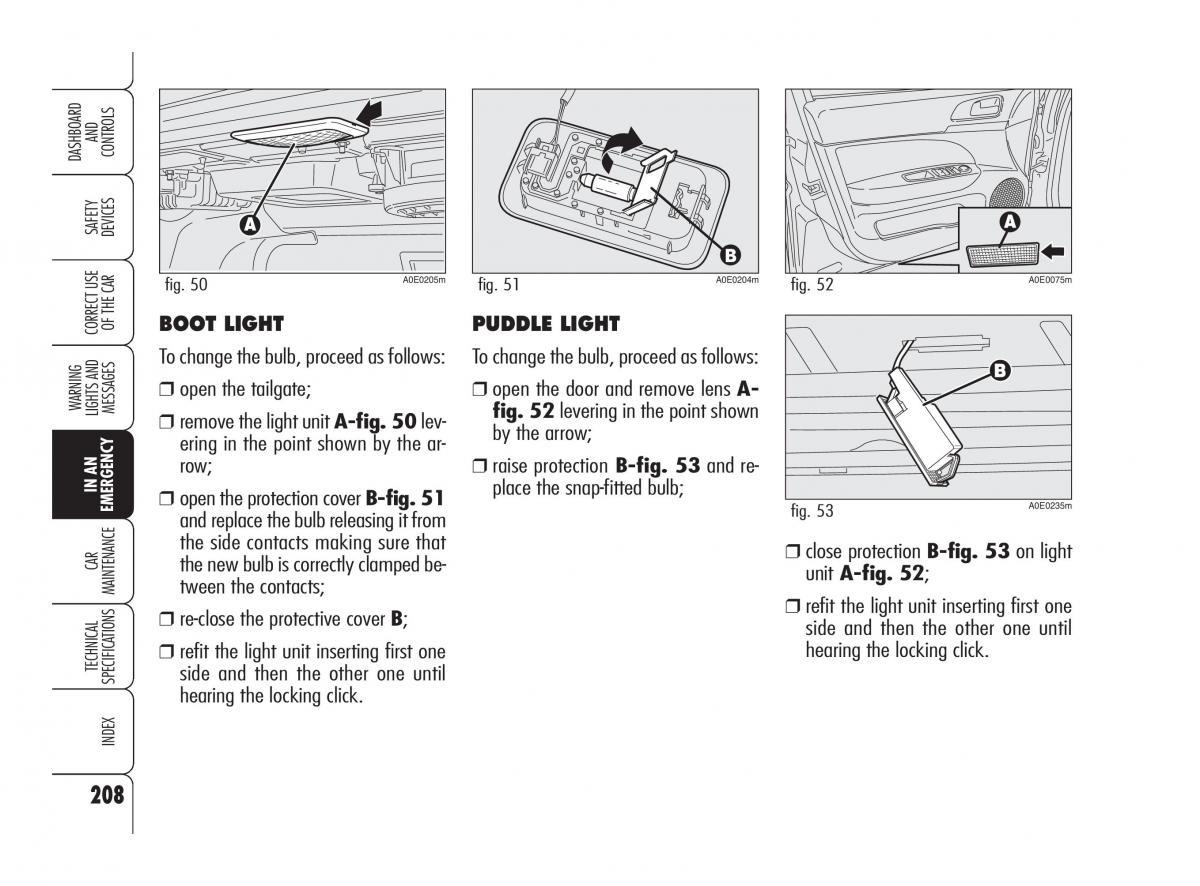

181-222 Alfa 159 GB 3-12-2009 14:10 Pagina 208 AND DASHBOARDCONTROLS SAFETY DEVICES fig. 50 A0E0205m fig. 51 A0E0204m fig. 52 A0E0075m CORRECT USE OF THE CARBOOT LIGHT PUDDLE LIGHT To change the bulb, proceed as follows: To change the bulb, proceed as follows: RNING ❒open the tailgate; ❒open the door and remove lens A- A W LIGHTS AND MESSAGES❒remove the light unit A-fig. 50 lev-fig. 52 levering in the point shown by the arrow; ering in the point shown by the ar- row; ❒raise protectionB-fig. 53and re- IN AN ❒open the protection cover B-fig. 51 place the snap-fitted bulb; EMERGENCY and replace the bulb releasing it from fig. 53 A0E0235m the side contacts making sure that ❒close protection B-fig. 53 on light CAR the new bulb is correctly clamped be- unit A-fig. 52; MAINTENANCEtween the contacts; ❒re-close the protective cover B; ❒refit the light unit inserting first one TIONS side and then the other one until ❒refit the light unit inserting first one hearing the locking click. TECHNICAL side and then the other one until SPECIFICA hearing the locking click. INDEX 208
