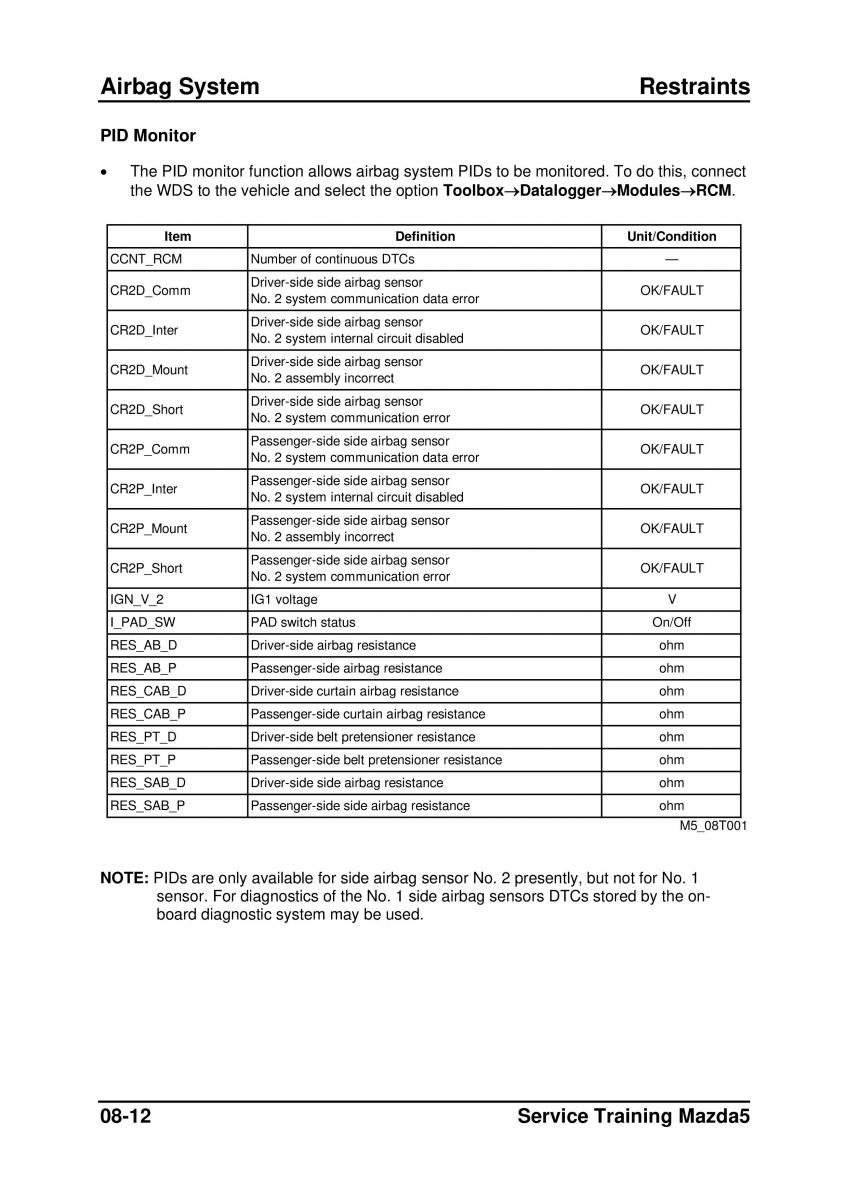

Airbag System Restraints
PID Monitor
• The PID monitor function allows airbag system PIDs to be monitored. To do this, connect
the WDS to the vehicle and select the option Toolbox→Datalogger→Modules→RCM.
Item Definition Unit/Condition
CCNT_RCM Number of continuous DTCs —
CR2D_Comm Driver-side side airbag sensor OK/FAULT
No. 2 system communication data error
CR2D_Inter Driver-side side airbag sensor OK/FAULT
No. 2 system internal circuit disabled
CR2D_Mount Driver-side side airbag sensor OK/FAULT
No. 2 assembly incorrect
CR2D_Short Driver-side side airbag sensor OK/FAULT
No. 2 system communication error
CR2P_Comm Passenger-side side airbag sensor OK/FAULT
No. 2 system communication data error
CR2P_Inter Passenger-side side airbag sensor OK/FAULT
No. 2 system internal circuit disabled
CR2P_Mount Passenger-side side airbag sensor OK/FAULT
No. 2 assembly incorrect
CR2P_Short Passenger-side side airbag sensor OK/FAULT
No. 2 system communication error
IGN_V_2 IG1 voltage V
I_PAD_SW PAD switch status On/Off
RES_AB_D Driver-side airbag resistance ohm
RES_AB_P Passenger-side airbag resistance ohm
RES_CAB_D Driver-side curtain airbag resistance ohm
RES_CAB_P Passenger-side curtain airbag resistanceohm
RES_PT_D Driver-side belt pretensioner resistanceohm
RES_PT_P Passenger-side belt pretensioner resistanceohm
RES_SAB_D Driver-side side airbag resistance ohm
RES_SAB_P Passenger-side side airbag resistance ohm
M5_08T001
NOTE: PIDs are only available for side airbag sensor No. 2 presently, but not for No. 1
sensor. For diagnostics of the No. 1 side airbag sensors DTCs stored by the on-
board diagnostic system may be used.
08-12 Service Training Mazda5
