owners manual Ford Edge

all ratings: 0 average rating: 5

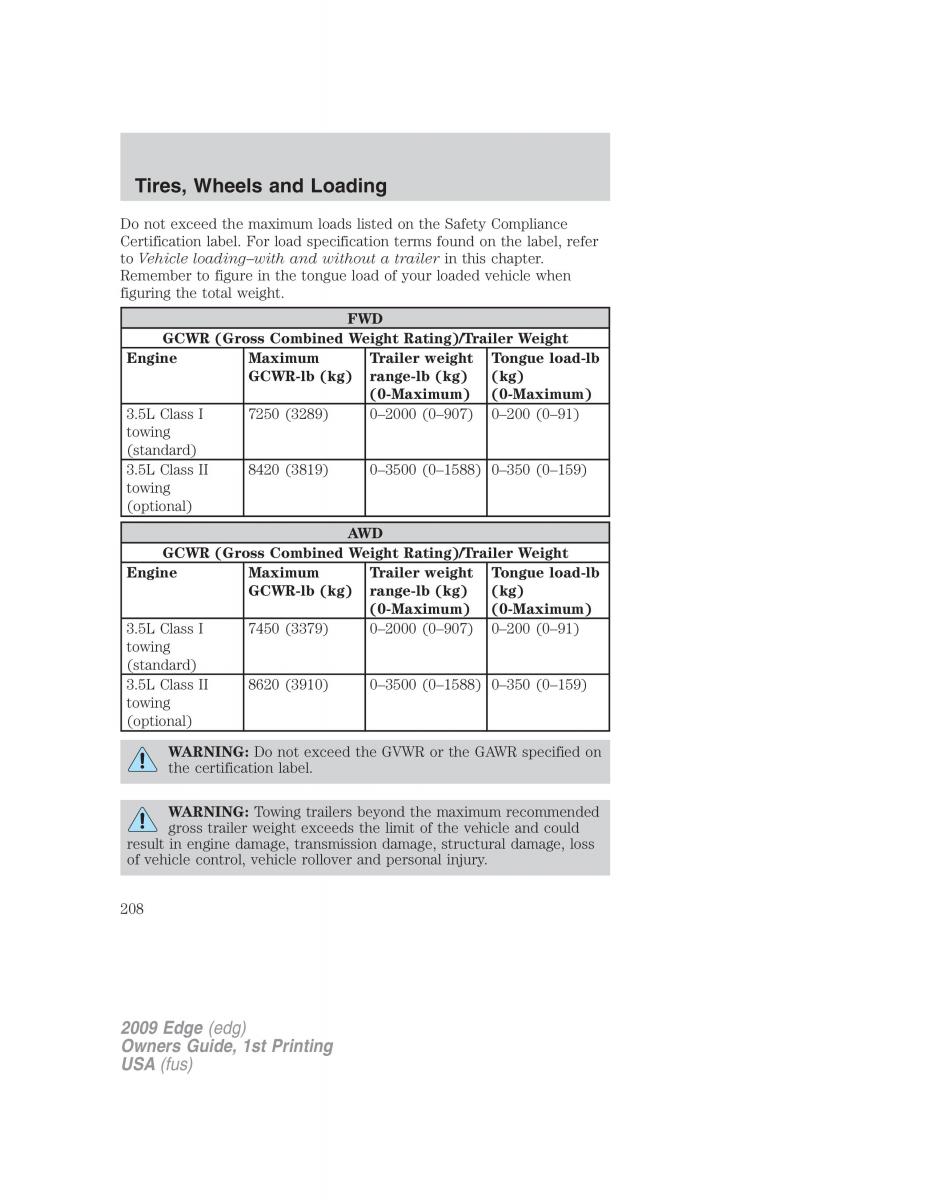

Tires, Wheels and Loading Do not exceed the maximum loads listed on the Safety Compliance Certification label. For load specification terms found on the label, refer to Vehicle loading–with and without a trailer in this chapter. Remember to figure in the tongue load of your loaded vehicle when figuring the total weight. FWD GCWR(GrossCombinedWeight Rating)/Trailer Weight Engine Maximum Trailer weightTongue load-lb GCWR-lb (kg)range-lb (kg)(kg) (0-Maximum)(0-Maximum) 3.5L Class I7250 (3289)0–2000 (0–907)0–200 (0–91) towing (standard) 3.5L Class II8420 (3819)0–3500 (0–1588) 0–350 (0–159) towing (optional) AWD GCWR(GrossCombinedWeight Rating)/Trailer Weight Engine Maximum Trailer weightTongue load-lb GCWR-lb (kg)range-lb (kg)(kg) (0-Maximum)(0-Maximum) 3.5L Class I7450 (3379)0–2000 (0–907)0–200 (0–91) towing (standard) 3.5L Class II8620 (3910)0–3500 (0–1588) 0–350 (0–159) towing (optional) WARNING:Donot exceed the GVWR or the GAWR specified on the certification label. WARNING:Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury. 208 2009 Edge (edg) Owners Guide, 1st Printing USA(fus)
