owners manual VW Golf VI GTI
owners manual VW Golf VI GTI - year of production: 2008, 2009, 2010, 2011, 2012, 2013 - VW Golf VI 6 GTI owners manual EN
Document: pdf (5.43 MB) 319 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle VW Golf VI GTI, year of production 2008 - 2013:

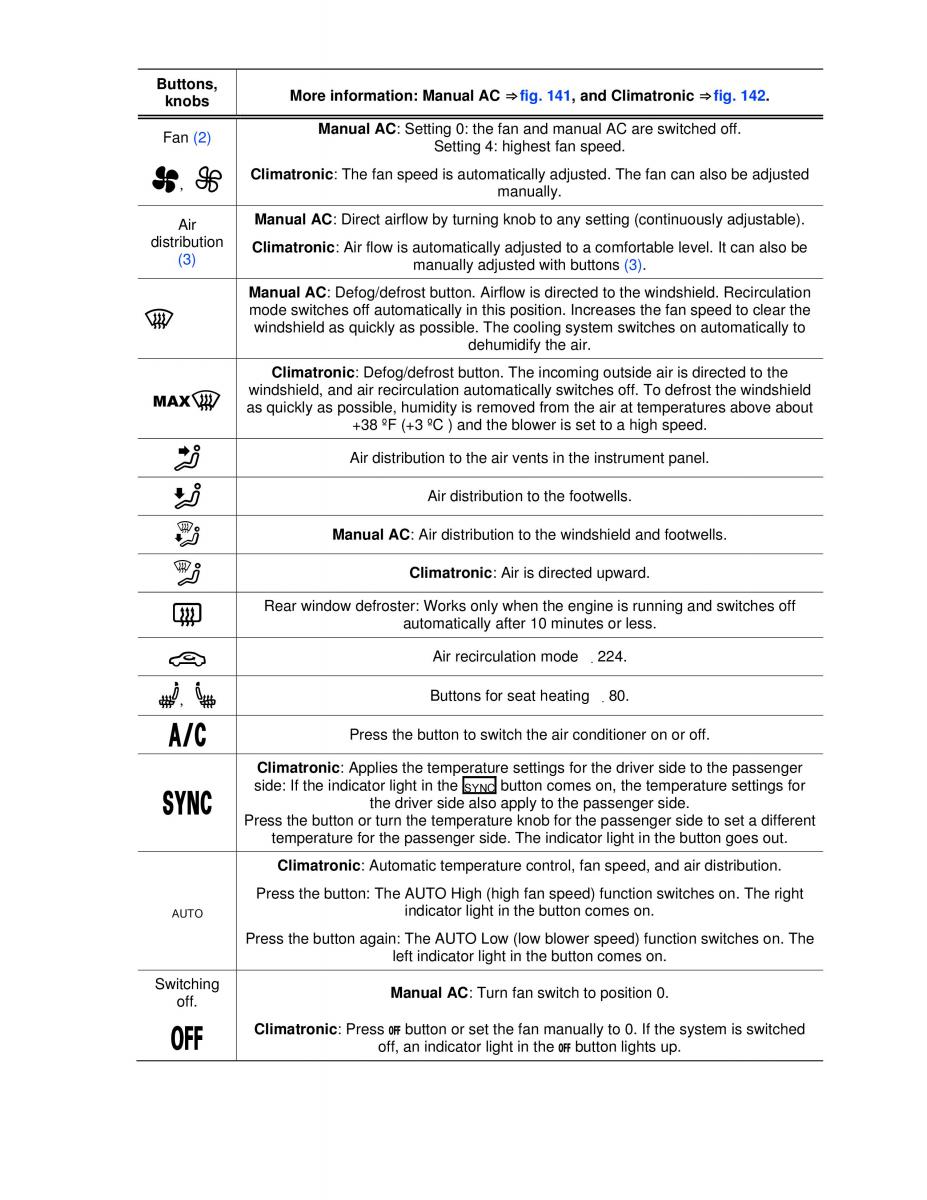

Buttons, More information: Manual AC ⇒ fig. 141, and Climatronic ⇒ fig. 142.
knobs
Fan (2) Manual AC: Setting 0: the fan and manual AC are switched off.
Setting 4: highest fan speed.
e, ® Climatronic: The fan speed is automatically adjusted. The fan can also be adjusted
manually.
Air Manual AC: Direct airflow by turning knob to any setting (continuously adjustable).
distribution Climatronic: Air flow is automatically adjusted to a comfortable level. It can also be
(3) manually adjusted with buttons (3).
Manual AC: Defog/defrost button. Airflow is directed to the windshield. Recirculation
< mode switches off automatically in this position. Increases the fan speed to clear the
windshield as quickly as possible. The cooling system switches on automatically to
dehumidify the air.
Climatronic: Defog/defrost button. The incoming outside air is directed to the
windshield, and air recirculation automatically switches off. To defrost the windshield
as quickly as possible, humidity is removed from the air at temperatures above about
+38 ºF (+3 ºC ) and the blower is set to a high speed.
K Air distribution to the air vents in the instrument panel.
L Air distribution to the footwells.
u Manual AC: Air distribution to the windshield and footwells.
Climatronic: Air is directed upward.
= Rear window defroster: Works only when the engine is running and switches off
automatically after 10 minutes or less.
Air recirculation mode 224.
3 .
Buttons for seat heating 80.
A, [ .
!# Press the button to switch the air conditioner on or off.
Climatronic: Applies the temperature settings for the driver side to the passenger
side: If the indicator light in the SYNC button comes on, the temperature settings for
39.# the driver side also apply to the passenger side.
Press the button or turn the temperature knob for the passenger side to set a different
temperature for the passenger side. The indicator light in the button goes out.
Climatronic: Automatic temperature control, fan speed, and air distribution.
Press the button: The AUTO High (high fan speed) function switches on. The right
indicator light in the button comes on.
AUTO
Press the button again: The AUTO Low (low blower speed) function switches on. The
left indicator light in the button comes on.
Switching Manual AC: Turn fan switch to position 0.
off.
/&& Climatronic: Press /&& button or set the fan manually to 0. If the system is switched
off, an indicator light in the /&& button lights up.
