10_Cayenne_21_KW17.book Seite 208 Donnerstag, 9. April 2009 3:33 15

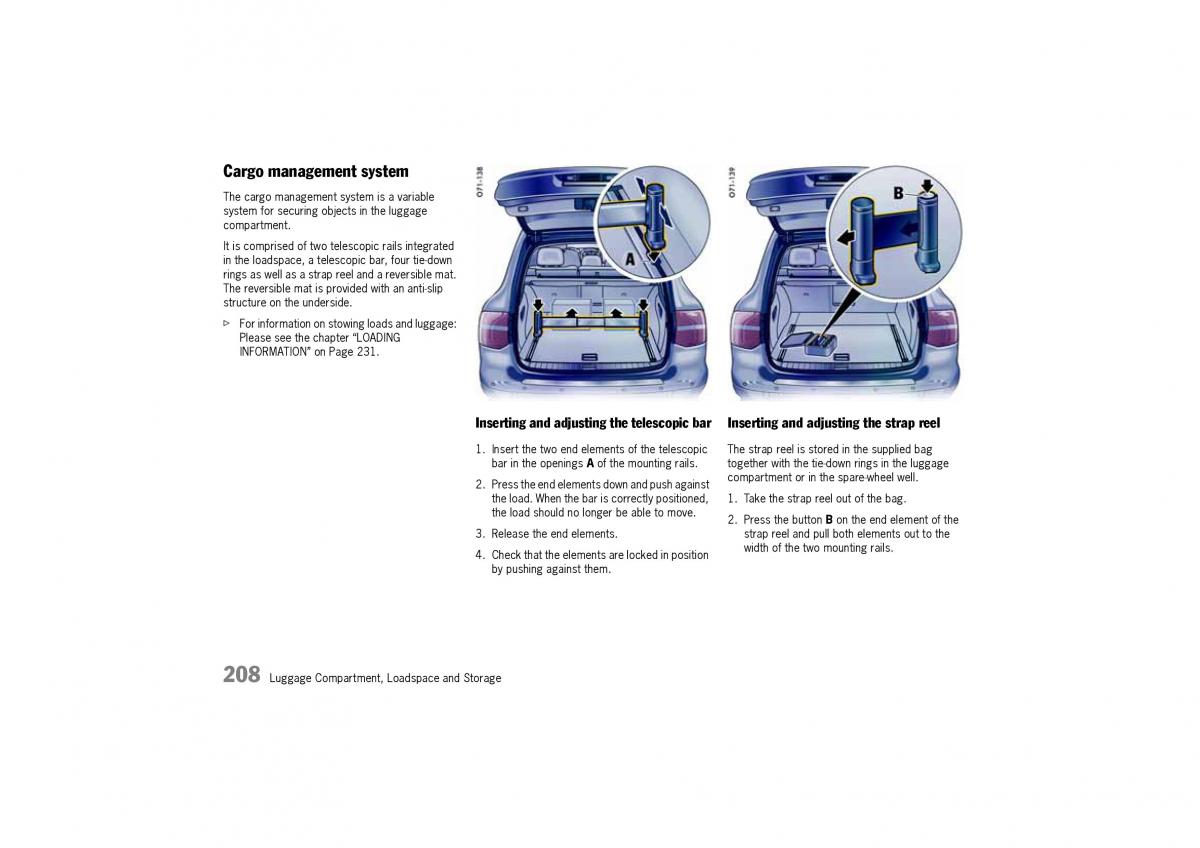

Cargo management system
The cargo management system is a variable
system for securing objects in the luggage
compartment.
It is comprised of two telescopic rails integrated
in the loadspace, a telescopic bar, four tie-down
rings as well as a strap reel and a reversible mat.
The reversible mat is provided with an anti-slip
structure on the underside.
f For information on stowing loads and luggage:
Please see the chapter “LOADING
INFORMATION” on Page 231.
Inserting and adjusting the telescopic barInserting and adjusting the strap reel
1. Insert the two end elements of the telescopic The strap reel is stored in the supplied bag
bar in the openings A of the mounting rails.together with the tie-down rings in the luggage
2. Press the end elements down and push against compartment or in the spare-wheel well.
the load. When the bar is correctly positioned, 1. Take the strap reel out of the bag.
the load should no longer be able to move.2. Press the button B on the end element of the
3. Release the end elements. strap reel and pull both elements out to the
4. Check that the elements are locked in position width of the two mounting rails.
by pushing against them.
208 Luggage Compartment, Loadspace and Storage
