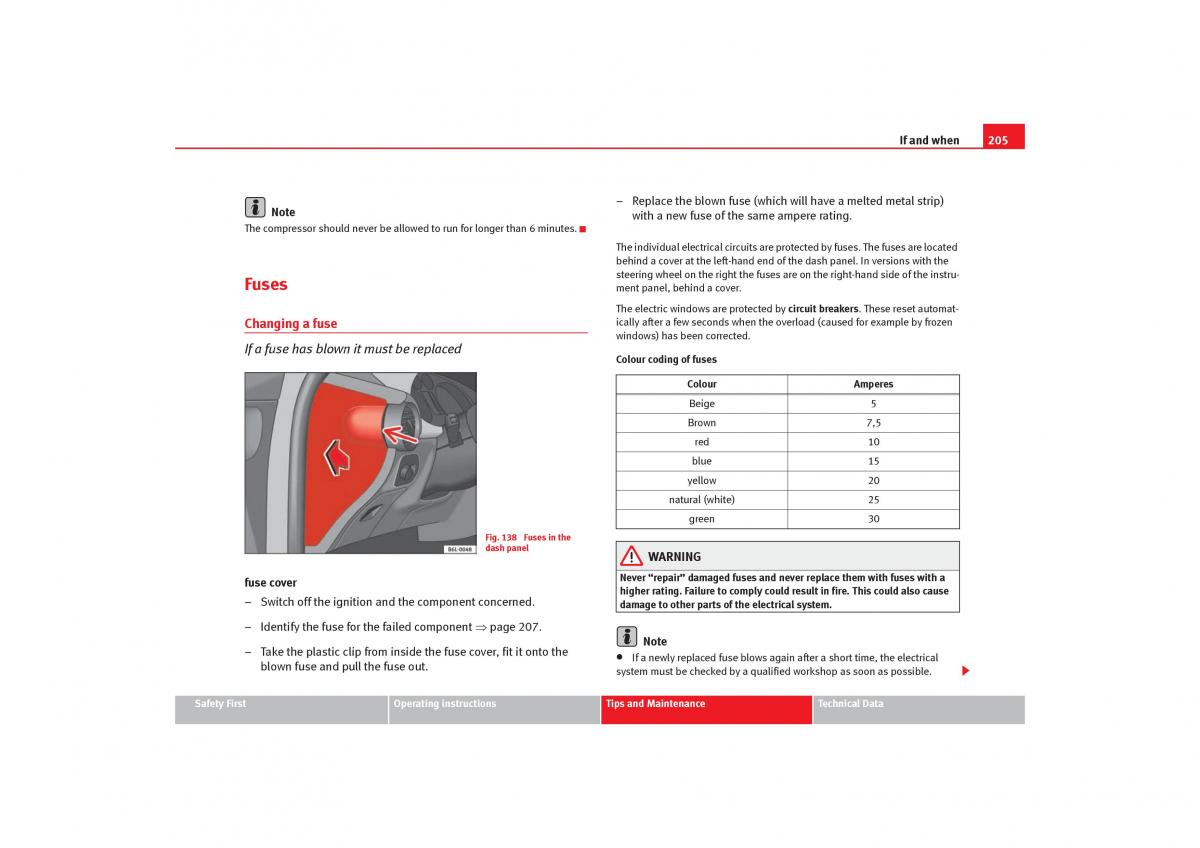

COR_ING_0707 Seite 205 Mittwoch, 1. August 2007 6:25 18
If and when205
– Replace the blown fuse (which will have a melted metal strip)
Note with a new fuse of the same ampere rating.
The compressor should never be allowed to run for longer than 6 minutes.
The individual electrical circuits are pr otected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel. In versions with the
Fuses steering wheel on the right the fuses are on the right-hand side of the instru-
ment panel, behind a cover.
The electric windows are protected by circuit breakers. These reset automat-
Changing a fuse ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
If a fuse has blown it must be replaced
Colour coding of fuses
Colour Amperes
Beige 5
Brown 7,5
red 10
blue 15
yellow 20
natural (white) 25
green 30
Fig. 138 Fuses in the
dash panel WARNING
fuse cover Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
– Switch off the ignition and the component concerned.damage to other parts of the electrical system.
– Identify the fuse for the failed component ⇒ page 207.
– Take the plastic clip from inside the fuse cover, fit it onto the Note
blown fuse and pull the fuse out. • If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualified workshop as soon as possible.
Safety First Operating instructions Tips and Maintenance Technical Data
