text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 1997 - 2002:

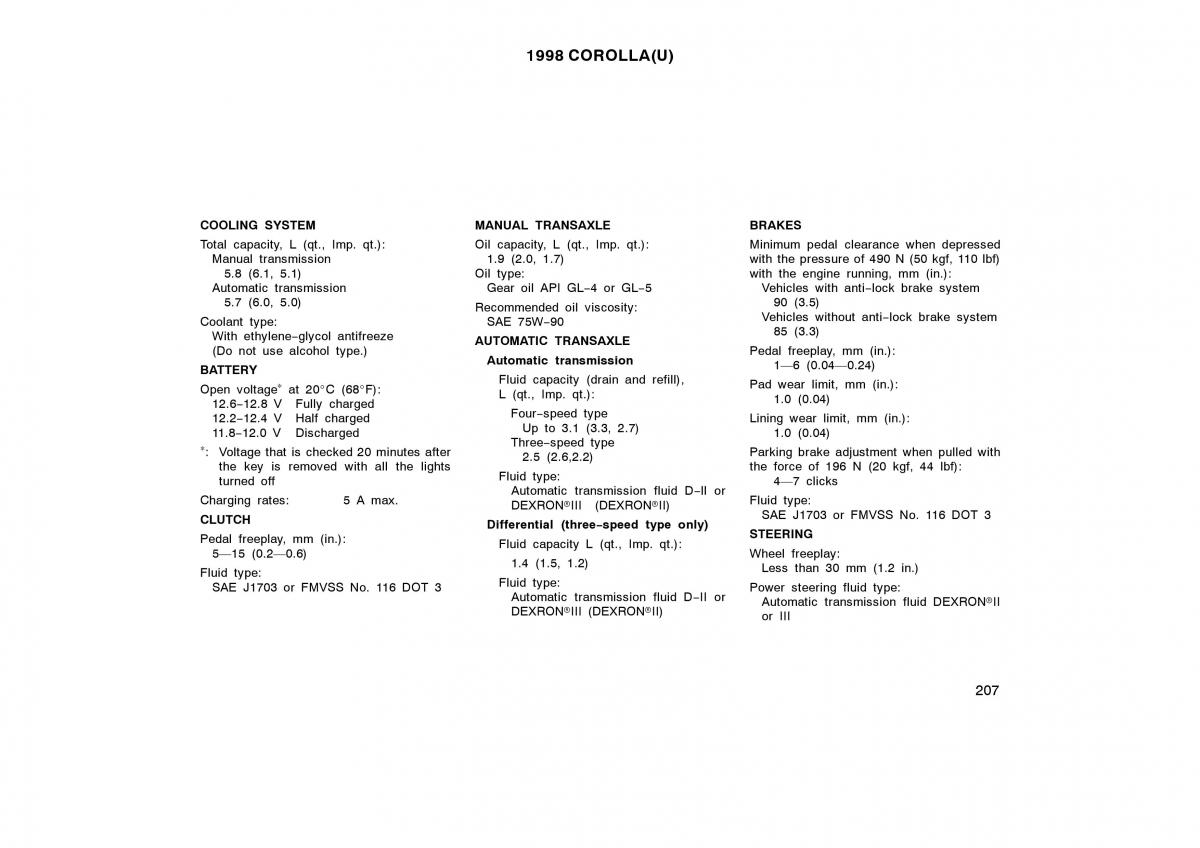

1998 COROLLA(U) COOLING SYSTEM MANUAL TRANSAXLE BRAKES Total capacity, L (qt., Imp. qt.): Oil capacity, L (qt., Imp. qt.): Minimum pedal clearance when depressed Manual transmission 1.9 (2.0, 1.7) with the pressure of 490 N (50 kgf, 110 lbf) 5.8 (6.1, 5.1) Oil type: with the engine running, mm (in.): Automatic transmission Gear oil API GL−4 or GL−5 Vehicles with ant−i lock brake system 5.7 (6.0, 5.0) Recommended oil viscosity: 90 (3.5) Coolant type: SAE 75W−90 Vehicles without ant−ilock brake system With ethylene−glycol antifreeze AUTOMATIC TRANSAXLE 85 (3.3) (Do not use alcohol type.) Automatic transmission Pedal freeplay, mm (in.): BATTERY 1—6 (0.04—0.24) Fluid capacity (drain and refill), Pad wear limit, mm (in.): ∗ Open voltage at 20C (68F): L (qt., Imp. qt.): 1.0 (0.04) 12.6−12.8 V Fully charged Four−speed type 12.2−12.4 V Half charged Up to 3.1 (3.3, 2.7) Lining wear limit, mm (in.): 11.8−12.0 V Discharged Three−speed type 1.0 (0.04) ∗:Voltage that is checked 20 minutes after 2.5 (2.6,2.2) Parking brake adjustment when pulled with the key is removed with all the lightsFluid type: the force of 196 N (20 kgf, 44 lbf): turned off Automatic transmission fluid D−ll or4—7 clicks Charging rates: 5 A max. DEXRONIII (DEXRONII) Fluid type: CLUTCH Differential (three−speed type only) SAE J1703 or FMVSS No. 116 DOT 3 Pedal freeplay, mm (in.): Fluid capacity L (qt., Imp. qt.): STEERING 5—15 (0.2—0.6) 1.4 (1.5, 1.2) Wheel freeplay: Fluid type: Less than 30 mm (1.2 in.) SAE J1703 or FMVSS No. 116 DOT 3 Fluid type: Power steering fluid type: Automatic transmission fluid D−II orAutomatic transmission fluid DEXRONII DEXRONIII (DEXRONII) or III 207
