VW CC owners manual page 207

text version of content this owner's manual page from owners manual to the vehicle VW CC, year of production 2012:

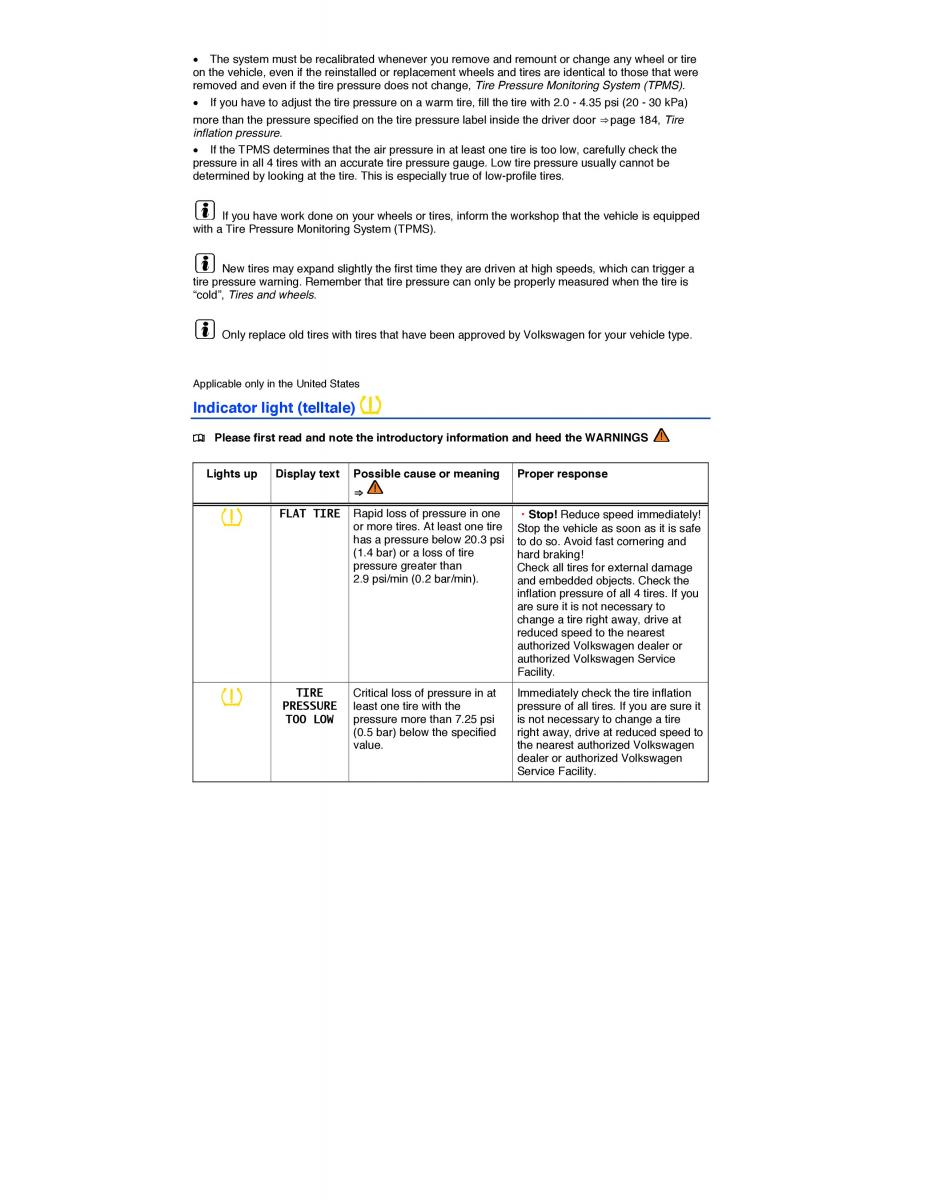

x The system must be recalibrated whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change, Tire Pressure Monitoring System (TPMS). x If you have to adjust the tire pressure on a warm tire, fill the tire with 2.0 - 4.35 psi (20 - 30 kPa) more than the pressure specified on the tire pressure label inside the driver door ⇒ page 184, Tire inflation pressure. x If the TPMS determines that the air pressure in at least one tire is too low, carefully check the pressure in all 4 tires with an accurate tire pressure gauge. Low tire pressure usually cannot be determined by looking at the tire. This is especially true of low-profile tires. If you have work done on your wheels or tires, inform the workshop that the vehicle is equipped with a Tire Pressure Monitoring System (TPMS). New tires may expand slightly the first time they are driven at high speeds, which can trigger a tire pressure warning. Remember that tire pressure can only be properly measured when the tire is “cold”, Tires and wheels. Only replace old tires with tires that have been approved by Volkswagen for your vehicle type. Applicable only in the United States Indicator light (telltale) ¤ Please first read and note the introductory information and heed the WARNINGS Lights up Display text Possible cause or meaning Proper response ⇒ FLAT TIRE Rapid loss of pressure in one ࣭Stop! Reduce speed immediately! or more tires. At least one tire Stop the vehicle as soon as it is safe has a pressure below 20.3 psi to do so. Avoid fast cornering and (1.4 bar) or a loss of tire hard braking! pressure greater than Check all tires for external damage 2.9 psi/min (0.2 bar/min). and embedded objects. Check the inflation pressure of all 4 tires. If you are sure it is not necessary to change a tire right away, drive at reduced speed to the nearest authorized Volkswagen dealer or authorized Volkswagen Service Facility. TIRE Critical loss of pressure in at Immediately check the tire inflation PRESSURE least one tire with the pressure of all tires. If you are sure it TOO LOW pressure more than 7.25 psi is not necessary to change a tire (0.5 bar) below the specified right away, drive at reduced speed to value. the nearest authorized Volkswagen dealer or authorized Volkswagen Service Facility.
