text version of content this owner's manual page from owners manual to the vehicle Mercedes E, year of production 2009:

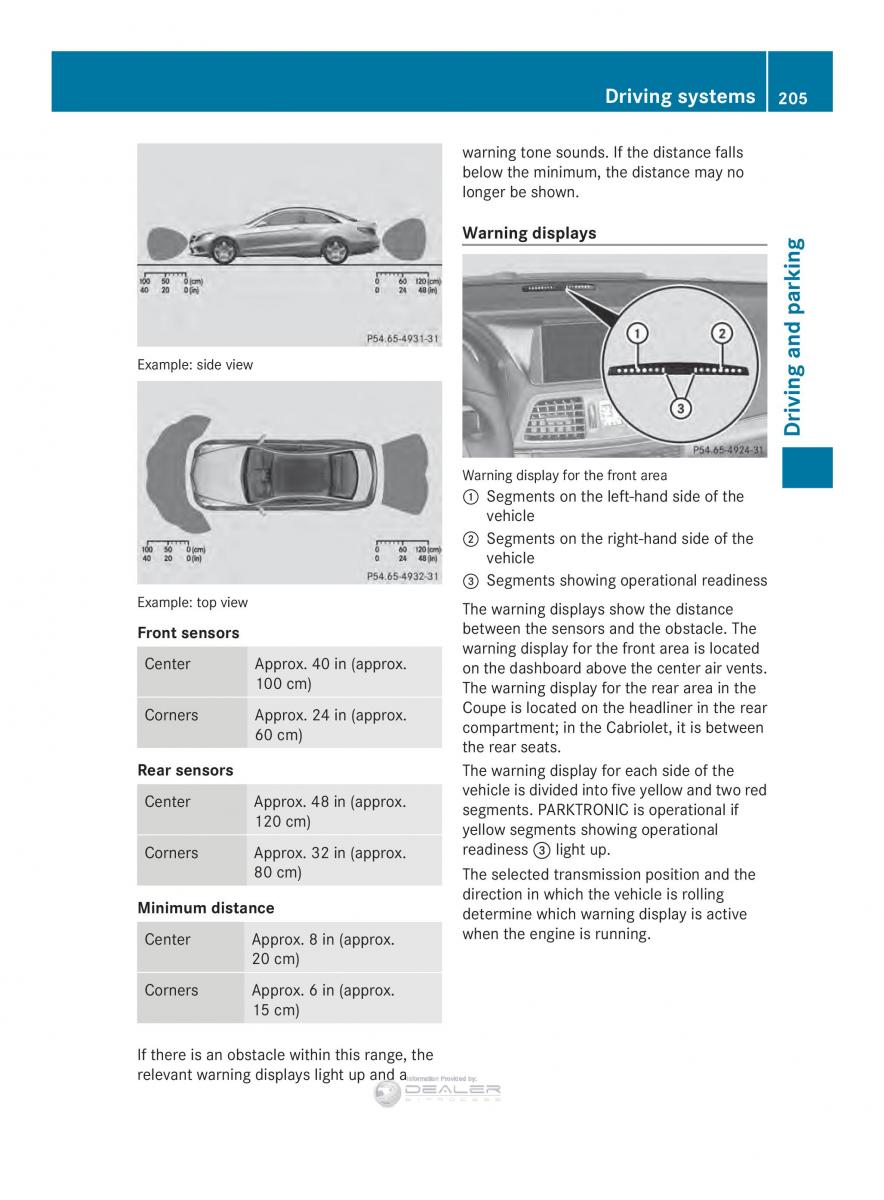

Driving systems
205
warning tone sounds. If the distance falls
below the minimum, the distance may no
longer be shown.
Warning displays
Example: side view
parking
and
Driving
Warning display for the front area
: Segments on the left-hand side of the
vehicle
; Segments on the right-hand side of the
vehicle
= Segments showing operational readiness
Example: top view
The warning displays show the distance
between the sensors and the obstacle. The
Front sensors
warning display for the front area is located
Center Approx. 40 in (approx.
on the dashboard above the center air vents.
100 cm )
The warning display for the rear area in the
Coupe is located on the headliner in the rear
Corners Approx. 24 in (approx.
compartment; in the Cabriolet, it is between
60 cm)
the rear seats.
Rea rs ensors The warning display for each side of the
vehicle is divided into five yellow and two red
Center Approx. 48 in (approx.
segments. PARKTRONIC is operational if
120 cm)
yellow segments showing operational
readiness = light up.
Corners Approx. 32 in (approx.
80 cm)
The selected transmission position and the
direction in which the vehicle is rolling
Minimum distance
determine which warning display is active
when the engine is running.
Center Approx .8i n (approx.
20 cm)
Corners Approx .6i n (approx.
15 cm)
If there is an obstacle withi nt his range, the
relevant warning displays light up and a
Z
