text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2008:

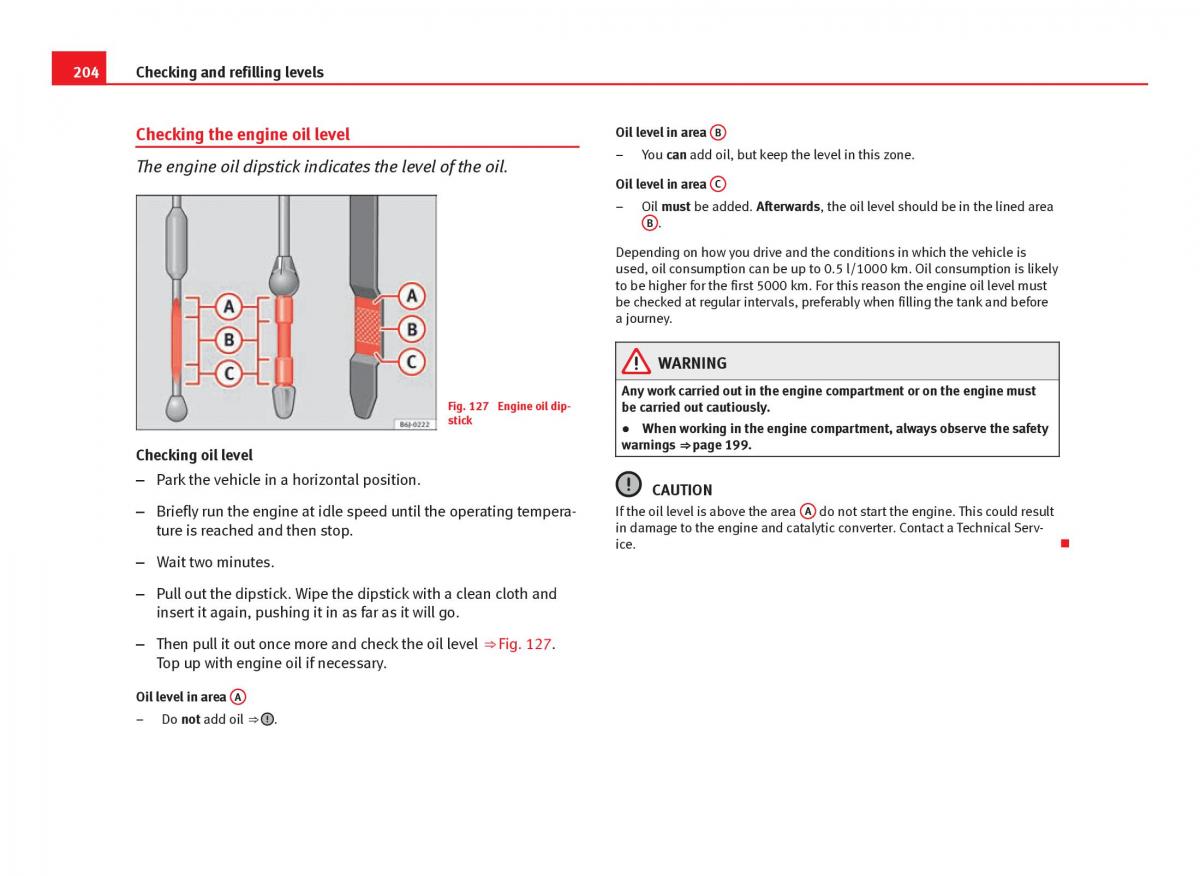

204 Checking and refilling levels Oil level in area B Checking the engine oil level – You can add oil, but keep the level in this zone. The engine oil dipstick indicates the level of the oil. Oil level in area C – Oil must be added. Afterwards, the oil level should be in the lined area B . Depending on how you drive and the conditions in which the vehicle is used, oil consumption can be up to 0.5 l/1000 km. Oil consumption is likely to be higher for the first 5000 km. For this reason the engine oil level must be checked at regular intervals, preferably when filling the tank and before a journey. WARNING Any work carried out in the engine compartment or on the engine must Fig. 127 Engine oil dip- be carried out cautiously. stick ● When working in the engine compartment, always observe the safety warnings ⇒ page 199. Checking oil level – Park the vehicle in a horizontal position. CAUTION If the oil level is above the area A do not start the engine. This could result – Briefly run the engine at idle speed until the operating tempera- in damage to the engine and catalytic converter. Contact a Technical Serv- ture is reached and then stop.  ice. – Wait two minutes. – Pull out the dipstick. Wipe the dipstick with a clean cloth and insert it again, pushing it in as far as it will go. – Then pull it out once more and check the oil level ⇒ Fig. 127. Top up with engine oil if necessary. Oil level in area A – Do not add oil ⇒ .
