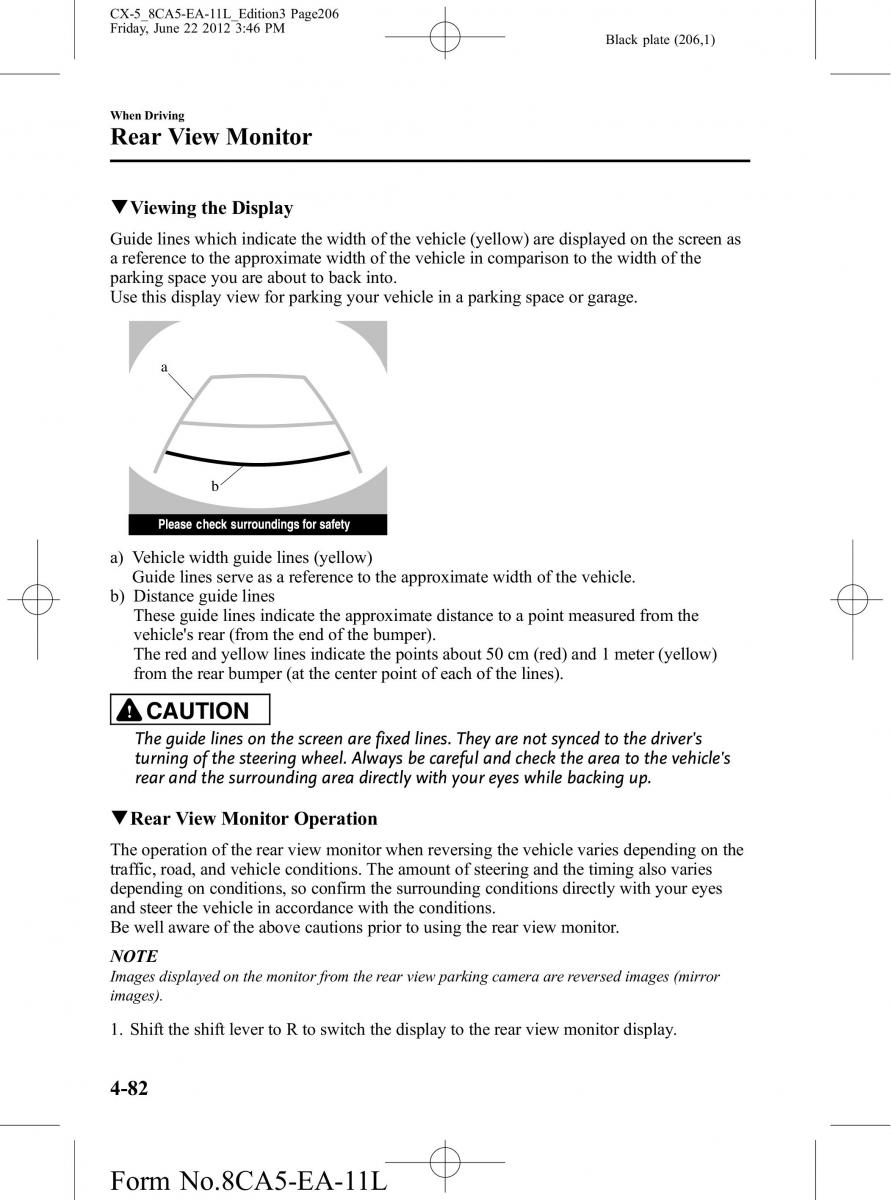

CX-5_8CA5-EA-11L_Edition3 Page206 Friday, June 22 2012 3:46 PM Black plate (206,1) WhenDriving RearViewMonitor qViewingtheDisplay Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a reference to the approximate width of the vehicle in comparison to the width of the parking space you are about to back into. Usethis display view for parking your vehicle in a parking space or garage. a b a) Vehicle width guide lines (yellow) Guide lines serve as a reference to the approximate width of the vehicle. b) Distance guide lines These guide lines indicate the approximate distance to a point measured from the vehicle's rear (from the end of the bumper). Thered and yellow lines indicate the points about 50 cm (red) and 1 meter (yellow) from the rear bumper (at the center point of each of the lines). CAUTION The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding area directly with your eyes while backing up. qRearViewMonitorOperation Theoperation of the rear view monitor when reversing the vehicle varies depending on the traffic, road, and vehicle conditions. The amount of steering and the timing also varies depending on conditions, so confirm the surrounding conditions directly with your eyes and steer the vehicle in accordance with the conditions. Bewellawareoftheabovecautions prior to using the rear view monitor. NOTE Images displayed on the monitor from the rear view parking camera are reversed images (mirror images). 1. Shift the shift lever to R to switch the display to the rear view monitor display. 4-82 Form No.8CA5-EA-11L
