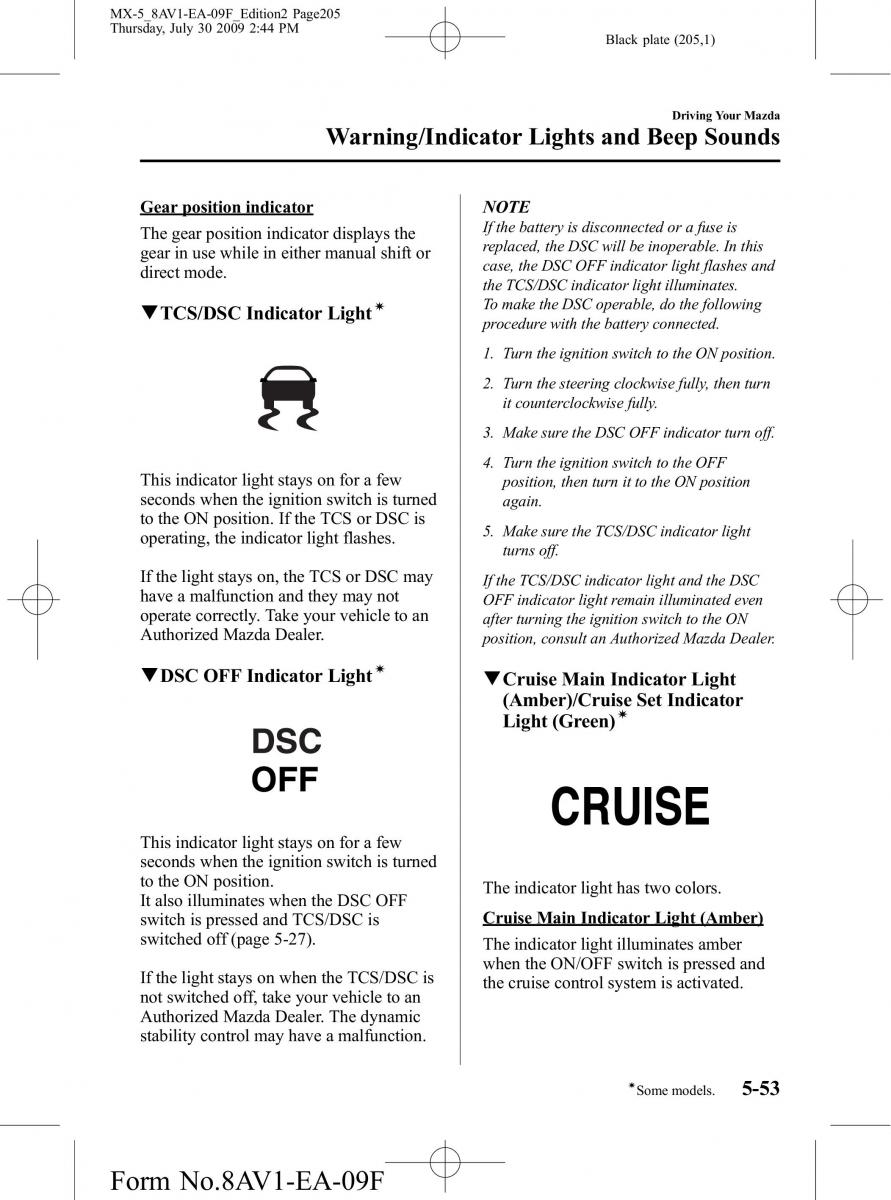

MX-5_8AV1-EA-09F_Edition2 Page205
Thursday, July 30 2009 2:44 PM
Black plate (205,1)
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Gearposition indicator NOTE
Thegear position indicator displays the If the battery is disconnected or a fuse is
gear in use while in either manual shift or replaced, the DSC will be inoperable. In this
direct mode. case, the DSC OFF indicator light flashes and
the TCS/DSC indicator light illuminates.
qTCS/DSCIndicatorLightí To make the DSC operable, do the following
procedure with the battery connected.
1. Turn the ignition switch to the ON position.
2. Turn the steering clockwise fully, then turn
it counterclockwise fully.
3. Make sure the DSC OFF indicator turn off.
4. Turn the ignition switch to the OFF
This indicator light stays on for a few position, then turn it to the ON position
seconds when the ignition switch is turned again.
to the ON position. If the TCS or DSC is 5. Make sure the TCS/DSC indicator light
operating, the indicator light flashes. turns off.
If the light stays on, the TCS or DSC may If the TCS/DSC indicator light and the DSC
have a malfunction and they may not OFFindicator light remain illuminated even
operate correctly. Take your vehicle to an after turning the ignition switch to the ON
Authorized Mazda Dealer. position, consult an Authorized Mazda Dealer.
qDSCOFFIndicatorLightí qCruiseMainIndicatorLight
(Amber)/Cruise Set Indicator
Light (Green)í
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. Theindicator light has two colors.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is Cruise Main Indicator Light (Amber)
switched off (page 5-27). Theindicator light illuminates amber
If the light stays on when the TCS/DSC is whentheON/OFFswitchispressedand
the cruise control system is activated.
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
í
Somemodels. 5-53
Form No.8AV1-EA-09F
