owners manual Mazda CX-5

owners manual Mazda CX-5 - year of production: 2017 - Mazda CX 5 II 2 owners manual EN

Document: pdf (12.31 MB) 664 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2017:

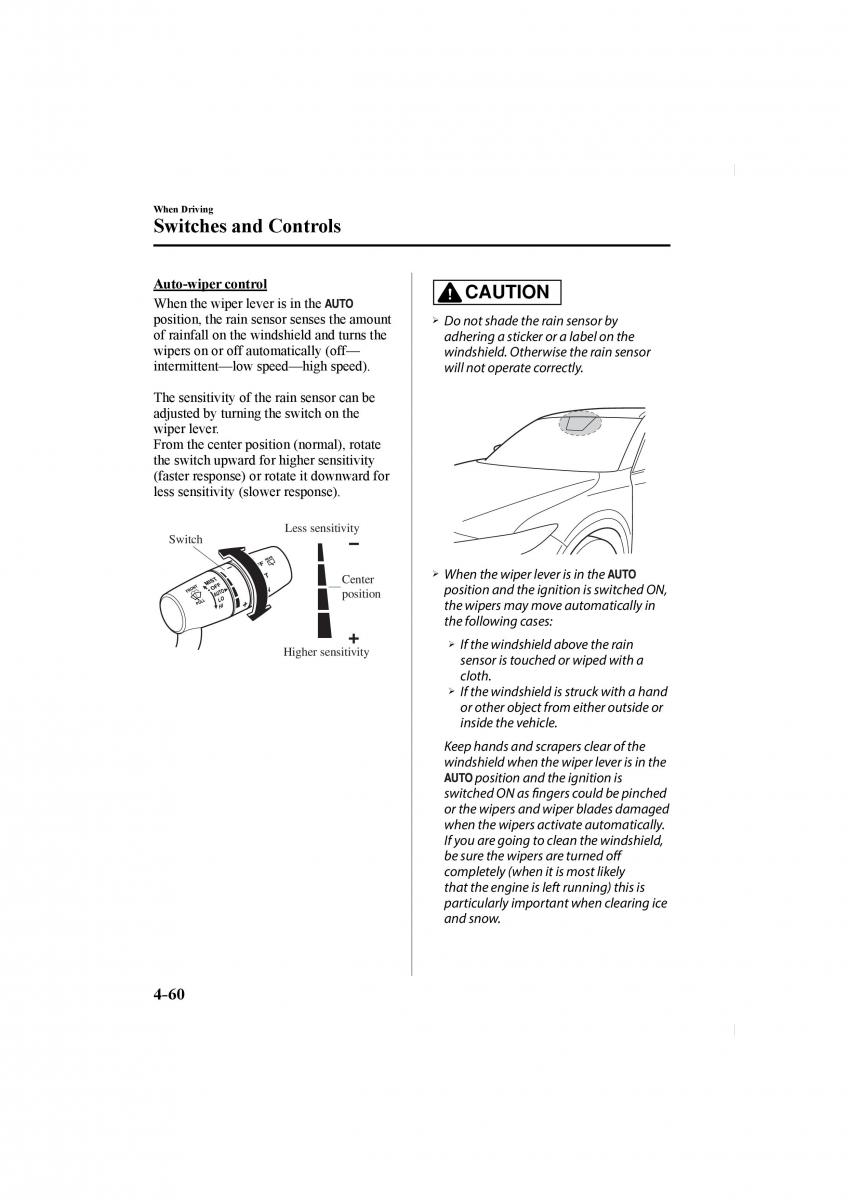

When Driving Switches and Controls Auto-wiper control CAUTION When the wiper lever is in the position, the rain sensor senses the amount  Do not shade the rain sensor by of rainfall on the windshield and turns the adhering a sticker or a label on the wipers on or off automatically (off— windshield. Otherwise the rain sensor intermittent—low speed—high speed). will not operate correctly. The sensitivity of the rain sensor can be adjusted by turning the switch on the wiper lever. From the center position (normal), rotate the switch upward for higher sensitivity (faster response) or rotate it downward for less sensitivity (slower response). Less sensitivity Switch  Center When the wiper lever is in the position position and the ignition is switched ON, the wipers may move automatically in the following cases:  Higher sensitivity If the windshield above the rain sensor is touched or wiped with a cloth.  If the windshield is struck with a hand or other object from either outside or inside the vehicle.  Keep hands and scrapers clear of the windshield when the wiper lever is in the position and the ignition is switched ON as i ngers could be pinched or the wipers and wiper blades damaged when the wipers activate automatically.  If you are going to clean the windshield, be sure the wipers are turned of completely (when it is most likely that the engine is left running) this is particularly important when clearing ice and snow. 4–60 CX-5_8FN1-EA-16L_Edition1.indb 60 2016/12/12 10:05:57

Download PDF

Click here to download a pdf file with an instruction manual for Mazda CX-5
year of production from: 2017

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Mazda CX 5 II 2 owners manual
pages 201 - 207

Mazda CX 5 II 2 owners manual
page 204 / 664

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Mazda CX 5 II 2 owners manual / page 204
