owners manual Peugeot 308

owners manual Peugeot 308 - year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013 - Peugeot 308 SW I 1 manuale del proprietario IT

Document: pdf (40.87 MB) 356 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Peugeot 308, year of production 2007 - 2013:

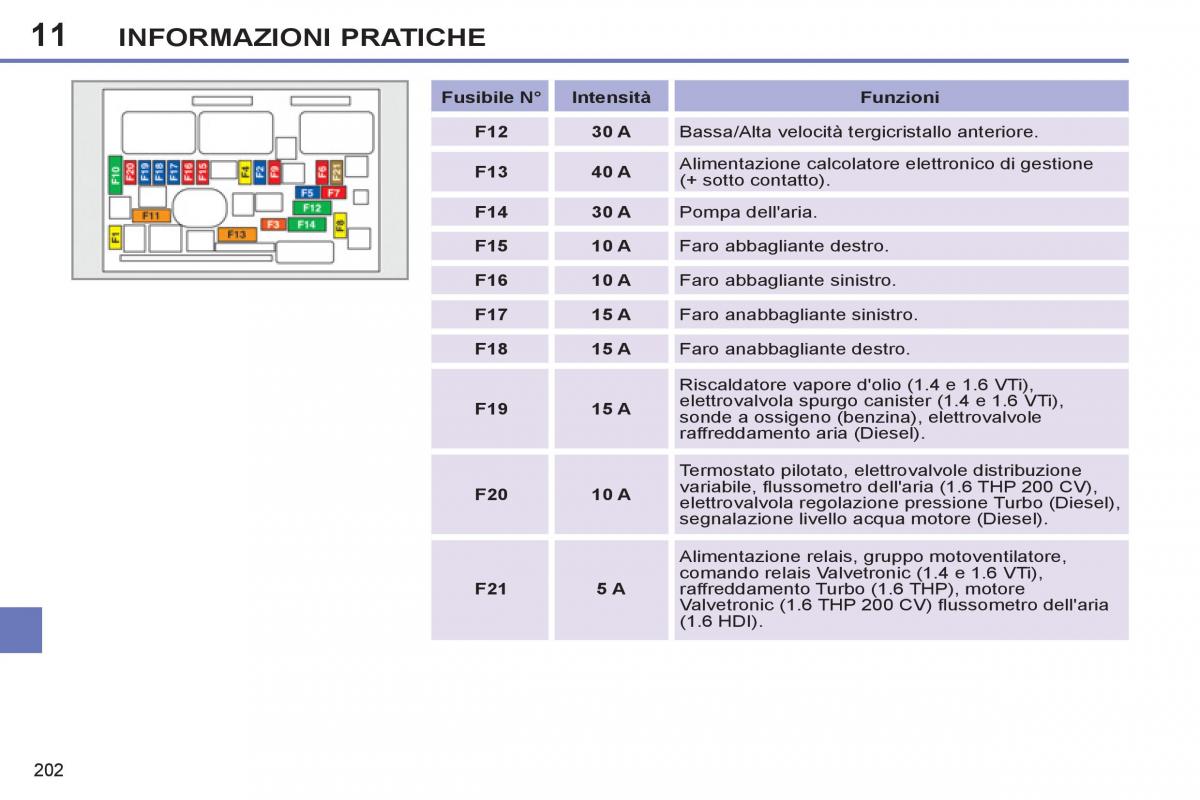

11 INFORMAZIONI PRATICHE Fusibile N° Intensità Funzioni F12 30 A Bassa/Alta velocità tergicristallo anteriore. Alimentazione calcolatore elettronico di gestione F13 40 A (+ sotto contatto). F14 30 A Pompa dell'aria. F15 10 A Faro abbagliante destro. F16 10 A Faro abbagliante sinistro. F17 15 A Faro anabbagliante sinistro. F18 15 A Faro anabbagliante destro. Riscaldatore vapore d'olio (1.4 e 1.6 VTi), elettrovalvola spurgo canister (1.4 e 1.6 VTi), F19 15 A sonde a ossigeno (benzina), elettrovalvole raffreddamento aria (Diesel) . Termostato pilotato, elettrovalvole distribuzione variabile, ﬂ ussometro dell'aria (1.6 THP 200 CV), F20 10 A elettrovalvola regolazione pressione Turbo (Diesel), segnalazione livello acqua motore (Diesel). Alimentazione relais, gruppo motoventilatore, comando relais Valvetronic (1.4 e 1.6 VTi), F21 5 A raffreddamento Turbo (1.6 THP), motore Valvetronic (1.6 THP 200 CV) ﬂ ussometro dell'aria (1.6 HDI). 202

Download PDF

Click here to download a pdf file with an instruction manual for Peugeot 308
year of production from: 2007

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Peugeot 308 SW I 1 manuale del proprietario
pages 201 - 207

Peugeot 308 SW I 1 manuale del proprietario
page 204 / 356

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Peugeot 308 SW I 1 manuale del proprietario / page 204
