owners manual Ford Focus

all ratings: 0 average rating: 5

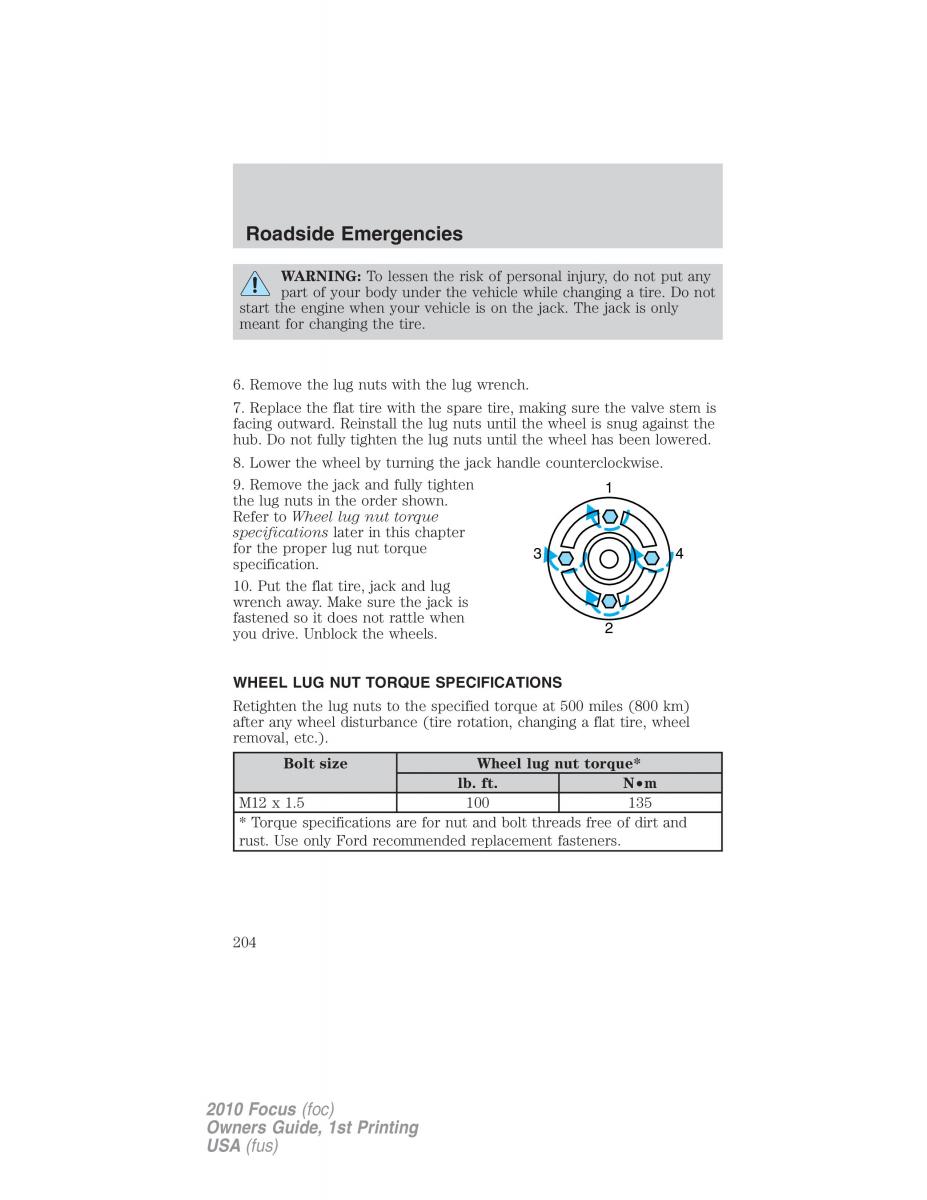

Roadside Emergencies WARNING:Tolessen the risk of personal injury, do not put any part of your body under the vehicle while changing a tire. Do not start the engine when your vehicle is on the jack. The jack is only meant for changing the tire. 6. Remove the lug nuts with the lug wrench. 7. Replace the flat tire with the spare tire, making sure the valve stem is facing outward. Reinstall the lug nuts until the wheel is snug against the hub. Do not fully tighten the lug nuts until the wheel has been lowered. 8. Lower the wheel by turning the jack handle counterclockwise. 9. Remove the jack and fully tighten1 the lug nuts in the order shown. Refer to Wheel lug nut torque specifications later in this chapter for the proper lug nut torque34 specification. 10. Put the flat tire, jack and lug wrench away. Make sure the jack is fastened so it does not rattle when2 you drive. Unblock the wheels. WHEELLUGNUTTORQUESPECIFICATIONS Retighten the lug nuts to the specified torque at 500 miles (800 km) after any wheel disturbance (tire rotation, changing a flat tire, wheel removal, etc.). Bolt size Wheel lug nut torque* lb. ft. N•m M12 x 1.5 100 135 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. 204 2010 Focus (foc) Owners Guide, 1st Printing USA(fus)
